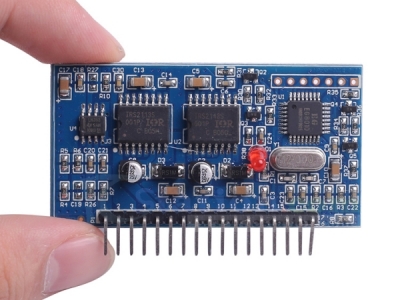

Sine Wave Inverter Driver Board EGS002 EG8010+IR2110 Drive Module

5 9
$9.99 $6.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
  It is a pure sine wave inverte.
  EG8010 is a digital and fully functional pure sine wave inverter generator chip with dead zone control.
  It is used in DC-DC-AC two-stage power conversion architecture or DC-AC single-stage power frequency transformer boost conversion The architecture,with an external 12MHz crystal oscillator,can realize a pure sine wave 50Hz or 60Hz inverter chip with high precision,low distortion and harmonics.
  1).It comes with dead zone control,and the pin sets 4 kinds of dead zone time:300nS dead zone time 500nS dead zone time 1.0uS dead zone time 1.5uS dead zone time.
  2).It adopts unipolar and bipolar modulation methods.
  3).It has an external 12MHz crystal oscillator
  4).It uses a PWM carrier frequency of 23.4KHz.
  5).Its voltage,current and temperature can be processed in real time.
  6).It has overvoltage,undervoltage,overcurrent,and overheat protection functions.
  7).Its pin sets the response time of 1S in soft-start mode.
  8).It can set output voltage,frequency and other parameters through serial communication.
  1).Product Name:Pure Sine Wave Inverte
  2).Supply Voltage:DC 5V
  3).Output Frequency:50Hz/60Hz/0-100Hz/0-400Hz
  4).Output Voltage:AC 187V(Max)
  5).Work Temperature:-25℃~85℃
  6).Work Humidity:5%~95%RH
4.Sine Wave Output Frequency:
  1).50Hz pure sine wave fixed frequency
  2).60Hz pure sine wave fixed frequency
  3).0-100Hz pure sine wave frequency adjustable
  4).0-400Hz pure sine wave frequency adjustable
  1).Single phase pure sine wave inverter
  2).Photovoltaic power inverter
  3).Wind power inverter
  4).Uninterruptible power supply UPS system
  5).Digital generator system
  6).Intermediate frequency power supply
  7).Single-phase motor speed controller
  8).Single-phase inverter
  9).Sine wave dimmer
  10).Sine wave regulator
  11).Sine wave generator
  1pcs Sine Wave Inverte
