DC to DC Step Down Buck Converter 5V-30V to 0.8V-29V 5A Constant Current Constant Voltage Meter Power Supply Charger Module

2455
5 2
$8.35 $5.85 (only 86 pcs )
Quantity5+10+20+
Price$7.99$7.35$6.99
Time Remaining:
- OR - Add to Wish List
Description:
  • Module Properties:Non-isolated step-down module
  • Rectification:Non-Synchronous Rectification
  • Input Voltage:DC 5V-30V
  • Output Voltage:DC 0.8V-29V
  • Output Current:Max 5A (over 3A to enhance heat dissipation)
  • Conversion efficiency:95% (the highest)
  • Switching frequency:300KHz
  • Output Ripple:50mV (max) 20M Bandwidth
  • Load Regulation:+/-0.5%
  • Voltage Regulation:+/-2.5%
  • Operating Temperature:-40℃ to +85℃
  • Size:51*26.3*14 (L*W*H)(mm)
  • Module Name:Current and voltage table
  • Measurement Accuracy:0.1%
  • Refresh rate:About 200ms time
  • Display:Dual 4bits 0.28" digital tube
  • Current Range:0A-5A
  • Voltage range:5V-30V
  • Operating Current:Less than 15mA
  • Display Color:Red
  • Storage Temperature:-10℃ to +65℃
  • Input impedance:50 milliohms
  • External dimensions:51*26.3*10mm
  • Rechargeable lithium-ion battery

When the lithium-ion battery voltage is relatively low, if the direct use of constant voltage charging, the voltage difference due to the larger, leading the charge current is too large, resulting in damage to the battery, so when you want to start using the constant battery current charging, when the charge to a certain extent automatically switches back when the constant voltage charging.

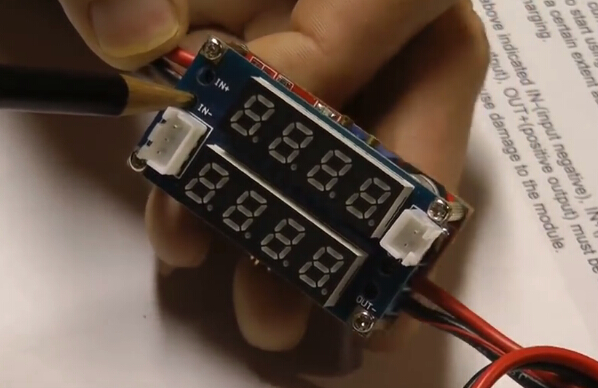

Module above indicated IN-(input negative), IN+(positive input), OUT-(negative output), OUT+(positive output) must be connected to the right, otherwise may cause damage to the module.

Tested by ICStation's Outstanding Partner DadHav:




While Charging, the Indicator Blue light is ON, Red light is OFF.


While Full Charged, the indicator Red light is ON, Blue light is OFF.


Learn More Details in the Video:

Reviewed by ICStation's Partner Ryan Bates:

Quantity5+10+20+
Price$7.99$7.35$6.99

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2017-07-07 21:21:56
Nice Buck Converter, meter is amazingly accurate for this price point.
By
Rating: [5] 5 of 5 Stars! Date Added: 2015-09-07 09:19:32
This is a great little converter that is very accurate. I charge my project battery with it then simply turn it around and run my project with the proper voltage required and set the current limiting for protection. See my in depth description and operation of the device here: https://www.youtube.com/watch?v=3WJVHM5RE00
