Home > DIY Module > Power Amplifier DIY > ICStation TDA2030A DIY Kit 2.0 15W+15W Dual Channel Audio Amplifier Board Power Amplifier DIY Module

ICStation TDA2030A DIY Kit 2.0 15W+15W Dual Channel Audio Amplifier Board Power Amplifier DIY Module

4969
5 1
$6.99 $4.89
Quantity10+
Price$4.20
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$6.96-6%Bundled Price:$6.54

Description:

Pure power amp is simply the volume of the amplifier, without preamplifier circuit, audio input directly promote the pronunciation without any modification after speaker amplified sound authentic, pure and natural. The amplifier board is pretty sound using two classic ST's TDA2030 amplifier IC composed of pure power amp, single power supply, input voltage single supply AC 9V-15V, rational component layout, strong power (15Wx2), almost no static noise , an excellent sense of hearing, fewer external components, easy to install, very suitable for conversion or installation of home audio system, widely used in a variety of speakers.

Principle Description:
The power amplifier IC TDA2030 amplifier board is composed of the center, component layout is reasonable, almost no static noise, high fidelity, low distortion, fewer external components, assembly is simple, big power 15W + 15W), etc., suitable for electronic enthusiasts and audiophiles DIY, student assembly.


Circuit for rectifying diode D, C11 for the filter capacitor, C12, C13 for high frequency decoupling capacitors; RP for volume control potentiometer; IC1, IC2 is a two-channel amplifier IC; R1, R2, R3, C1 (R7, R8, R9, C6) for the bias circuit amplifier IC input, as the circuit is a single supply, power amplifier IC when the input DC voltage to half the supply voltage circuit to work properly; R4, R5, C3 (R10 , R11, C8) form a negative feedback loop, change R4 (R10) can change the size of the feedback coefficients. C2 (C7) is the input coupling capacitor, C4 (C9) is the output coupling capacitor; when the circuit is connected with inductive load speaker, R6, C5 (R12, C10) ensures high frequency stability.

Performance Parameters:
Input voltage: AC9-15V or DC9-15V (DC input note to distinguish between sub-polar, AC input, regardless of polarity)
Output power: Po = 15W + 15W (RL = 4Ω)
Output impedance: 4-8 Ω
PCB Size: 66x56mm, thickness: 1.6mm, Material: FR-4

Package Listing:

serial number
components
Label
Value
Number
1
Electrolytic capacitor (50V/47UF)
C1, C3, C6, C8
47UF
4
2
Electrolytic capacitor (50V/4.7UF)
C2, C7
4.7UF
2
3
Electrolytic capacitor (25V/1000UF)
C4, C9
1000UF
2
4
Ceramics capacitors
C5, C10, C12, C13
104
4
5
Electrolytic capacitor (25V/2200UF)
C11
2200UF
1
6
B50K  Double-click the associated potentiometer
C14

1
7
1N4007
D1

1
8
5mm red LED
D2

1
9
XH2.54-2P
J1

1
10
KF301-2P
J2, J3

2
11
Headphone seat
J4

1
12
Resistance
R1, R2, R3, R5, R7, R8, R9, R11
100K
8
13
Resistance
R4, R10, R13
4.7K
3
14
Resistance
R6, R12
18
2
15
TD2030A
U1, U2

2
16
23*16*25   Fin


2
17
3*6  Screws


2

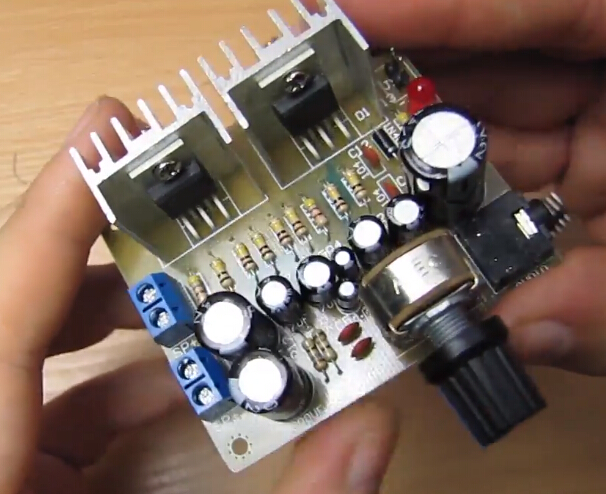

1. Tested by ICStation's Outstanding Partner arduinoLab:

Learn More Details in the Video:
(The language in the video is Russian)



2. New! Tested by ICStation's Outstanding Partner Onlykit:

Learn More Details in the Video:
(The language in the video is Russian)

Quantity10+
Price$4.20

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2017-10-25 22:34:18
Excellent amp, the sound is clear, the entire amplifier is almost not heated. Recommended.
