Introduction:
There is a 16 mm wide black runway in the white field. Our tracking car can drive along the black runway automatically. No matter how the runway is bent, the car can be driven automatically.

Reflectivity is different when the light source to the white objects and black objects. Here we use red light source, the light is reflected through the ground to the photoresistor.

By detecting the resistance of the photosensitive resistor can determine whether the car is driving in the white area. If the detection is black runway, then the car to change the direction of driving and motor will slow down or even stop and Red LED OFF on PCB front side. Drive the car in the opposite direction so that the car is always running along the runway.

Parameter:
1. Model: D2-1
2. Name: D2-1 Intelligent Tracking Car DIY Kit
3. PCB Size:105x72x1.6mm
4. Installation dimension:105x85x46mm
5. Work Voltage:3V

Wiring instruction:

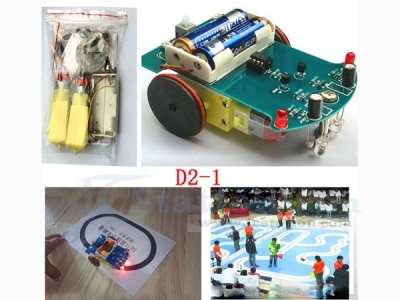

Finished Kit for reference:
NOTE: Package does not contain battery, the picture is only for the demonstration effect:)
Download the User Manual Here:

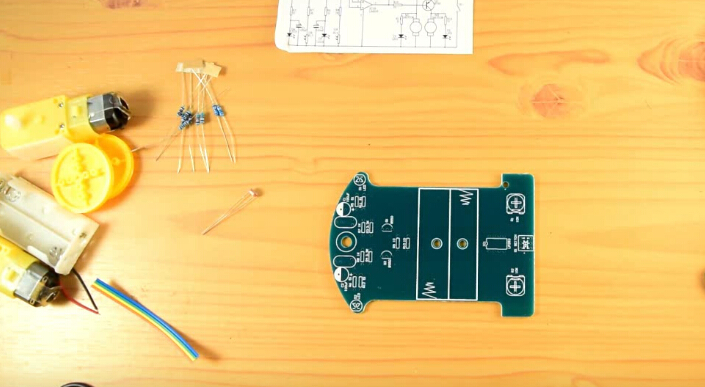

Packing List:

NO. Components Specification Quantity
1 Voltage Comparator LM393 1
2 IC Socket 8-pin 1
3 Electrolytic Capacitor 100uF 2
4 Adjustable Resistor 10K 2
5 Color Ring Resistor 3.3K ohm 2
6 Color Ring Resistor 51 ohm 4
7 Color Ring Resistor 1K ohm 2
8 Color Ring Resistor 10 ohm 2
9 Photoresistor CDS5 2
10 LED 3mm 2
11 LED 5mm 2
12 Triode 8550 2
13 Switch   1
14 Reduction Motor JD3-100 2
15 Car Wheel Piece   6
16 Silica Gel 25*2.5mm 2
17 Car Wheel Screw M3x10mm 4
18 Car Wheel Screw Nut M3 4
19 Hub Screw M2.2*7mm 2
20 Universal Wheel Screw M5x30mm 1
21 Universal Wheel Screw Nut M5 1
22 Universal Wheel M5 1
23 PCB D2-1 1
24 Connection Wire Red 1
25 Connection Wire Black 1
26 Battery Case AAx2 1

I. Tested by ICStation's Outstanding Customer arduinoLab and Vitrum UP:




Learn More Details in the Video:
(The language in the video is Russian)



II. Tested by ICStation's Outstanding Partner The Unwanted Guy:

Learn More Details in the Video:
(The language in the video is English)



III. Tested by ICStation's Outstanding Partner Lanka Television:
