DC 5V 1.2A Mini 4mm Electromagnetic Lock Momentary Switch Electromagnetic Solenoid for Cabinet Shared Medical Equipment

GY20481
5 9
$7.99 $5.59
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Share
1.Description:

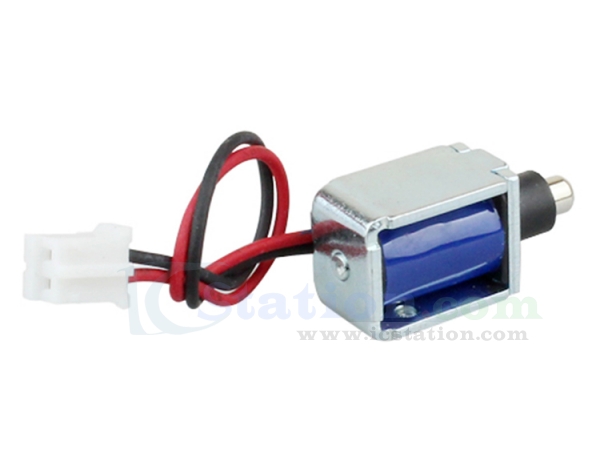

  It is a 5V electromagnetic lock.It retracts when powered and pops up when powered off.It is suitable for vending machines,express cabinets and more.

2.Feature:
  1).The frame and lock tongue are made of stainless iron,which is treated by electroplating process,which is more rust-proof and durable.
  2).It is small in size,low in power consumption,simple in structure and easy to install.
  3).The pure copper coil has a long service life,and the interior is wound with pure copper coil,and the service life is more than 500,000 times under rated working conditions.
  4).The lock tongue is made of high-quality materials with a surface electroplating process,which is smooth and burr-free,and the switch is smooth and not stuck.
  5).The electromagnetic lock has fixing holes,the thread is easy to install,and it is fixed with two 4-M2 screws.
  6).All-copper coils are used inside the electromagnetic lock,which is stable in heating and more heat-resistant.It is recommended that the power-on time be controlled within 0-3 seconds.

3.Parameter:
  1).Product Name:5V Electromagnetic Lock
  2).Working Voltage:DC 5V
  3).Working Current:1.2A
  4).Working Power:6W
  5).Power-on Time:<3s (can not power on for a long time)
  6).Working Status:power-on retract,power-off pop-up
  7).Lock Tongue Suction:30g (Max)
  8).Latch Stroke:4mm
  9).Work Temperature:-25℃~85℃
  10).Work Humidity:5%~95%RH
  11).Size:21*8.3*10mm

4.Note:
  1).The working principle of the solenoid valve is only suitable for jog switch,not suitable for long-term power-on pull-in and excessive frequent switching.
  2).Pulling in for a long time will easily cause the electric lock to become hot and burn the coil.Please use it as required.
  3).It is recommended that the power-on pull-in time be controlled within 0-5 seconds,and the switching interval should not be less than 3 minutes.

5.Package:
  1pcs 5V Electromagnetic Lock
