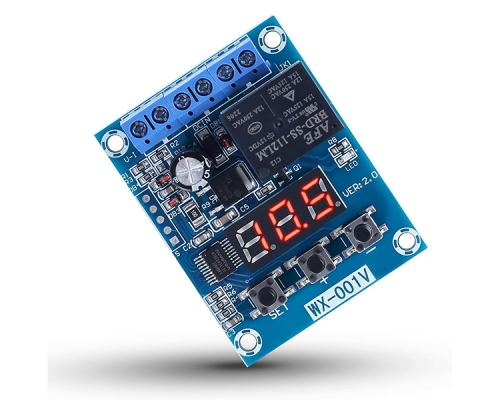

DC 12V-36V Charger Module Voltage Overdischarge Protection Undervoltage Protection Power Supply Module
$6.29$8.9930%
| Quantity | 10+ |
| Price | $3.95 |
00d : 00h : 00m : 00s
Item ID: 13098
Product Details
Parameters:
| No. | Parameter | Value |
| 1 | Product name | Battery overdischarge protection module |
| 2 | Model | XH - M609 (old version). The latest version is HCW-M635 |
| 3 | Power supply voltage | The 12 V- 36V battery |
| 4 | Output voltage | Equal to power supply voltage |
| 5 | Control precision | 0.1V |
| 6 | Power consumption | Less than 1.5W |
| 7 | Scope of application | Various storage batteries, lithium batteries |
| 8 | Net weight | 28g |
| 9 | Size | 57*42*19 mm |
Features:
1>. Automatic power off.
2>. Discharge protection.
3>. Prolong battery life.
Product Connection:
Product Size:
Customer Reviews (1)
-
By 2020-06-17 20:16:31
This module works pretty well. I have set it up to protect a 3s lithium polymer battery (minimum voltage 9v) and even though it's supposed to be minimum voltage 12v it works well with this setup. The left button controls the disconnect voltage and the right button how much greater than that it needs to be to reconnect. I advise a minimum of 0.5v with lithium battery to avoid short cycling and wearing out the relay too fast.
