DC 15-24V 15W MINI Music Tesla Coil Plasma Speaker Plasma Loudspeaker Tesla Wireless Transmission DIY Kits

$6.57

~~$9.39~~30%

Quantity	5+	10+
Price	$8.99	$8.49

00d : 00h : 00m : 00s

Item ID: 13034

Add to Cart

Share Facebook Google Pinterest VKontakte Reddit

Product Details

Description:

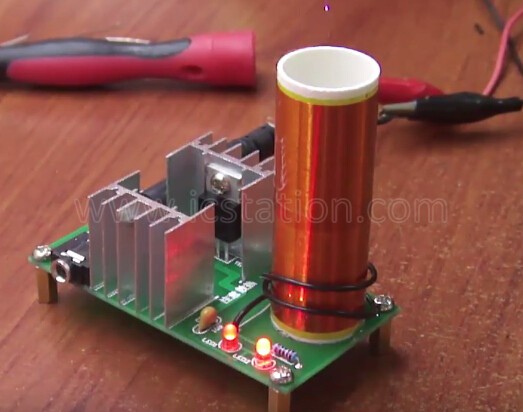

The Tesla coil can produce high temperature and high pressure plasma, which can sing, ignition, wireless transmission, and light fluorescent lamp. It has a wonderful arc. It is a very interesting small production of scientific experiments. This is DIY Tesla coil Kit, needs to be soldered and assembled by yourself.

Parameters:

1. PCB size: 4.0mm*8.0mm

2. Power: 15W

3. Power input: DC 15-24v. The current is 2A. DC5.5 interface / pin

4. Audio input: 3.5 socket, can be connected to mobile phone, MP3, computer audio

Principle Introduction:

Tesla coil is a transformer that operates on resonance principle. It was invented by Nicola Tesla, a Serbia American scientist in 1891. It is mainly used to produce ultra high voltage, but low current, high frequency AC power.

The Tesla coil is composed of two groups of resonant circuits (sometimes three groups) coupled. The Tesla coil is difficult to define, and Nicola Tesla has tried a large number of configurations of various coils.

Tesla uses these coils to carry out innovative experiments, such as electrical lighting, fluorescence spectrum, X ray, high frequency alternating current phenomenon, electrotherapy and radio energy transmission, transmitting and receiving radio signals.

Tesla Function:

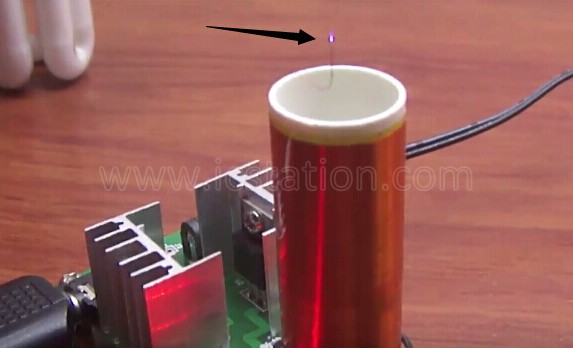

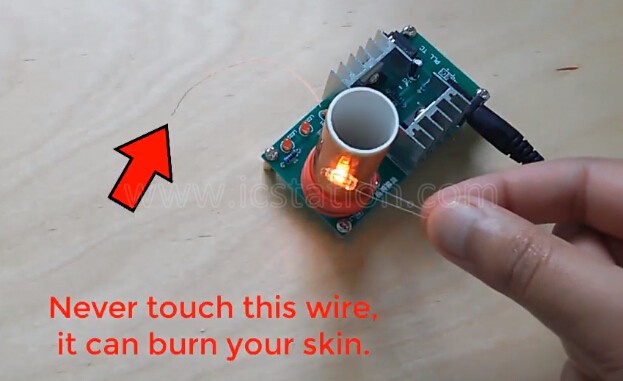

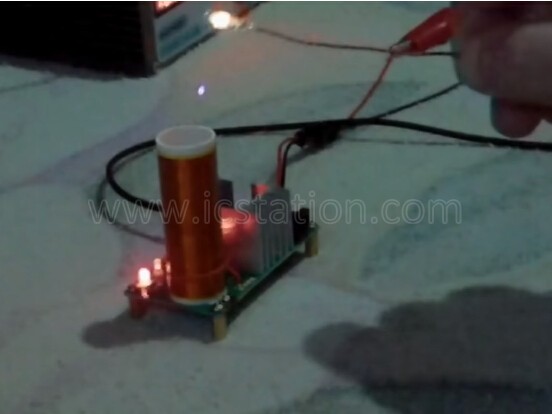

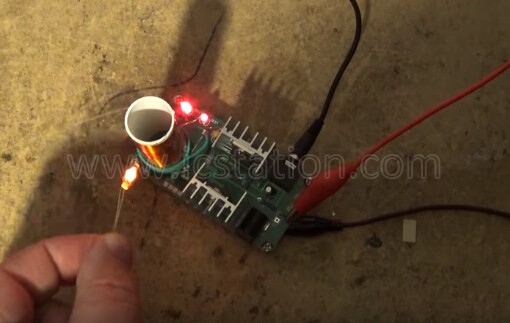

1. Electric arc function: the traverse of the rear end will produce an arc. The arc can also ignite.

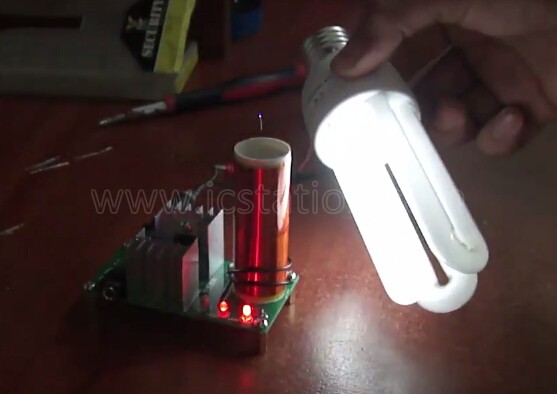

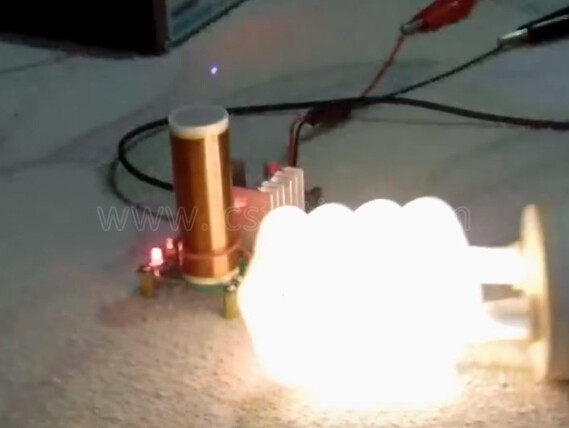

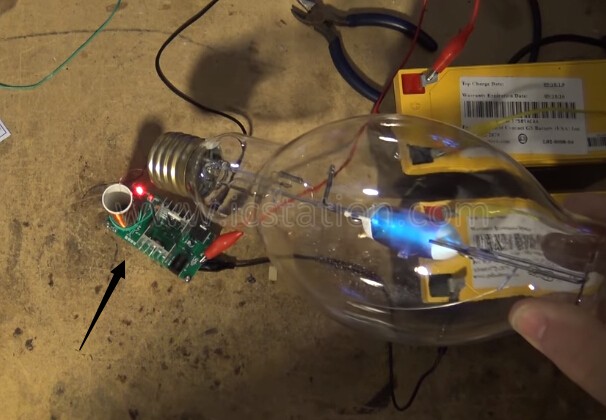

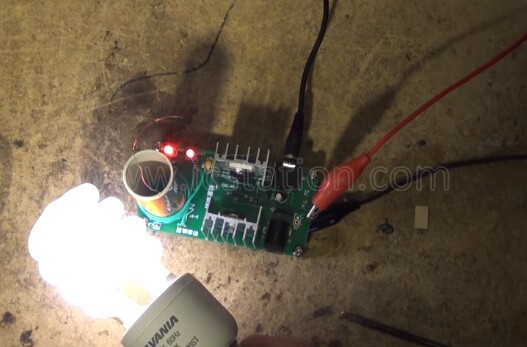

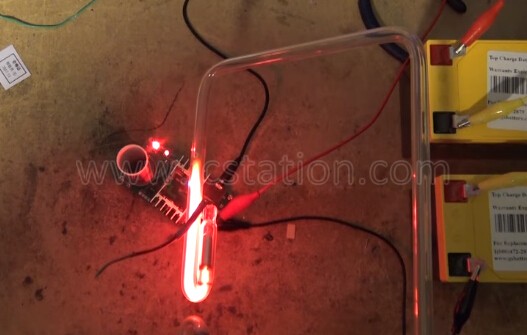

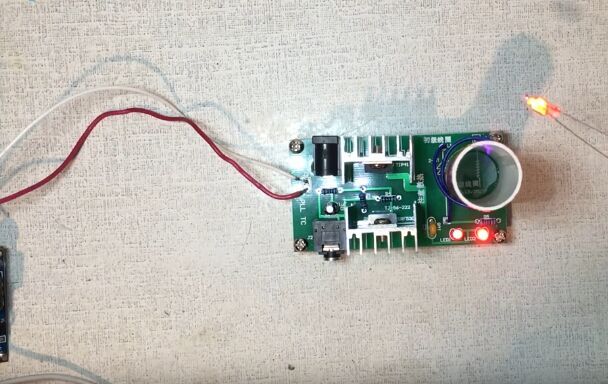

2. Septum light function: after the Tesla coil is electric, the fluorescent lamp can be lighted apart.

3. Music playback function: a new concept loudspeaker for electric arc to stimulate air to make air vibration produced by plasma. You can play mobile / computer music, but the sound is small.

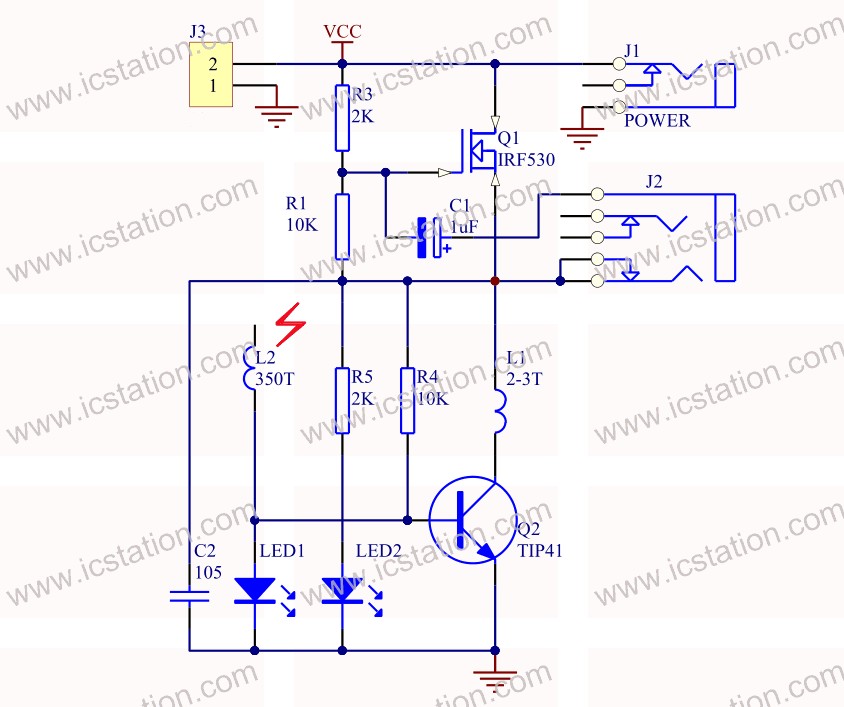

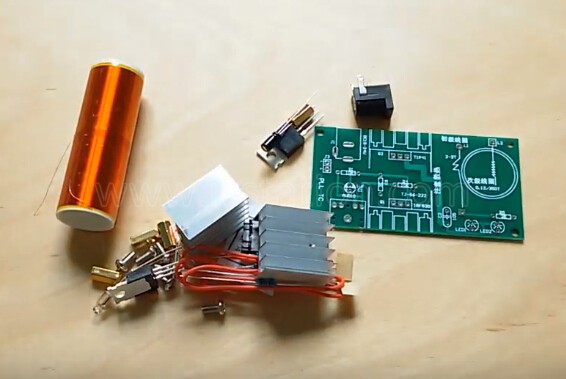

Component List:

NO.	Component Name	PCB Marker	Parameter	QTY
1	Metal Film Resistor	R1,R4	10K	2
2	Metal Film Resistor	R3,R5	2K	2
3	TIP41	Q2		1
4	LED	LED1,LED2	3mm	2
5	Audio Socket	J2		1
6	Electrolytic Capacitor	1uf	C1	1
7	IRF530	Q1		1
8	Power Socket	J1	5.0*2.1mm	1
9	Primary coil	L1	2-3T	1
10	Secondary coil	L2	350T	1
11	Copper pillar		M3*10	4
12	Screw		M3*6	4
13	Heat sink			1
14	PCB		40*76mm	1
