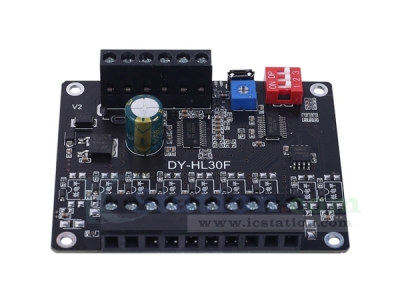

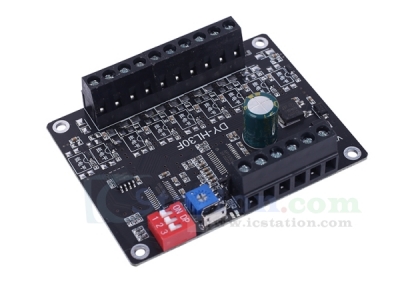

                                        DY-HL30F 30W Mono Voice Playback Module

1.Description:
  BUILT-IN STORAGE: The voice module features 64Mbit (8M bytes) of internal storage and can be connected to a computer via the included USB cable for audio file replacement. Note that a USB cable should be used instead of a charging cable, as the latter may not allow the computer to read the audio files.

  TWO INDICATOR LIGHTS: The voice module is equipped with two indicator lights that show the status of power supply and playback. This feature is very helpful for users to monitor the working status of the voice module and operate it conveniently.

  9 WAY TRIGGER PORT: DY-HL30F voice playback module is designed with 9 way high pressure and high temperature resistant trigger ports. Without programming, you can directly connect the trigger button to realize a variety of playing modes, such as single cycle, sequential play, etc.

  WARNING DEVICE: It can be connected with external buzzer or light alarm. It can be used as the alarm device for families, supermarkets and warehouses. You can freely change the alarm effect or sound you want.

  VOLUME ADJUSTMENT UPPER LIMIT: The MP3 Music Player can not only adjust the volume with the button, but also set the upper limit of adjustable volume by adjusting the potentiometer.

2.Features:
1>.DC 9-24V wide voltage power supply
2>.9-Channel one-on-one trigger interface, triggering up to 9 music
3>.Low level trigger version and directly using GND as a trigger signal
4>.Supports MP3 and WAV decoding formats, and audio file sampling rates up to 48KHz
5>.Built-in 64Mbit (8MByte) flash storage
6>.Audio files can be replaced by connecting the computer with a USB data cable
7>.Equipped with a 30W Class D power amplifier, it can directly drive 4-8ohm, 10-30W speakers
8>.External warning lights can be connected and voltage is same to input voltage
9>.DIP switch is set with 8 trigger working modes
10>.Potentiometer adjusts volume
11>.High temperature and high voltage terminal blocks

3.Parameters:
1>.Product name:DY-HL30F 30W Mono Voice Playback Module
2>.Model:DY-HL30F
3>.Work Voltage:DC 9V-24V
4>.Work Mode: 9-Kinds
5>.File Format: MP3,WAV
6>.Speaker Power: 10W-30W
7>.Output Impedance: 4ohm-8ohm
8>.Memory:64Mbit (8MByte) Flash
9>.Audio Output: Active output
10>.Adjust Volume: Yes
11>.Trigger Signal: Low Level Signal(NPN)
12>.Work Temperature:-20℃~85℃
13>.Work Humidity:5%~95%RH

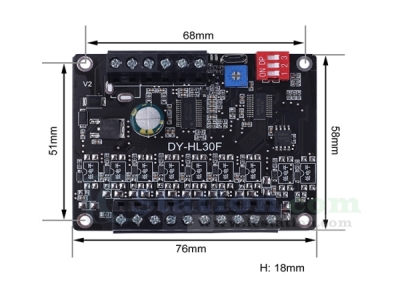

14>.Module Size:76*58mm

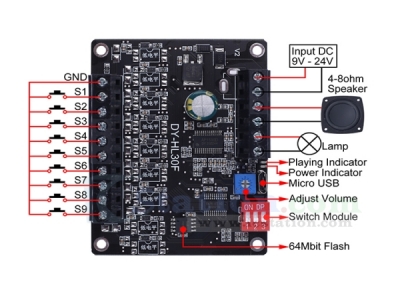

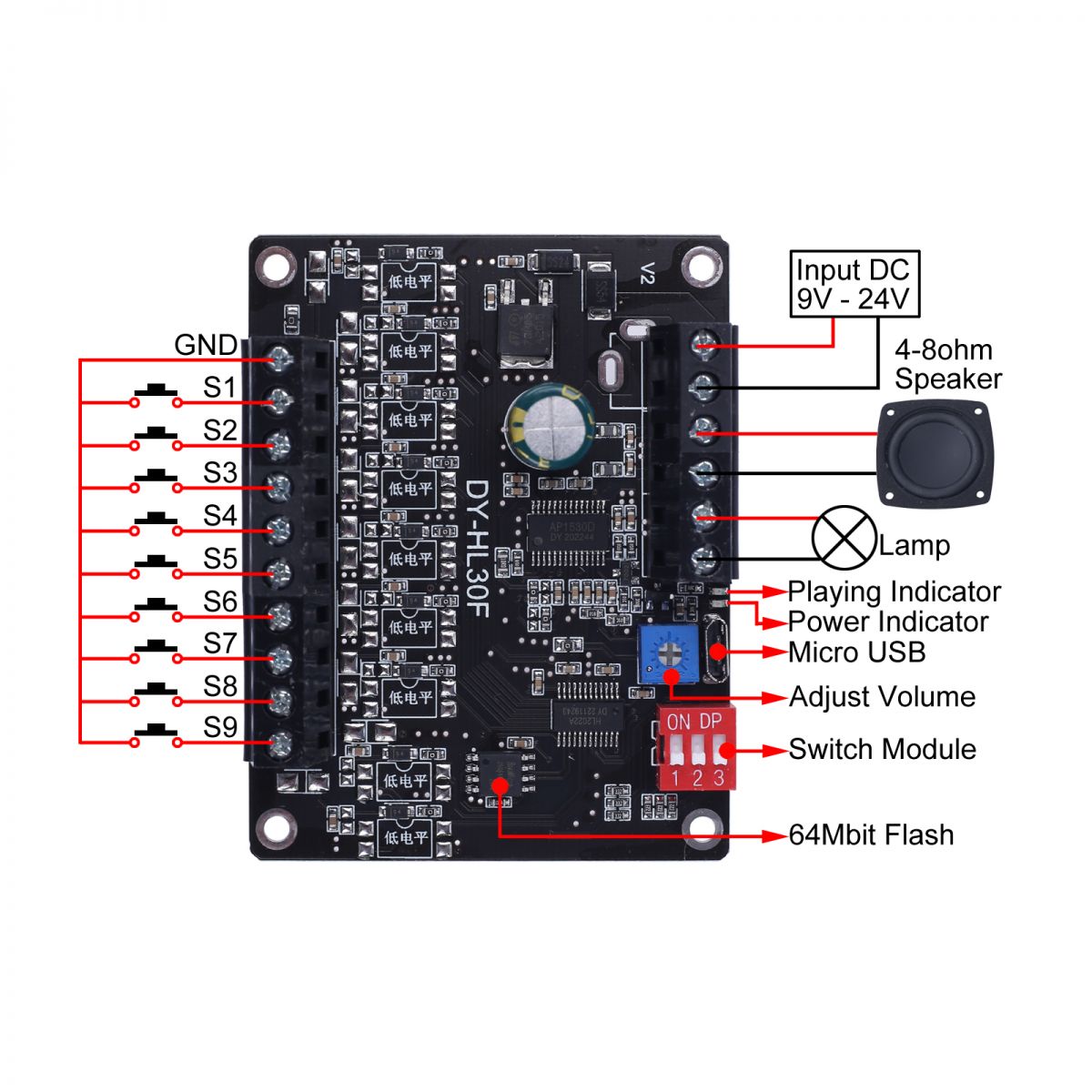

4.Interface Description:
1>.GND/COM: Trigger signal common terminal.
2>.S1: Trigger playing 00001.mp3 music file.
3>.S2: Trigger playing 00002.mp3 music file.
4>.S3: Trigger playing 00003.mp3 music file.
5>.S4: Trigger playing 00004.mp3 music file.
6>.S5: Trigger playing 00005.mp3 music file.
7>.S6: Trigger playing 00006.mp3 music file.
8>.S7: Trigger playing 00007.mp3 music file.
9>.S8: Trigger playing 00008.mp3 music file.
10>.S9: Trigger playing 00009.mp3 music file.
11>.9-24V Terminal: Input work voltage.
12>.Speaker: Connect to 4-8ohm speaker.
13>.Light/Alarm Output: Output voltage is the same to input work voltage. It can connect alarm/warning lights.
14>.Indicator: Green after power ON and red when playing.
15>.Micro USB Socket: Connect to PC and download music files.
16>.Potentiometer. Adjusting the volume.Increase volume clockwise.
17>.3Bit Red Toggle Switch:Set 8 different triggering modes, which must be powered on again after changing the mode.

5.Note:
1>.It is a low-level trigger, and the input port can input a GND signal.
2>.The power must be restarted after switching modes.
3>.Inter-Cut Trigger mode application, where background music is stored in the root directory, and insert music must be placed in the "CHABO" folder. No need "CHABO" folder in others play mode.
4>.The music file name must be a 5-digit number, for example: 00001.mp3 ~ 00009.mp3
5>.Each input port can only control one music file such as S3 just can control music file 00003.mp3.
6>.Please use a USB data cable, do not use a USB power cable, otherwise the computer will not recognize it.

6.Application:
1>.Modified/repair/replace speaker
2>.Amplifier equipment for training/activity site and so on
3>.Car Bluetooth device
4>.Music Festival Party
5>.Family entertainment and leisure
6>.Games and Cinema
7>.Home theater
8>.Security system
9>.KTV singing hall
10>.Home background music

7.Package:

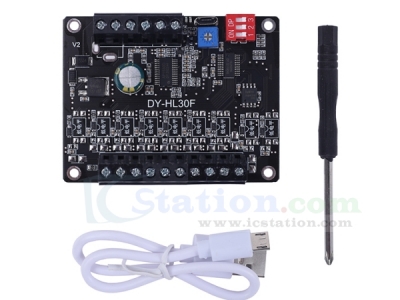

  1pcs DY-HL30F 30W Mono Voice Playback Module
