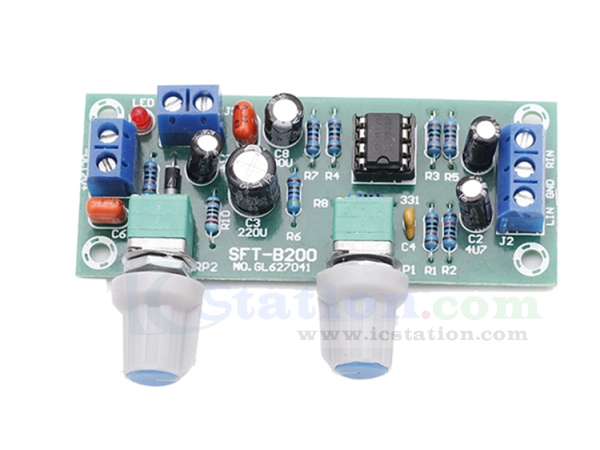

NE5532 Bass Subwoofer Preamp Board Adjustable Low Pass Filter Board Pre-AMP Amplifier Module DC 10-24V Power Supply Board

7275
5 3
$7.99 $5.43 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Parameters:

1). Power supply voltage: DC10-24V DC single power supply
2). Frequency range: 22Hz-300Hz
3). Audio input: mono or two-channel
4). Audio output: Mono
5). PCB specifications: 78x32mm, Thickness: 1.6mm
6). PCB Materials: FR-4 ultra-hard glass plate
7). Finished board Weight: 30g
8). Plate mounting holes center to center spacing: 70x24mm, hole diameter: 3.2mm
9). Potentiometers axial center spacing: 32.5mm

Note:
     A kindly reminder: the board is Subwoofer Front Board, directly connected to the speaker will not make any sound, must be received after the power amplifier board made of active subwoofer to sound, pure power amplifier board after the power according to personal needs. The degree of choice, the latter part of the power amplifier power bass effect more shocked. The so-called low-pass filter board is to filter the human voice above the treble part, keep the low-frequency part of the amplification to improve the intensity of bass playback, playback will not hear the sound and high frequency of the instrument sound. Please kindly noted.



Tested by ICStation's Outstanding Partner Hugatry's HackVlog:
(Note: The Color of the Rotary button will be slightly different, hope your kindly understanding.)

Learn More Details in the Video:
(The language in the video is English)

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2021-04-10 05:57:37
ANOTHER WONDERFUL AFTERNOON UNDER THE FLORIDA SUNSHINE AND ANOTHER PROJECT. I HAD A 10INCH WOOFER LAYING AROUND AND THIS LITTLE UNIT LOOKS IMPRESSIVE.I AM CONCERNED ABOUT IT LACK OF LARGE CAPS AND INDUCTORS.WILL BE TESTING SOON. THANKS FOR AN IMPRESSIVE 3 WEEK FREE SHIPPING TO USA
By
Rating: [5] 5 of 5 Stars! Date Added: 2020-01-02 06:36:31
GREAT product for the audio hobbyist and experimenter! Great price
By
Rating: [5] 5 of 5 Stars! Date Added: 2017-10-16 02:28:11
Nice product, great price. Excellent seller.
