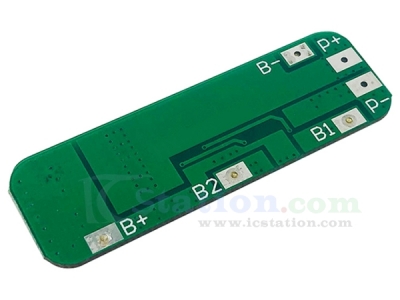

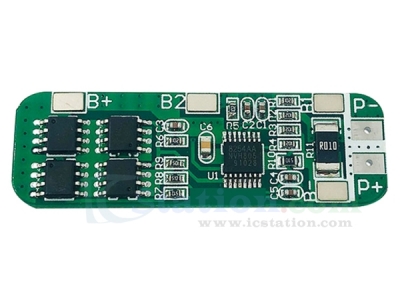

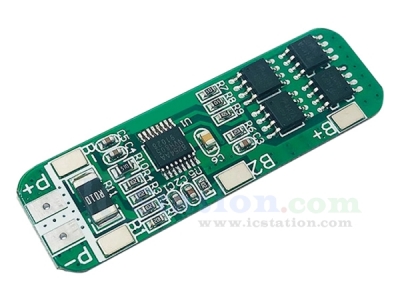

6A 3 Series 18650 Lithium Battery Protection Board 10.8V 11.1V 12V 12.6V Overcharge Overcurrent Protection Module

GY21041-1
5 9
$4.29 $3.00
Quantity5+10+
Price$3.10$2.85
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
   Equipped with over charging, over discharging, over current, and short circuit protection functions
   Suitable for 3.7V lithium batteries of various capacities and shapes
   Small size, suitable for many situations that require high integration and low cost
   3 cells (for a series combination of 3 18650 or Li-polymer batteries)
   10.8V (rated voltage of polymer battery)
   11.1V (rated voltage of 18650 or 3.7V lithium battery)
   12.6V (voltage of lithium battery when fully charged)
   Discharge 6A (refers to the discharge current limit)

2.Parameter:
  1>.Model: HX-3S-01
  2>.Overcharge voltage range: 4.25-4.35V±0.05V
  3>.Over discharge voltage range: 2.3-3.0V±0.05V
  4>.Operating current: 6A
  5>.Operating temperature: -40--+50°C
  6>.Storage conditions: -40- +80°C
  7>.Static current: <6uA
  8>.Effective life: >30000 hours
  9>.Internal resistance: <60ohm
  10>.Short circuit protection: protectable, delayed self recovery
  11>.Work Temperature:-25℃~85℃
  12>.Work Humidity:5%~95%RH

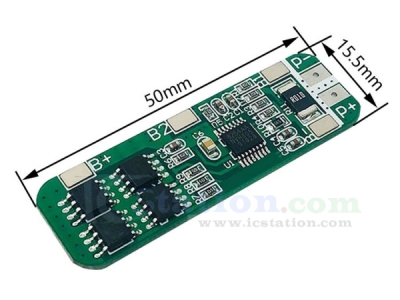

  13>.Size: 50*16mm

3.Package:
   1pcs 6A 3 Series 18650 Lithium Battery Protection Board

Quantity5+10+
Price$3.10$2.85
