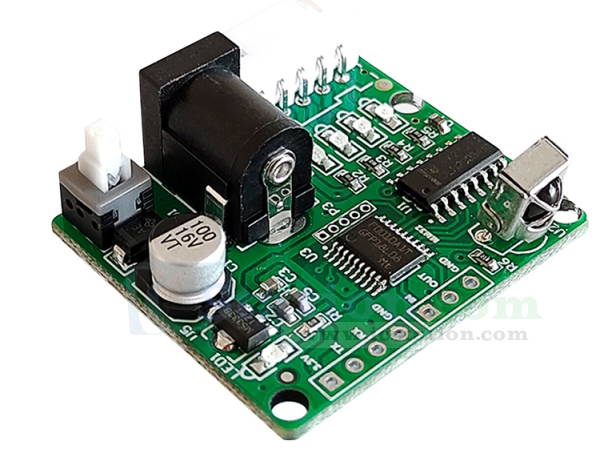

1.Description:
It is a drive controller.It supports 11 working modes,you can choose the appropriate working mode to DIY the tools you need.
2.Feature:
1).It has an infrared remote control,directly use the remote control to select the working mode.
2).It has a motor working indicator,which can observe the working state of the motor.
3).It has 11 working modes to operate.
4).It has a power switch,which can be turned off when not in use.
3.Parameter:
1).Product Name:Drive Controller
2).Input Voltage:DC 5V
3).Working Current:<15mA (at rest),<250mA (at work)
4).Operation Method:Infrared remote control
5).Working Mode:11 working modes
6).Drive Motor:DC 5V 4-phase 5-wire stepping motor 28BYJ48
7).Work Temperature:-25℃~85℃
8).Work Humidity:5%~95%RH
9).Size:36*35*13mm
4.Working Mode:
1).Mode 1:After one round of forward rotation,a random delay of 3-15 seconds,and then another round of reverse rotation,with a random delay of 3-15 seconds,infinite loop.
2).Mode 2:After one round of forward rotation,a random delay of 10-30 seconds and then a second round of reverse rotation,with a random delay of 10-30 seconds,infinite loop.
3).Mode 3:After one circle of forward rotation,a random delay of 3-15 seconds,infinite loop.
4).Mode 4:After one circle of forward rotation,a random delay of 10-30 seconds,infinite loop.
5).Mode 5:After one circle of forward rotation,a random delay of 30-50 seconds,infinite loop.
6).Mode 6:After one circle of forward rotation,a random delay of 50-99 seconds,infinite loop.
7).Mode 7:Switch the current mode to forward rotation.
8).Mode 8:Switch the current mode to reverse.
9).Mode 9:keep running forward without delay time.
10).Mode 10:Numbers 1-9,1-9 delays after one turn of the logo,infinite loop.
11).Mode 11:5 turns forward,1 turn reverse,random delay 5~12 seconds,infinite loop.
5.Usage Scenarios:
1).DIY swipe screen refresher
2).DIY all kinds of small tooling
6.Package:
1).1pcs Drive Controller
2).1pcs IR remote control
3).1pcs 4-phase 5-wire stepping motor
