Product Introduction:
1. Power Voltage:5V-24V
2. No Load Current:60MA
3. Output Port:2-channel complementary output(the same freuqncy,opposite phase)
4. Frequency Range:1Hz-1024Hz
5. Frequency Adjusting Step:1Hz
6. Duty Cycle Range:1%-99%
7. Duty Cycle Adjusting Step:1%

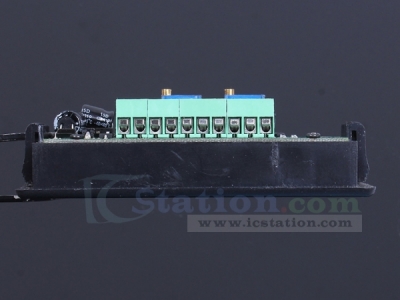

Using Introduction:
1. Ouput Frequency Adjustment:used to adjust output signal frequency
2. Output Signal Duty Cyle Adjustment:used to adjust output signal duty cycle
3. Internal/external Potenitometer Option:when using external potentiometer,plug mini jumper in EXT;when using circuit self-equpped potentiometer,plug mini jumper in INT
4. External Potentiometer Port:to externally install potentiometer
5. Output 1:marking 5V is 5V signal output port,maximum output current is 50MA;marking OC is collector open circuit output port,withstand current is 30V,output low level current is 1500MA
6. Output 2:marking 5V is 5V signal output port,maximum output current is 50MA;marking OC is collector open circuit output port,withstand current is 30V,output low level current is 1500MA
7. Power:DC 5V-24V
8. Power Voltage:when power voltage is 5V,connect with two soldering pads;when power voltage is 7V-24V,disconnect two soldering pads


Details:

Tested by ICStation's Outstanding Partner bakupcpu:

Learn More Details in the Video:
(The language in the video is English)
