1.Description:
It is a DC motor controller. It can be controlled by an external 0-5V voltage and can be used for PLC to directly control the motor speed.
2.Feature:
1).It has a wide range of speed adjustment and can be adjusted to any speed you can think of.
2).It has a power supply reverse connection protection function and a voltage overvoltage protection function,so it can be used with confidence.
3).If you need the forward and reverse function,you can connect a square switch.
4).It has a potentiometer knob,which can change the duty cycle of the governor output,thereby changing the motor speed.
3.Parameter:
1).Product Name:DC Motor Controller
2).Working Voltage:DC 6V-90V
3).Control Power:Working voltage*8A
4).Rated Current:8A
5).Maximum Current:15A
6).Speed Adjustment Range:0%-100%
7).PWM Frequency:16KHz
8).Potentiometer:Resistance value B10K
9).Work Temperature:-25℃~85℃
10).Work Humidity:5%~95%RH
11).Size:64*59*28mm
4.Note:
1).The input of the DC motor speed controller is direct current,and it cannot be directly connected to alternating current,otherwise it will burn out.
2).The positive and negative poles of the DC power supply cannot be reversed,otherwise the governor will be damaged.
3).he motor can be positive or negative,when the running direction is inconsistent with the expectation.The direction can be changed by adjusting the line sequence.
5.Package:

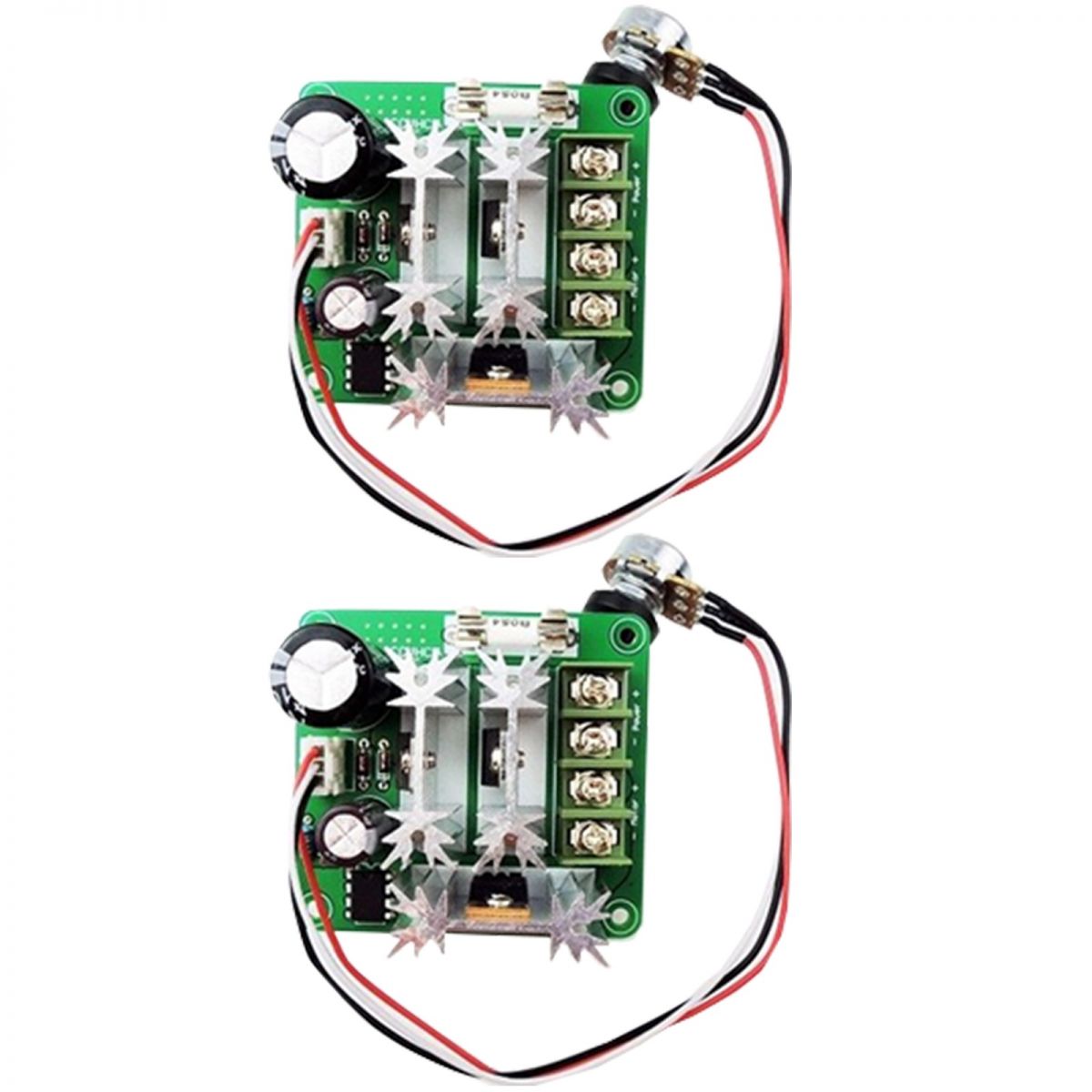

2pcs DC Motor Controller
