Flash LED Christmas Tree DIY Kit

1. Introduction

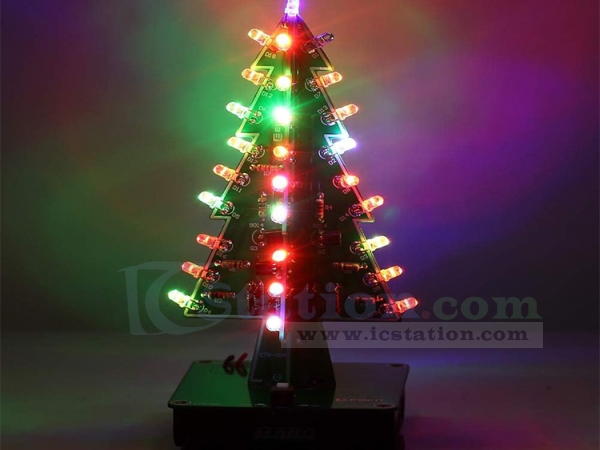

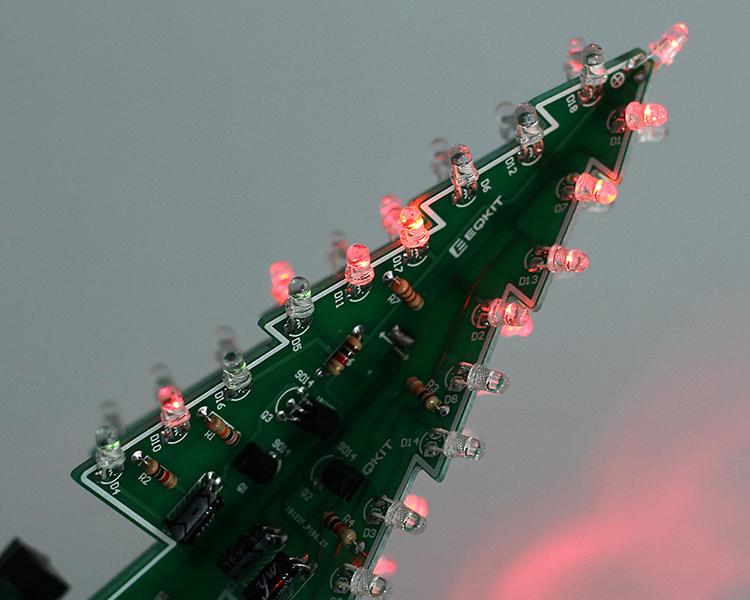

CTR-30 flash Christmas tree kit consists of three circuit board, allows 36 LED flash alternately, showing a Christmas tree in the space of three-dimensional profile (the night environment has better viewing).

2.Parameter
NO. Parameter Value
1 Model CTR-30C
2 Work Voltage DC4.5-5V
3 Power Type AA*3 battery or USB Cable
4 Installation Size 60mm*60mm*136mm

3.Schematic

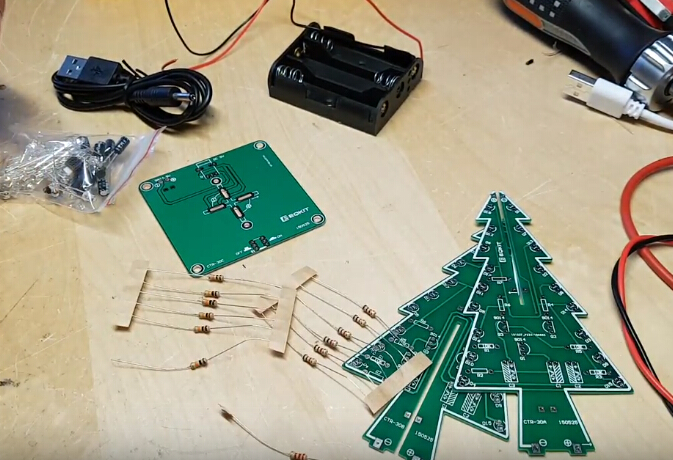

4.Component listing

NO. Component Name PCB Marker Parameter QTY
CTR-30A
1 Metal Film Resistor R2,R4,R6 1K 3
2 Metal Film Resistor R7 2.2K 1
3 Metal Film Resistor R1,R3,R5 10K 3
4 Electrolytic Capacitor C1-C3 47uF 16V 3
5 White LED D1-D18 3mm 19
6 S9014 Transistor Q1-Q3 TO-92 3
7 PCB CTR-30A   1
CTR-30B
8 Metal Film Resistor R2,R4,R6 1K 3
9 Metal Film Resistor R1,R3,R5 10K 3
10 Electrolytic Capacitor C1-C3 47uF 16V 3
11 White LED D1-D18 3mm 18
12 S9014 Transistor Q1-Q3 TO-92 3
13 PCB CTR-30B   1
CTR-30C
14 Self-Locking Switch S1 5.8mm 1
15 DC Power Socket J1 3.5mm 1
16 Battery Box   AA*3 1
17 USB to DC 3.5mm Cable   80cm 1
18 Screw   M2*8mm 2
19 Nut   M2 2
20 PCB CTR-30C   1

NOTE: Users can complete the installation by PCB silk screen and component listing

5.Installation Steps Download

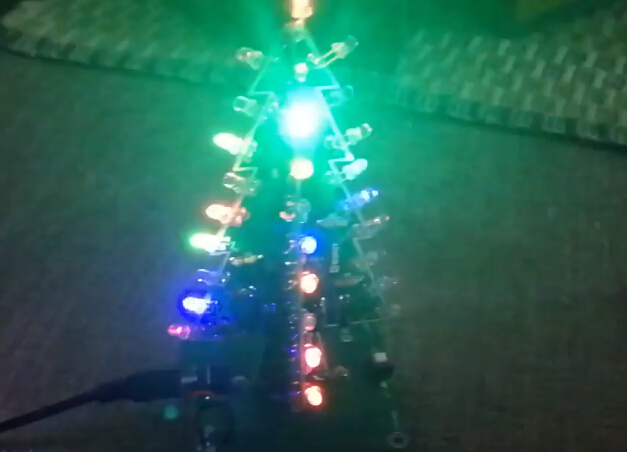

6.Finished Project:




I. Tested by ICStation:


Learn More Details in the Video:



II. Tested by ICStation's Outstanding Partner Marco Arduino channel:

Learn More Details in the Video:
(The language in the video is English)
