Home > DIY Module > Funny DIY > DIY Kit NE555 Electronic Keyboard Music Playing Module Analog Circuit Electronic Soldering Practice Kits

DIY Kit NE555 Electronic Keyboard Music Playing Module Analog Circuit Electronic Soldering Practice Kits

GY20878-1
5 9
$3.99 $2.79
Quantity5+10+30+
Price$2.59$2.50$2.35
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Introduction:

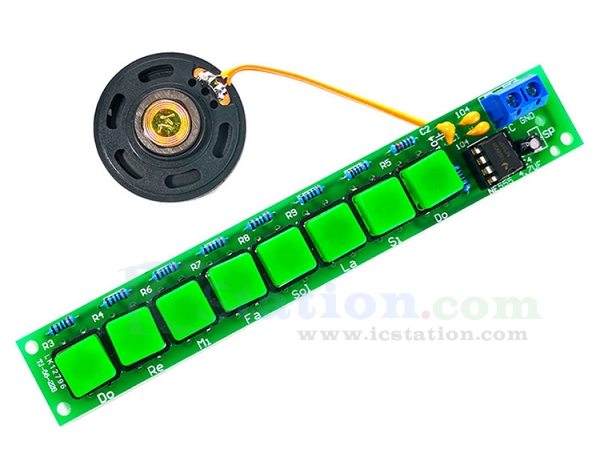

  TJ-56-228 is a NE555 Electronic Keyboard Music Playing Module Electronic Soldering DIY Kit. Make different sounds by pressing different buttons.
  It is a very interesting DIY electronic product which enables users to understand the circuit more clearly and learn soldering skills.

2.Parameter:
  1>.Product Name: TJ-56-228 NE555 Electronic Organ Music Playing Module DIY Kit
  2>.Work Voltage:DC 3V-12V
  3>.Work Temperature:-40℃~85℃
  4>.Work Humidity:5%~95%RH
  5>.Size(Installed):135x22mm

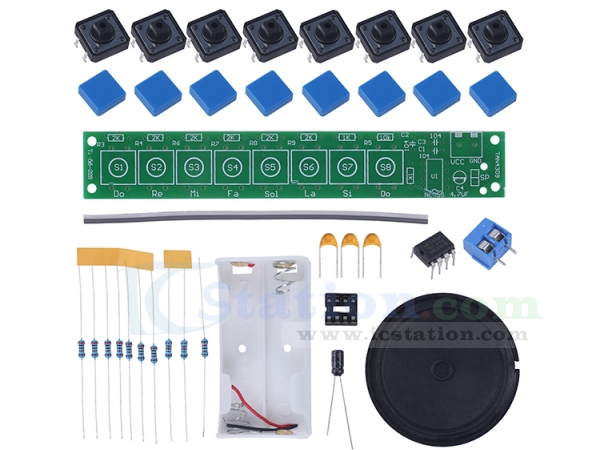

3.Component Listing:
(The key cap color is random in different batch, not always the same as picture)



4.Installation Tips:
  1>.User needs to prepare the welding tool at first.
1.1>.Soldering iron (<50 Watt)
1.2>.Rosin core ("radio") solder
1.3>.Wire cutters
1.4>.Wire strippers
1.5>.Philips screwdriver
  2>.Please be patient until the installation is complete.
  3>.The package is DIY kit.It need finish install by user.
  4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
  5>.Pay attention to the positive and negative of the components.
  6>.Strictly prohibit short circuit.
  7>.User must install the LED according to the specified rules.Otherwise some LED will not light.
  8>.Install complex components preferentially.
  9>.Make sure all components are in right direction and right place.
  10>.It is strongly recommended to read the installation manual before starting installation!!!
  11>.Please wear anti-static gloves or anti-static wristbands when installing electronic components.
