1.Introduction:

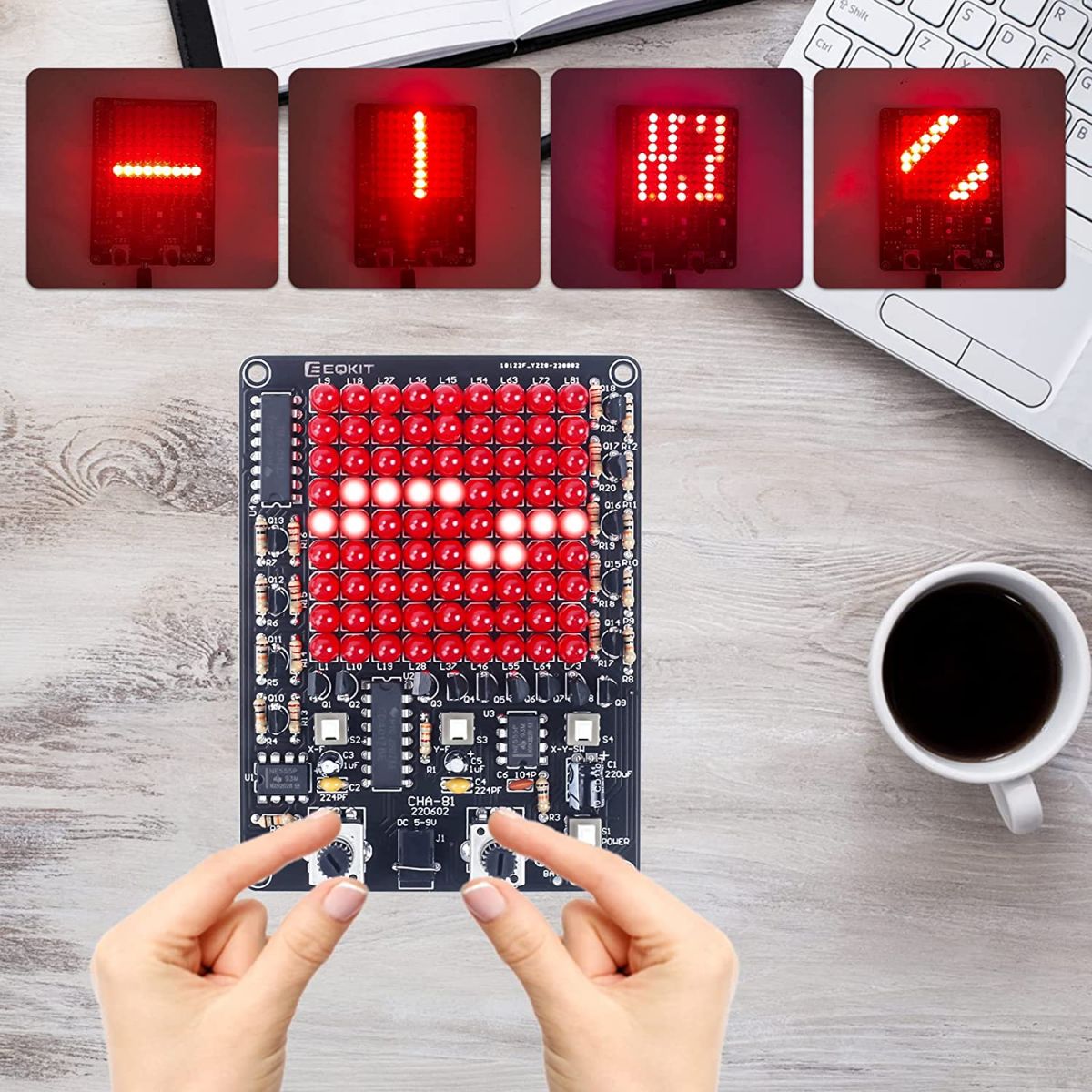

CHA-81 is a LED Follow Spot Lights LED Game DIY Kit. It can make the LED move along the X-axis/Y-axis/XY-axis, and the moving direction can be controlled by the buttons.
It can also adjust the speed of the LED movement, resulting in a variety of LED blinking effects.
It is a very interesting DIY electronic product which enables users to understand the circuit more clearly and learn welding skills.
2.Feature:
81pcs highlight Red LED.
Controllable movement direction for X-axis/Y-axis/XY-axis.
Controllable movement speed for X-axis/Y-axis.
Simulate LED light game tracking effect.
3.Parameter:
Product Name:CHA-81 LED Follow Spot Lights LED Game DIY Kit
Product Number:CHA-81
Work Voltage:DC 4.5V-9.0V
Power Type:3.5mm Power Socket
Color:Red LED
Work Temperature:-40℃~85℃
Work Humidity:5%~85%RH
Size(Installed):97x73x24mm
4.Function:
Moving direction:Left to right, bottom to top.
X-F Button is used to turn ON/OFF moving control in X-axis. Note:The default movement method remains unchanged.
Y-F Button is used to turn ON/OFF moving control in Y-axis. Note:The default movement method remains unchanged.
XY-F Button is used to turn ON/OFF moving control in XY-axis. Note:The default movement method remains unchanged. The effect presented is that the LED moves to the upper right corner.
S1 Button is used to turn ON/OFF work power supply.
X-SPEED Potentiometer is used to adjust LED’s moving speed in in X-axis.
Y-SPEED Potentiometer is used to adjust LED’s moving speed in in Y-axis.

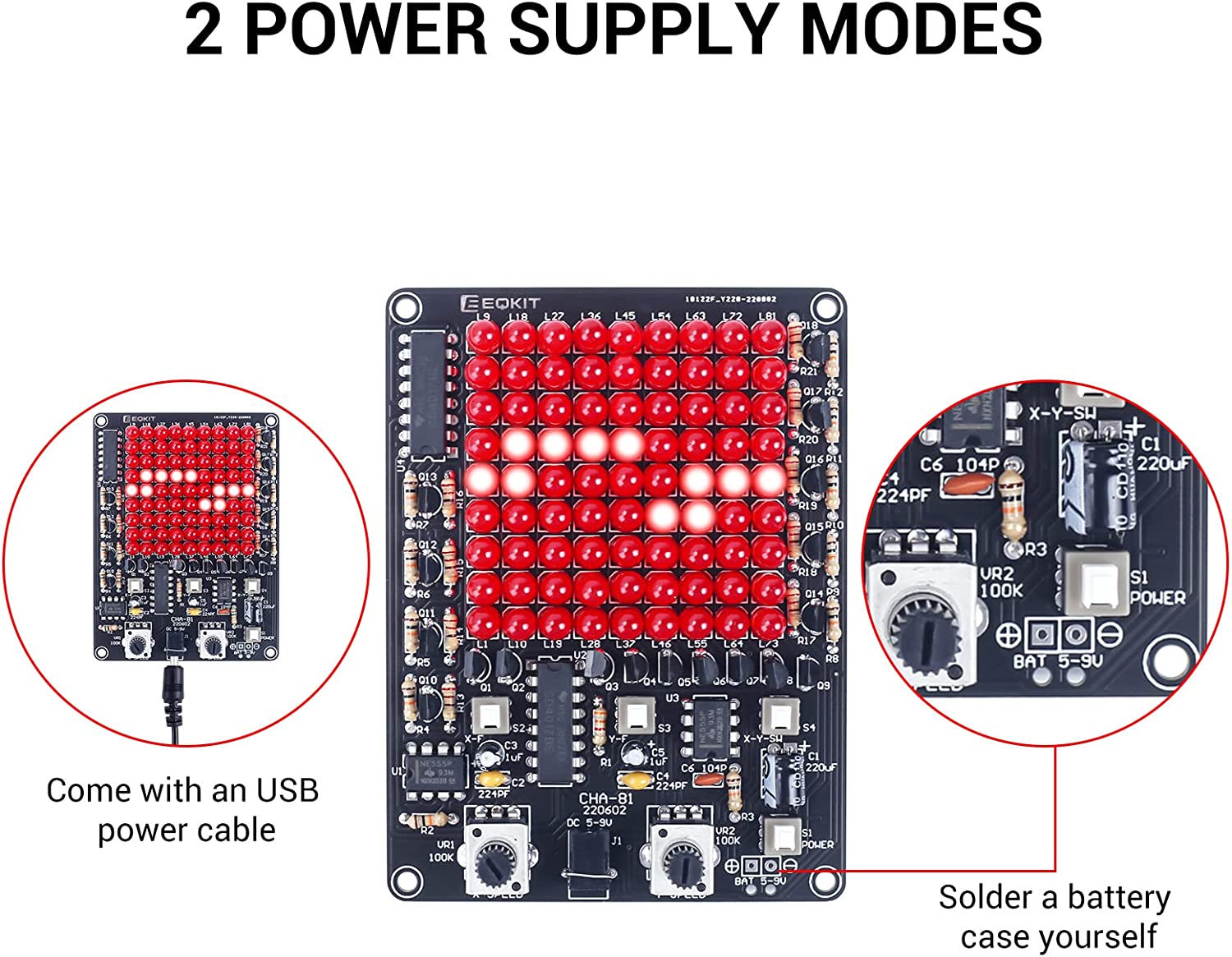

Reserved power pad interface, convenient for users who need to install non-USB power supply such as batteries.
