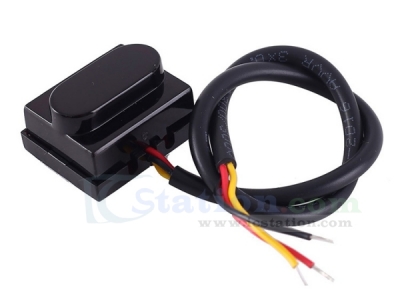

DC 5V High/Low Signal Output Waterproof Active Photoelectric Infrared Sensor Strong Anti-interference Intelligent Induction Non-contact Switch for Home Security Automatic Doors

13677
5 9
$7.85
- OR - Add to Wish List
1.Features:
    Strong anti-interference ability; multiple input methods, easy to use; intelligent induction non-contact switch, safe and sanitary; small size for easy installation; small induction angle, close to straight line.

2.Applications:
    Intelligent sensor sanitary ware; home security; robot obstacle recognition, intelligent detection, intelligent control; faucet sensing, automatic flushing of urine and urine, automatic hand dryer, anti-theft device, automatic doorbell, stair aisle sensing, close-range reminder, automatic Doors, advertising boxes, automatic trash cans.

3.Description
1>.Voltage supply:DC 5~12V
2>.Sensing distance:2~150 adjustment
3>.Induction distance adjustment:The button automatically calibrates the sensing distance and can be powered down.
4>.Induction angle:10~15°Cone angle
5>.Induction method:Active
6>.No-load operating current:5~50mA (The farther the sensing distance is, the larger the operating current)
7>.High level output current:less than 1.2mA Pull current
8>.Low level output current:Less than or equal to 300mA
9>.Pulse output:Quiescent current <100uA or <40uA, operating current <100mA
10>.output method:High and low level signal output / switching amount NPN output / pulse output
11>.Indicator light:Sensing red light
12>.working environment:Illuminance: 10000Lx sunlight, 3000Lx incandescent lamp (can work normally under 1000m energy-saving lamps directly under 1m)
13>.Operating temperature:-10~75℃
14>.storage temperature:-20~70℃
15>.Housing material:PE
16>.Protection level:IP55

4.Features
1>. Strong anti-interference ability
2>.Intelligent sensing non-contact switch, safe, sanitary
3>. The sensing angle is small, close to a straight line
4>. Small size, easy to install
5>. A variety of input methods, easy to use

5.Way of working
1>.Output mode: high and low level signal reverse output
2>.Enter the sensing area: output low level 0V
3>.Leave the sensor: output high 5V

Remarks:
Output mode - the sensor can only have one output mode
High and low level signal output: only provide a high and low level signal, suitable for small current control large current, control external circuit, MCU signal recognition and judgment, etc.

6. Notes:
1>. The infrared receiving device is interfered by strong light (the ordinary indoor light is not affected, the sensitivity is reduced when the light is too strong, and the distance becomes close). When installing, try to avoid the strong light directly on the probe to make the sensing distance become close, affecting the function.

2>. Infrared sensor is the principle of diffuse reflection of light, which is easily affected by the color of the object being sensed. White is the farthest, black is the nearest, and black and white are different. When using it, try not to place white objects in front of the sensor to avoid malfunction.

3>. Avoid installation in an environment with high dust concentration (because high concentration of dust is equivalent to inductive objects, which will cause the sensor to work incorrectly) to avoid malfunction.

7. Sensing range and angular displacement
