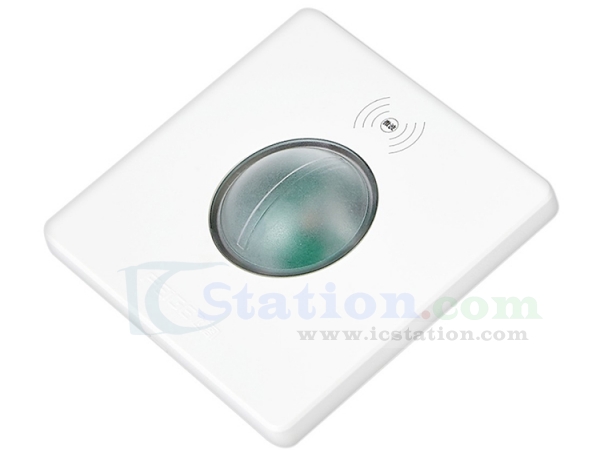

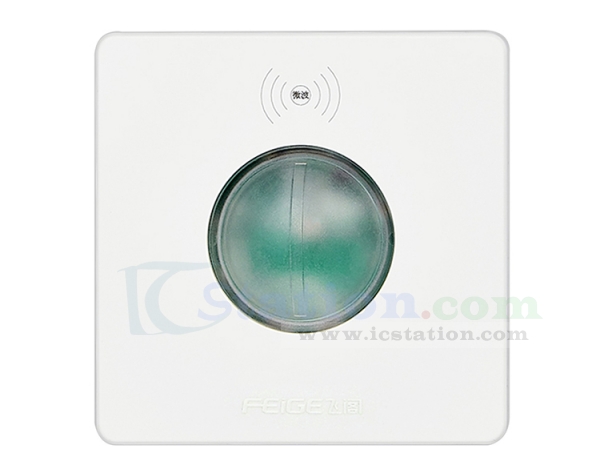

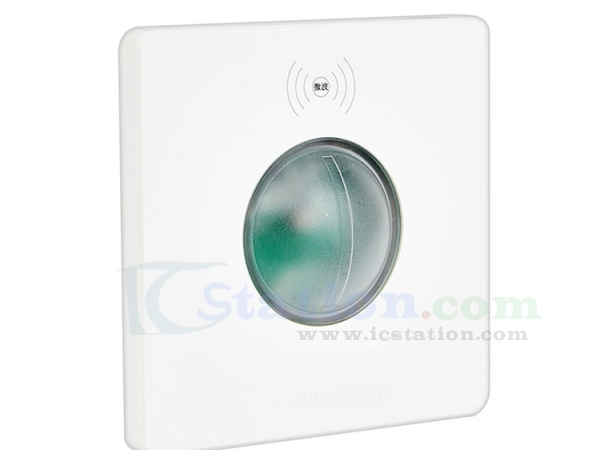

Radar Smart Sensor AC 180V-240V 50Hz/60Hz Infrared Human Body Switch

GY19159
5 9
$11.99 $8.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:

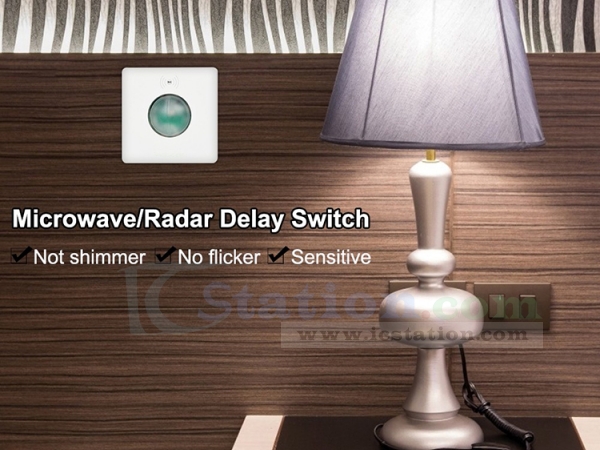

  It is a radar sensor switch.It has a large sensing range,it will not be bright during the day,it will be on at night when people come,and it will go out when people go.

Feature:

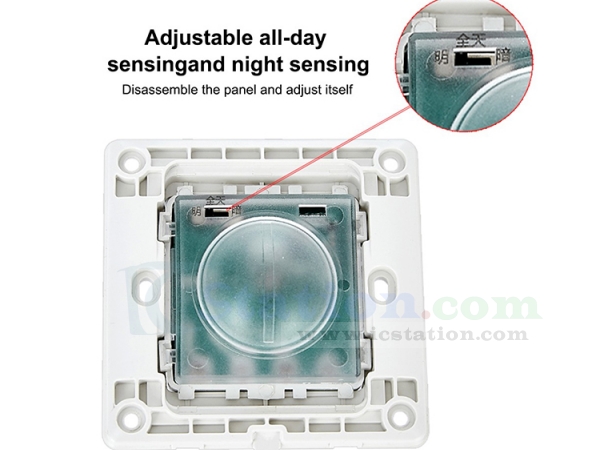

  1.It can adjust all-day sensing and night sensing by itself, saving energy and electricity.
  2.It supports radar sensing and intelligent recognition.
  3.It has a long sensing distance and long delay time.
  4.It can be compatible with a variety of lamps.
  5.It does not flicker and has stable performance.
  6.It has a smart switch and is sensitive.
  7.Its shell is made of PC flame-retardant material,which is highly flame-retardant,impact-resistant,high-temperature resistant,has good flexibility,and does not deform or change color.

Parameter:
  1.Product Name:Radar Sensor Switch
  2.Use Rated Voltage:AC 180V~240V
  3.Rated Frequency:50/60Hz
  4.Panel Color:White
  5.Product Material:PC flame retardant
  6.Work Temperature:-25℃~85℃
  7.Work Humidity:5%~95%RH

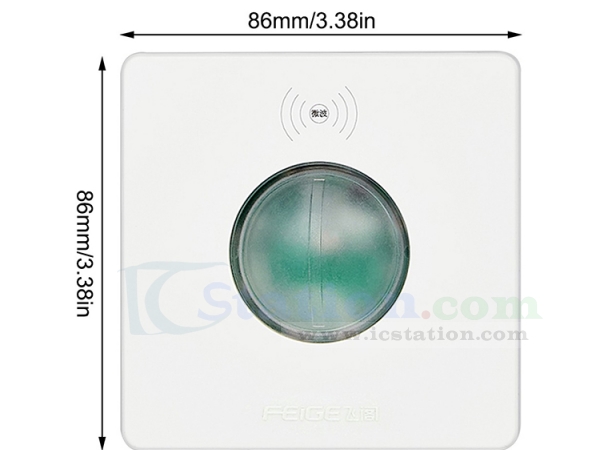

  8.Size:86*86*30mm

Note:
  1.Do not operate with power during installation,wait for the installation to complete before connecting the power supply.
  2.Do not use it beyond the power range.

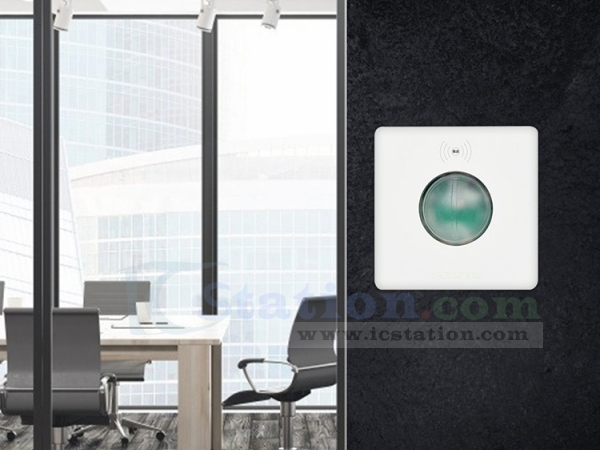

  3.The top-mounted human body induction switch should not be too high from the ground,between 2.4-3.1 meters.The wall-mounted human body sensor switch can be installed in the original switch position and replaced directly.
  4.When installing the human body sensor switch,it should be far away from the place where the air temperature changes such as heating,air conditioner,refrigerator,stove and so on.
  5.There shall be no screens,furniture,large bonsai or other partitions within the detection range of the sensor switch.
  6.Do not switch the switch directly to the window to prevent the disturbance of hot air outside the window and the movement of people from causing false alarms.
  7.Do not install the switch in places with strong air currents such as doorways and air ducts.
  8.It does not support T5/T8 similar LED strips.
  9.It does not support fluorescent tubes and light strips.
  10.It can control 10 lamps with no more than the total power at the same time.

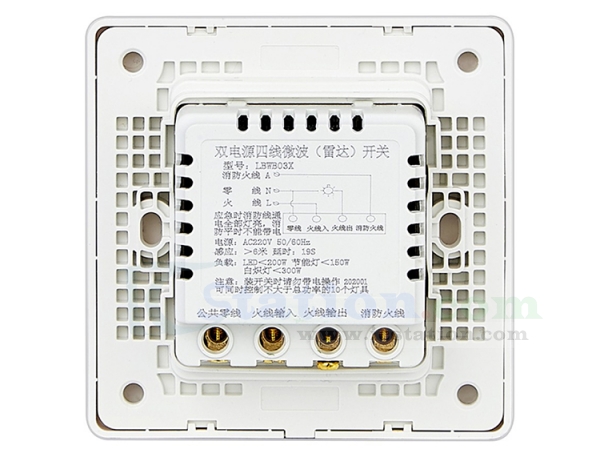

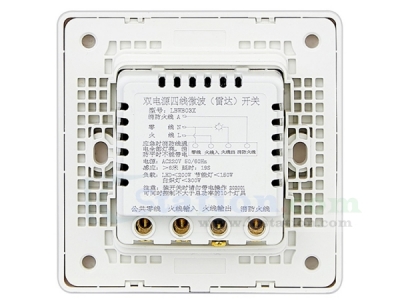

  11.When encountering a fire or emergency situation,use the remote fire control function to make all the lights forcibly light up to ensure the emergency lighting.Fire emergency wiring port,neutral wire connection port (the neutral wire must be connected).
  12.When entering the fire-fighting mode,the fire-fighting power supply must ensure normal power supply (only the light bulb signal is provided,and the daily lighting power is not provided)

Package:
  1pcs Radar Sensor Switch
