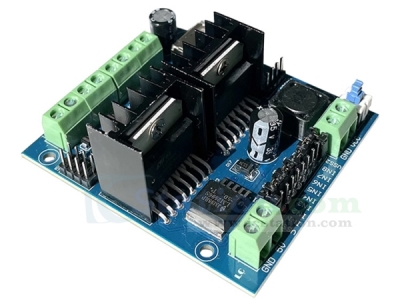

L298N Driver Module, 4-Channel Motor Driving Board, Intelligent Smart Car Motor Drive Board

1.Description:
   The 4-Channel L298N Motor Driver Module integrates two L298N chips and can simultaneously drive four DC motors, allowing control over motor direction and speed. The module includes an LM2596S voltage regulator chip, which can provide a 5V output to the control side when driving motors with a voltage higher than 7V.

2.Parameter:
  1>.Working Voltage: 5V
  2>.Peak IO Current: 2A
  3>.Maximum Power Consumption: 50W (25W for a single L298N chip at T=75℃)
  4>.Voltage Range for Logic Part Terminal (Vss): +5V to +7V (Can be obtained internally from +5V)
  5>.Operating Current Range for Logic Part: 0mA to 36mA
  6>.Voltage Range for Control Signal Input: Low Level: -0.3V ≤ Vin ≤ 1.5V (Control signal invalid), High Level: 2.3V ≤ Vin ≤ Vss (Control signal valid)
  7>.Work Temperature:-25℃~85℃
  8>.Work Humidity:5%~95%RH
  9>.Size: 21*15.5mm

3.Feature:
1. Forward and reverse rotating motor can be realized, can meet the needs of various working scenarios.
2. Excellent production technology, not easy to cold joint, reliable and safe for you to use.
3. With characteristics of strong driving ability, low heat dissipation and strong anti?interference ability.
4. Can drive 4 DC motors at the same time, really practical design, perfect driver module for you.
5. Using PCB material, it has function of conductive circuit and insulating bottom plate.

4.How to Use:

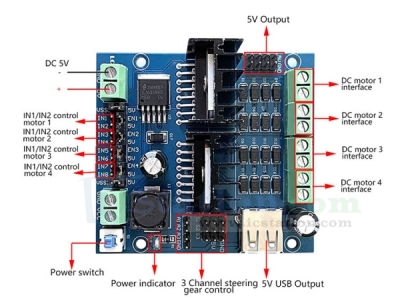

  Wiring Instructions:
  GND: Negative pole of power supply
  5V: 5V Voltage output
  IN1/IN2: Control motor 1
  IN3/IN4: Control motor 2
  IN5/IN6: Control motor 3
  IN7/IN8: Control motor 4
  VCC: Positive pole of power supply
  GND: Negative pole of power supply

5.Package:
   1pcs L298N 4 Channel Motor Drive Module
