L298N Motor Drive Controller Board Module Dual H Bridge DC Stepper for Arduino

1381
5 1
$4.59 $3.21
Quantity5+10+
Price$3.10$2.90
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$6.31-6%Bundled Price:$5.93

Basic Attributes:

Name Double H Bridge Motor Driver Module
Working Mode Drived by H bridge (double lines)
Control Chip L298N ( ST )
Logical Voltage 5V
Driving Voltage 5V — 35V
Logical Current 0mA-36mA
Driving Current 2A (MAX single bridge)
Storage Temperature ( -20 ℃)—( +135 ℃)
Maximum Power 25W
Periphery Dimension 43*43*27mm
Net Weight 30g



Module Features:

1.Using L298N made by ST company as the control chip,the module has such characteristics as strong driving ability,low calorific value and strong anti-interference ability.

2.This module can be used in built-in 78M05 for electric work via a driving power supply part. But to avoid the damage of the voltage stabilizing chip,please use an external 5V logic supply when using more than 12V driving voltage.

3.Using large capacity filter capacitor, this module can follow current to protect diodes, and improve the reliability.

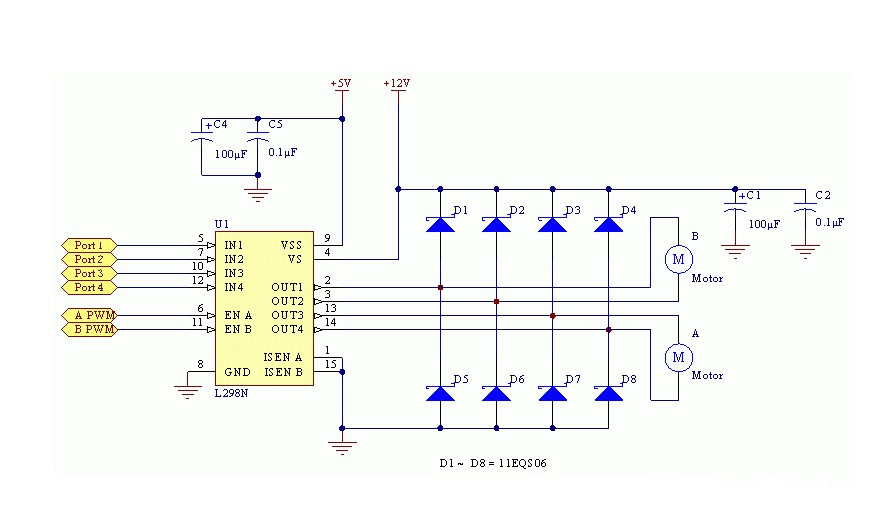

Module Diagram:

Please click the button below to download the material



1. Tested by ICStation's Partner Blue Matter:



2. Tested by ICStation's Outstanding Partner Maker Tutor:

Quantity5+10+
Price$3.10$2.90

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2017-07-12 03:00:25
The product made it so easy to control a couple of DC motors with an Arduino that it was well worth the money. Product arrived quickly. Highly recommended.
