Bluetooth-compatible Power Amplifier Board 50W+50W 12V 24V Receiver Module Support TF Card U-Disk

14750
5 9
$16.99 $11.89
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

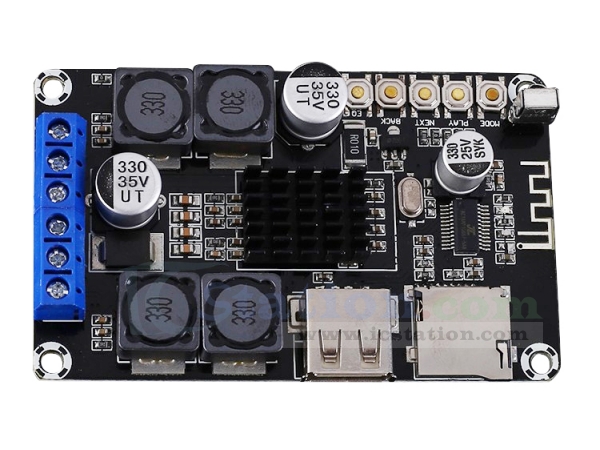

 It is a Bluetooth power amplifier board with high-fidelity stereo sound quality, Bluetooth audio input and support U-disk/TF card audio file input.

Support unobstructed onnected to 15 meters (depending on the Bluetooth configuration of the personal mobile phone, the signal receiving distance will be different).

Output positive reactance is 4-8ohm.The maximum power 2*50W.The input power is DC12V-24V power socket.Onboard volume adjustment and cutting the song button allows you to freely adjust the volume and switch songs.


2.Features:
  1>.Multiple audio input methods
  2>.Bluetooth audio input
  3>.U-disk audio input
  4>.TF card audio input
  5>.Built-in amplifier function
  6>.Support multiple music formats

3.Parametes:
  1>.Input voltage: DC 9V-24V
  2>.Number of channels: two channels
  3>.Output impedance: 4-8 ohms
  4>.Output power: 50W+50W
  5>.Music format:MP3/WMA/WAV/FLAC
  6>.TF Card socket input: Yes
  7>.U-disk socket input: Yes
  8>.Operating Temperature:-20℃~85℃
  9>.Operating Humidity:5%~95%RH
  10>.Module Size:81.5*50*14mm

4.Application:
  1>.DIY speaker
  2>.Repair replacement
  3>.Public broadcasting
  4>.Electronic enthusiast

5.Package:
  1pcs Stereo Bluetooth Power Amplifier Board
