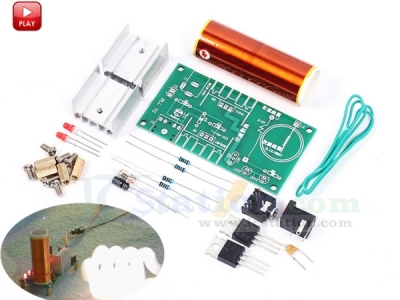

DC 15-24V 15W MINI Music Tesla Coil Plasma Speaker Plasma Loudspeaker Tesla Wireless Transmission DIY Kits

13034
5 9
$9.39 $6.57
Quantity5+10+
Price$8.99$8.49
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Description:
The Tesla coil can produce high temperature and high pressure plasma, which can sing, ignition, wireless transmission, and light fluorescent lamp. It has a wonderful arc. It is a very interesting small production of scientific experiments. This is DIY Tesla coil Kit, needs to be soldered and assembled by yourself.

Parameters:
1. PCB size: 4.0mm*8.0mm
2. Power: 15W
3. Power input: DC 15-24v. The current is 2A. DC5.5 interface / pin
4. Audio input: 3.5 socket, can be connected to mobile phone, MP3, computer audio

Principle Introduction:
Tesla coil is a transformer that operates on resonance principle. It was invented by Nicola Tesla, a Serbia American scientist in 1891. It is mainly used to produce ultra high voltage, but low current, high frequency AC power.

The Tesla coil is composed of two groups of resonant circuits (sometimes three groups) coupled. The Tesla coil is difficult to define, and Nicola Tesla has tried a large number of configurations of various coils.

Tesla uses these coils to carry out innovative experiments, such as electrical lighting, fluorescence spectrum, X ray, high frequency alternating current phenomenon, electrotherapy and radio energy transmission, transmitting and receiving radio signals.

Tesla Function:
1. Electric arc function: the traverse of the rear end will produce an arc. The arc can also ignite.

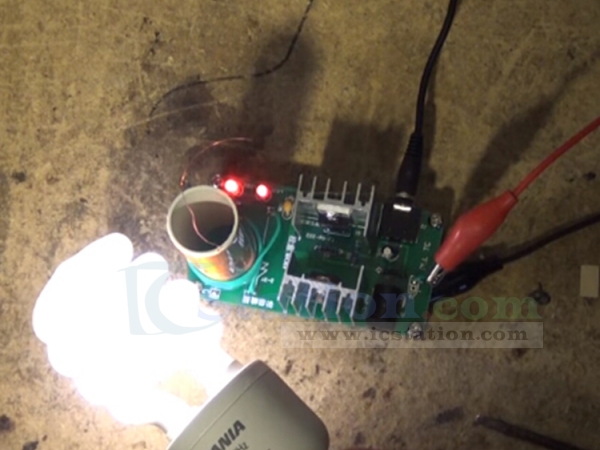

2. Septum light function: after the Tesla coil is electric, the fluorescent lamp can be lighted apart.
3. Music playback function: a new concept loudspeaker for electric arc to stimulate air to make air vibration produced by plasma. You can play mobile / computer music, but the sound is small.

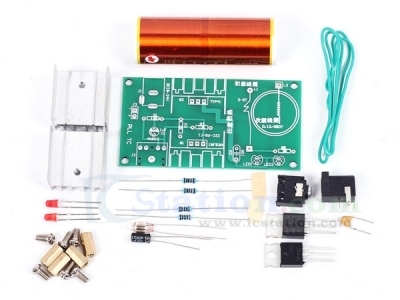

Component List:

NO. Component Name PCB Marker Parameter QTY
1 Metal Film Resistor R1,R4 10K 2
2 Metal Film Resistor R3,R5 2K 2
3 TIP41 Q2   1
4 LED LED1,LED2 3mm 2
5 Audio Socket J2   1
6 Electrolytic Capacitor 1uf C1 1
7 IRF530 Q1   1
8 Power Socket J1 5.0*2.1mm 1
9 Primary coil L1 2-3T 1
10 Secondary coil L2 350T 1
11 Copper pillar   M3*10 4
12 Screw   M3*6 4
13 Heat sink     1
14 PCB   40*76mm 1



Circuit Diagram:



Please Click Here to download installation manual:



I. Tested by ICStation's Outstanding Partner MADE IN COLOMBIA:

Learn More Details in the Video:
(The language in the video is Spanish)


II. Tested by ICStation's Outstanding Partner Workshop MasterOK electronics Repair:

Learn More Details in the Video:
(The language in the video is Russian)


III. Tested by ICStation's Outstanding Partner 12voltvids:

Learn More Details in the Video:
(The language in the video is English)


IV. Tested by ICStation's Outstanding Partner The Unwanted Guy:

Learn More Details in the Video:
(The language in the video is English)

Tested by ICStation's Outstanding Partner MindHand TM:

Learn More Details in the Video:
(The language in the video is Russia)
