Note:
The PCB Layout of this converter has been a slight change now due to the new production batch since Nov 22th, 2022. We have update the pictures now (the new batch was shown on the white background picture). The function and usage way is still the same. If you find something different than the earlier batch, hope for your kind understanding.
Parameters:
No. | Parameter | Value |

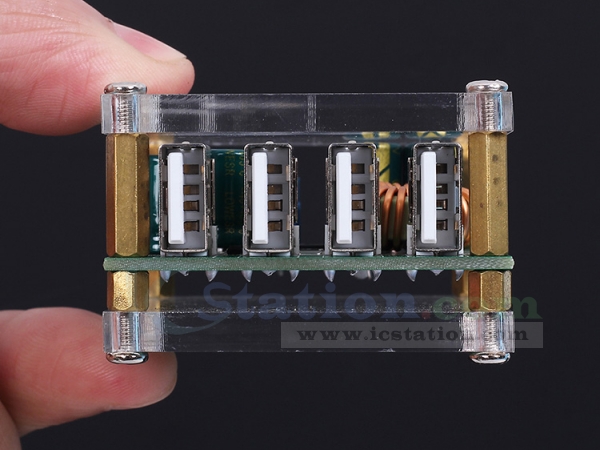

1 | Product name | 4U-5A step down module |
2 | Input | 7V-60V |
3 | Output | 5V/5A |
4 | Efficiency | 95% (MAX) |
5 | Module size | 63mm*50mm*30mm |
6 | Operating temperature | -40 Celsius to +85 Celsius |
7 | Protection |
Reverse connection protection, over flow temperature protection |
8 | Load capacity | 5A |
9 | Connection mode | DC5.5/2.1, wiring terminal without soldering |
10 | Scope of application |
USB5V power supply equipment such as mobile power supply, mobile phone, flat panel, recorder and so on |
Note:
If your device's own charging current is only 1A, no matter how much current charge, the current is only 1A. Not the greater the current, the faster the charge.
Charging speed is related to the charging current of your own equipment. Please don't judge the module's current shortage. All modules of our shop are full of power.
Product Details:
Tested by ICStation's Outstanding Partner zxDTSxz:
Learn More Details in the Video:
(The language in the video is Russian)
