FM Receiver Frequency Modulation Micro SMD LED Radio Suite DIY Kits Assembling DIY Module

9653
5 1
$3.59 $2.58
Quantity5+10+
Price$3.19$2.99
Time Remaining:
- OR - Add to Wish List

Cheaper Buy Together

$4.59-6%Bundled Price:$4.32

Product Introduction:
 1.HX3208 suite adopts electric tunning monolithic FM integration circuit, and tunning is convenient
   and accurate, has high sensitivity of receiving;small and light, easy to carry.
 2.Voltage 1.8-3.5V, internal structure has mute circuit to prevent from noise during tunning.
 3.Adopting low and middle frequency 70KHz technique, saving middle frequency and ceramic filter;
   the circuit is simple and reliable;modulation is coonvenient.

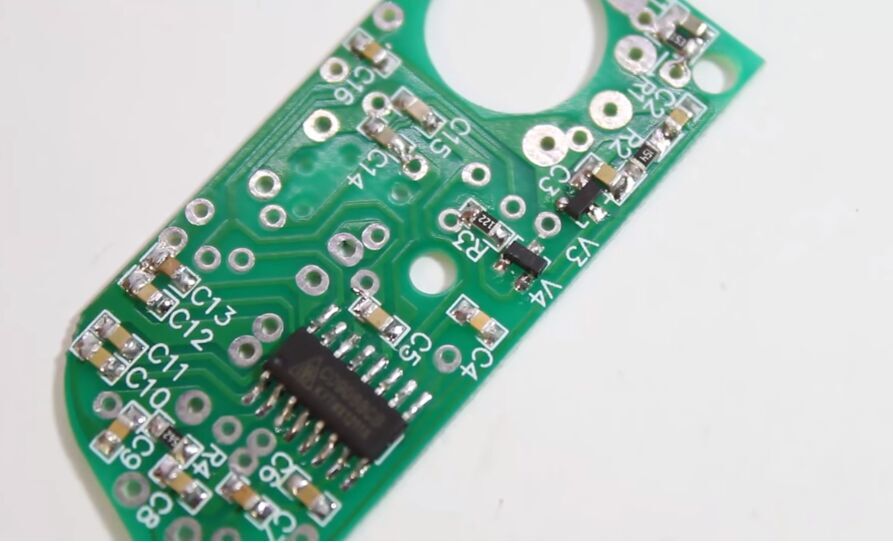

Component List:

NO. Component Parameter Package PCB Silk Screen QTY
1 SC1088   SOP-16 IC 1
2 S9014   SOT-32 V3 1
3 S9012   SOT-32 V4 1
4 BB910     V1 1
5 LED 3mm RED   V2 1
6 Magnetic Bead Inductance 4.7uH   L1 1
7 Color Ring Inductance 4.7uH   L2 1
8 Hollow Core Inductance 78nH 8Round   L3 1
9 Hollow Core Inductance 70nH 5Round   L4 1
10 Headset 32ohm*2   EJ 1
11 Resisitor 15K SMD R1 1
12 Resisitor 150K SMD R2 1
13 Resisitor 1.2K SMD R3 1
14 Resisitor 5.6K SMD R4 1
15 Metal Film Resistor 680ohm   R5 1
16 Potentionmeter 51K   RP 1
17 Capacitor 2.2nf SMD C1 1
18 Capacitor 0.1uf SMD C2 1
19 Capacitor 220pf SMD C3 1
20 Capacitor 0.33nf SMD C4 1
21 Capacitor 0.22nf SMD C5 1
22 Capacitor 3.3nf SMD C6 1
23 Capacitor 180pf SMD C7 1
24 Capacitor 680pf SMD C8 1
25 Capacitor 68nf SMD C9 1
26 Capacitor 0.1uf SMD C10 1
27 Capacitor 22nf SMD C11 1
28 Capacitor 0.1uf SMD C12 1
29 Capacitor 470pf SMD C13 1
30 Capacitor 33pf SMD C14 1
31 Capacitor 82pf SMD C15 1
32 Capacitor 0.1uf SMD C16 1
33 Ceramic Capacitor 3.3nf   C17 1
34 Electrolytic Capacitor 100uF   C18 1
35 Ceramic Capacitor 22nf   C19 1
36 Cable D0.8*6mm     2
37 Box       1
38 Potentiometer knob       2
39 Button       2
40 Battery spring clip Sets 3pcs     1
41 Switch 6x6mm   S1,S2 2
42 Headphone jack D3.5mm   XS 1
43 Screew/Nut       Several

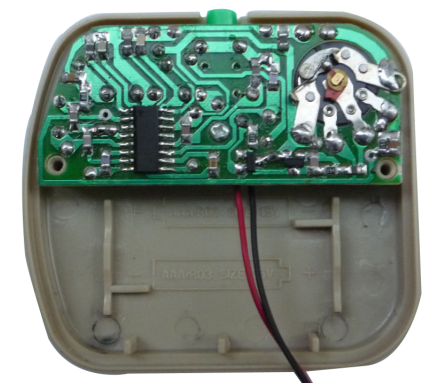

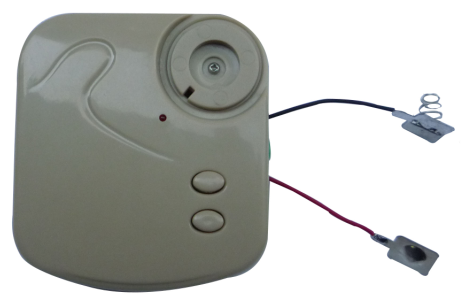

Finished Product Picture:

Note: Below finished product picture is just for your reference.
(The color of the box and earphone maybe different sometimes due to different batch, but the functions are always the same, hope for your kind understanding.)



Please click here to download Instruction Manual:

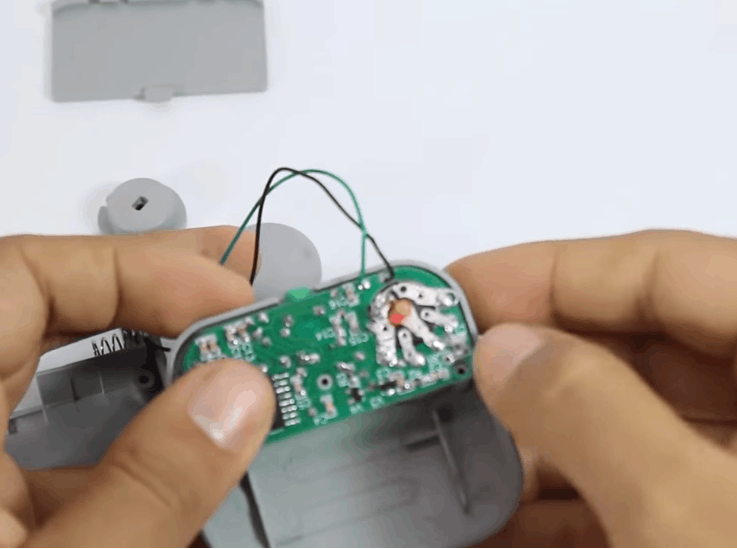

1. Tested by ICStation's Outstanding Partner MrJefferson105:
(The color of the box and earphone maybe different sometimes due to different batch, but the functions are the same, hope for your kind understanding.)

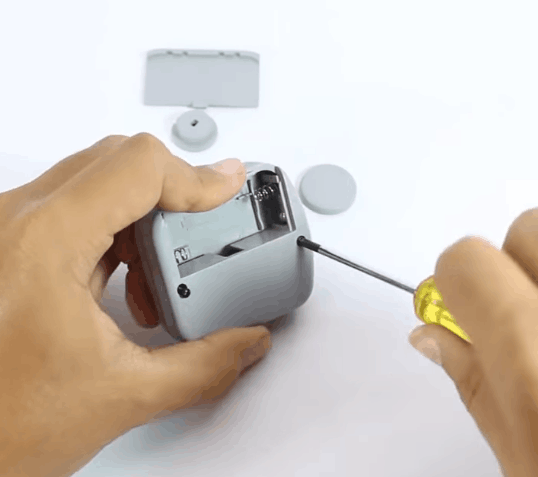

2. Tested by ICStation's Outstanding Partner MADE IN COLOMBIA:

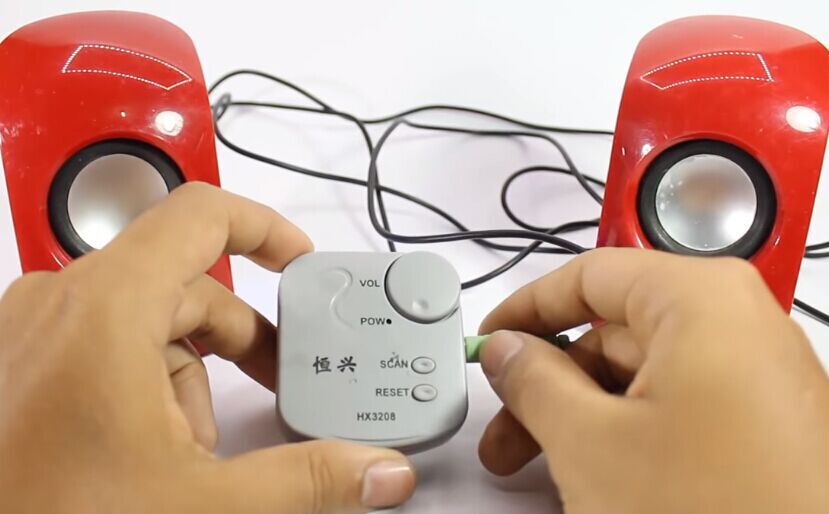

Learn More Details in the Video:
