ICStation 4X4X4 Light Cube Kit for Arduino UNO ICSK059A

5312
5 2
$6.99 $4.89
Quantity3+5+10+
Price$4.15$3.99$3.85
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$23.09-5%Bundled Price:$21.93

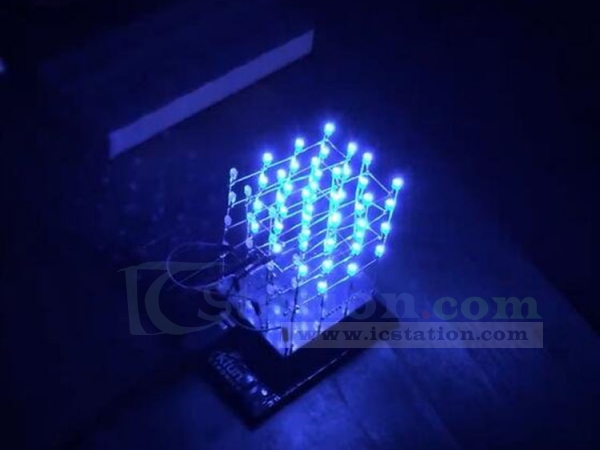

ICSTATION 4x4x4 Light Cube kit uses 64 cuboid LED,and controlled by Arduino. Expansion board uses two 74HC595 shift register chips, using eight I/Os can light the 4x4x4 Light Cube,it’s hardware resources needed is less than other 4x4x4 light cubic expansion board(needs 20 I/Os to control).

1.Description
The display part of ICSTATION 4x4x4 Light Cube kit consists of 64 cuboid LED,uses two 74HC595shift register chip to control LED anode, the 4 I/O ports of Arduino controls 4 common cathodes of LED.

2.Parameters
Control module:arduino control board
PCB size:61*74mm
LED color:blue
Attention:
1.You can choose round head or other color’s LED(Our kit is 3mm blue cuboid LED ).
2.This kit is 4x4x4 light cubic expansion board,without arduino control chip or control module.
3.Provide with arduino library,but there has less display effects,if you need more effects,you need to compile by yourself.

3.Diagram

4.Mechanical drawing


5.Module description and link

The 0~15 slot of Diagram  is used for inserting  LED anode; D16~D19 slot is used for inserting the LED cathode.
Expansion board and Arduino control pins
74HC595 pin                      arduino
        SH                                  0
        ST                                  1
        OE                                  2
        DS                                  3

        D16                                4
        D17                                5
        D18                                6
        D19                                7

6.Components list

Component

Label

Package

Value

Quantity

Round pin (span 2.54)







1

Long foot pin (span 2.54)







1

16P IC Block







2

74HC595

U1,U2





2

500 ohm resistor

R1、R2、R3、R4

DIP-2

500R

6

Cuboid LED (3mm)







70
