SMD RGB LED Flashing Lamp DIY Kit

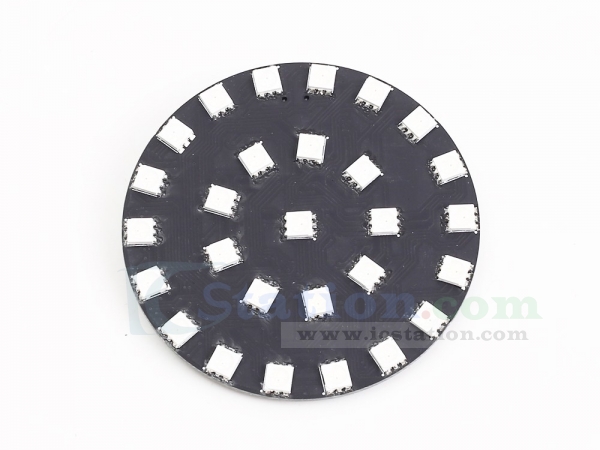

It is a RGB full color LED crystal light cubic ring DIY Kit. It uses 28 high-bright full-color LED. A circular mirror black acrylic panel on the front to enhance the color mixing effect and mystery. It will produce a variety of cool gradient colors when power ON. The effect will not be affected even in the sun. The whole form an ultra-thin effect. The power off and power on is a high-value artwork.
1>.28pcs highlight RGB full color SMD LED
2>.23 kinds of display effects
3>.Power off memory function
4>.Black acrylic panel
1>.Work Voltage:DC 4.5V~5.5V
3>.Work Module:Automatic and Button Control
1>.Outward diffusion gradient Aurora LED mode
2>.Clockwise change color of water droplets tailing effect
3>.Anticlockwise water droplets tailing
4>.Layer by layer fade gradually eliminate change color
5>.Each ring LED full-color gradient
6>.Random LED lightning mode
7>.Random 4pcs LED alternately breathing transformation
8>."Y" rotation (Like the English letter Y)
9>.Random layer and color breathing
10>.Three laps LED full-color gradient
11>.Clockwise color effect water droplets tailing
12>.Internal and external diffusion LED Aurora gradient mode
13>.Rainbow gradient mode
14>.A LED color random breath
15>.A variety of all LED breathing patterns
16>.Constantly changing color of water droplets tailing
17>.Random full light and Random Off
18>.Random four color breathing effect
19>.Random color exterminate
20>.All LED full-color gradient
21>.Random 7pcs of all LED after getting brighter gradually eliminate
22>.Random two color water droplets tailing
23>.Random 4pcs LED's "stars" effect
24>.The default code inside the chip, the function is more abundant,So please do not update the code inside arbitrarily!
1>.Training welding skills
1>.User needs to prepare the welding tool at first.
2>.Please be patient until the installation is complete.
3>.The package is DIY kit.It need finish install by user.
4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
5>.Pay attention to the positive and negative of the components.
6>.Strictly prohibit short circuit.
7>.This DIY installation is more difficult to be installed, please be patient until the installation is complete!!!
8>.User must install the LED according to the specified rules.Otherwise some LED will not light.
9>.Install complex components preferentially.
10>.Make sure all components are in right direction and right place.
11>.Check that all of the LED can be illuminated.
12>.It is strongly recommended to read the installation manual before starting installation!!!
13>.The default code inside the chip, the function is more abundant,So please do not update the code inside arbitrarily!
7.Installation Steps(Please be patient install!!!):
1>.Step 1: Install 28pcs SMD RGB LED. There is a mark on one corner of the LED and there is a white dot on PCB where the LED can place on.These two marks are corresponding to each other and are used to specify the installation direction of the LED.
2>.Step 2: Install 1pcs IAP15W413S-35I SOP-28 at IC1.There is a dot on one corner of the IC and there is a white dot on PCB where the IC can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC.
3>.Step 3: Install 21pcs 120ohm 0805 SMD Resistor at R1~R21.
4>.Step 4: Install 1pcs 0.1uF 0805 SMD Capacitor at C1.
5>.Step 5: Install 1pcs SMD Button.
6>.Step 6: Install 1pcs MINI USB Female Socket at J1.
7>.Step 7: Install 1pcs 220uF SMD Aluminum Capacitor at C3.Pay attention to its installation direction.
8>.Step 8: Remove the protective film from the black acrylic surface.
9>.Step 9: Use adhesive to paste acrylic on LED description.Users need to prepare their own glue!!!
10>.Step 10: Connect to power supply and enjoy the LED flashing effect. Press button to change display effect.
