1.Description:
It is a digital tachometer.It uses LCD screen with backlight,which can display working time and 0-100% speed percentage.
2.Feature:
1).It is equipped with a wireless remote control,which can control the module through the remote control.
2).It can set slow start and slow stop time.
3).It can set upper and lower speed limits
4).It can set the totol woking time and stop when the time is up.
5).It can set the running time and stop time,and automatically cycle the start and stop time repeatedly.
6).It can set the limit of automatic start and stop times.
7).It uses electric buttons for acceleration and deceleration,which solves the problem that traditional potentiometers are fragile.
3.Parameter:
1).Product Name:Digital Tachometer
2).Input Voltage:DC 6.5V-55V
3).Instanyaneous Current:30A
4).Continuous Current:20A(Max)
5).Speed Regulation Type:Regulating Current
6).Speed Regulation Mode:Electric +/-
7).Speed Digital Display:0-100%
8).Speed Regulation Range:0-100%
9).Control Frequency:15KHz
10).Wiring Type:Barrier terminal block
11).Support Motor:Brushed motor
12).Security Mode:embedded
13).Work Temperature:-25℃~85℃
14).Work Humidity:5%~95%RH
15).Size:116*76*30mm
16).Remote Control Distance:Within 100 meters (in the open space without obstruction)
4.Function Settings:

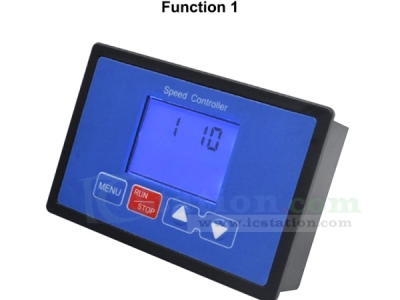

1).Function 1:Slow start time setting
1.1).Percentage setting range:0-100%,time range:0-10 seconds adjustable
1.2).Press the MENU button once to enter the function 1 setting button surface,press the plus and minus keys to set the time,long press MENU to save and exit (10% is 1 second,100% is 10 seconds).
2).Function 2:Slow stop time setting
2.1).Percentage setting range:0-100%,time range:0-10 seconds adjustable
2.2).Press the MENU button twice to enter the function 2 setting button surface,press the plus and minus keys to set the time,long press MENU to save and exit (10% is 1 second,100% is 10 seconds)
3).Function 3:lower limit of speed setting
3.1).Percentage setting range:0-80%
3.2).Press the MENU button 3 times to enter the function 3 button surface,press the plus and minus keys to set,long press MENU to save and exit.
4).Function 4:Speed upper limit setting
4.1).Percentage setting range:0-100%
4.2).Press the MENU button 4 times to enter the function 4 button surface,press the plus and minus keys to set the size value,long press the MENU button to save and exit.
5).Function 5:Acceleration and deceleration value setting
5.1).Speed value:1%,2%,5%,10%,15%,20%,25%,each time you press the plus or minus key,the speed will change accordingly.
5.2).Press the MENU button 5 times to enter the function 5-key interface,press the plus and minus keys to switch,long press MENU to save and exit.
6).Function 6:Motor running time setting
6.1).Time setting range:1 second - 99 hours 59 minutes 59 seconds
6.2).Press the MENU key 6 times to enter the function 6 key surface,the default is the maximum time of 99 hours,59 minutes and 59 seconds,the RUN/STOP key switches hours/minutes/seconds,and press plus or minus to adjust the size of hours/minutes/seconds.Press MENU to save and exit.
7).Function 7:Motor stop time setting
7.1).Time setting range:1 second - 99 hours 59 minutes 59 seconds
7.2).Press the MENU button 7 times to enter the function 7 button surface,the default is the maximum time of 99 hours,59 minutes and 59 seconds.MENU save and exit.
8).Function 8:Motor start and stop cycle times
8.1).Cycle times:1-999 times
8.2).Press the MENU button 8 times to enter the function 8-key interface,the default is a maximum of 999 times,press the plus and minus keys to adjust,long press MENU to save and exit.
9).Function 9:with or without timing option
9.1).0:no,1:yes
9.2).Press the MENU button 9 times to enter the function 9-key interface,the default 1 has timing function,0 has no timing,press the plus and minus keys to switch,long press MENU to save and exit.
10).Long press the RUN/STOP key to turn off the backlight.
5.Note:
1).The input must be positive and negative,and the input voltage must be equal to the rated voltage of the motor.For example,the rated voltage of the motor is 12V,the input governor is 12V,the rated voltage of the motor is 36V,and the input governor voltage is 36V.
6.Package:
1).1pcs Digital Tachometer
2).1pcs Remote Control
