Home > Power Module > Step Down Module > DC-DC Step Down Power Supply Module Buck Voltage Converter 4Bit 3.3V 5V 12V Adjustable Output

DC-DC Step Down Power Supply Module Buck Voltage Converter 4Bit 3.3V 5V 12V Adjustable Output

GY16075
5 9
$10.59 $7.41
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

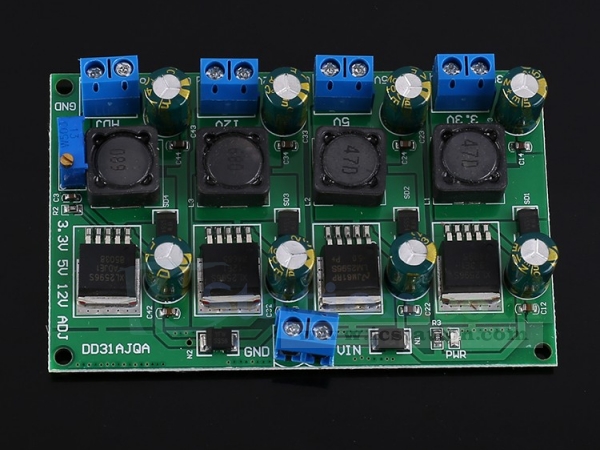

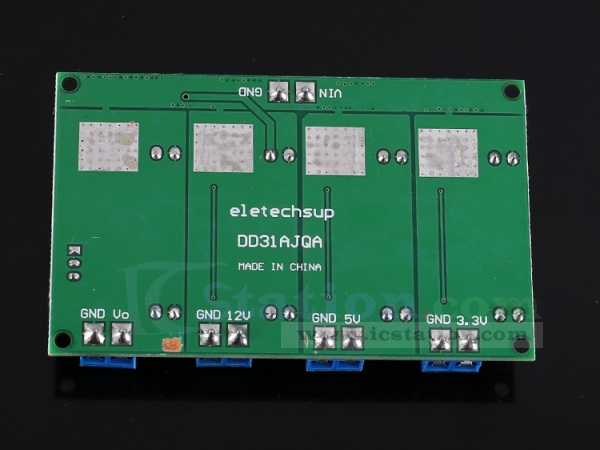

  It is a Step Down Power Supply Module with input DC 4.5V~30V and output DC 2V~28V. It can output three stable 3.3V/5V/12V voltage and one adjustable output voltage.

2.Feature:
  1>.Low ripple
  2>.High efficiency
  3>.Low power consumption
  4>.Ultra small volume
  5>.Fixed output voltage
  6>.Support input reverse connection protection
  7>.Support output short circuit protection
  8>.Support over current protection

3.Parameter:
  1>.Model:DD31AJQA
  2>.Output 3.3V: Input 4.5V~30V
  3>.Output 5.0V: Input 6.5V~30V
  4>.Output 12V: Input 13.5V~30V
  5>.Adjustable 2V~28V Output: Input 4.5V~30V
  6>.Output current:3A(Max)
  7>.Conversion efficiency:>85%
  8>.Output power:50W(Max)
  9>.Stand-by current:5mA
  10>.Operating Temperature:-20℃~85℃
  11>.Operating Humidity:5%~95%RH
  12>.PCB Size:88*55*16mm



There are currently no product reviews.
