Home > Power Module > Step Down Module > DC-DC Step Down Module 6 USB Interface 8A Buck Converter Power Supply Module DC 9V/12V/24V/36V to DC 5V

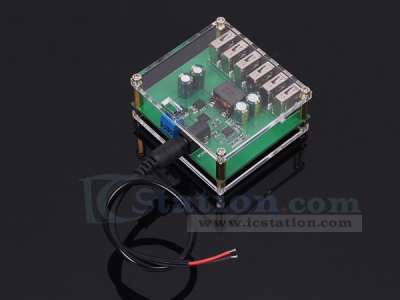

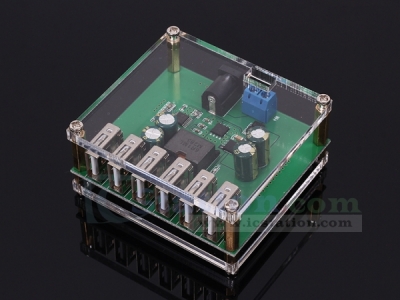

DC-DC Step Down Module 6 USB Interface 8A Buck Converter Power Supply Module DC 9V/12V/24V/36V to DC 5V

13290
5 9
$9.99 $6.99
Quantity5+10+15+20+
Price$6.95$6.85$6.80$6.75
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Description:
Automatic bust module, provide a stable power supply.Applicable to unstable voltage source or voltage conversion.

Features:
1>. Small size.
2>. Simple wiring.
3>. Fix output voltage.
4>. High quality terminal block.
5>. 6-Channel USB output.
6>. High current output.
7>. High conversion efficiency.
8>. Stable output.
9>. Dual interface free selection input.
10>. Support multiple devices to use at the same time.
11>. High Power.

Parameters :
1>. Module Name:6-USB 5V/8A Step Down module;
2>. Input Voltage:DC 8V-40V;
3>. Output Power: 5V/8A(8A is total output current);
4>. Efficiency: 95% (MAX);
5>. Module size: 68mm*62mm*34mm;
6>. Working temperature: -40°C-+85°C;
7>. Reverse connection protection:Yes;
8>. Over current protection:Yes;
9>. Over temperature protection:Yes;
10>. Load capacity: 8A(Max);
11>. Input interface:DC5.5*2.1cm Socket or Terminal;

Use Manual:
1>. Connect input power from DC5.5*2.1cm Socket or Terminal.
2>. Connect USB device.

Application:
1>. Mobile power
2>. Mobile phone
3>. Tablet
4>. Logger
5>. USB 5V powered device

Note:
1>. If you are using a battery, the fully charged voltage couldn't be higher than the module's maximum input voltage.
2>. Its maximum output current is 3A for one USB interface. Mobile phone charging current is generally 1-2A.
3>. It will only output 1A if your device's charging current is only 1A.

Package:
1>. 1pcs 6-channel USB power module
2>. 1pcs 30cm DC5.5*2.1cm power cable


Tested as below:



Tested by ICStation's Outstanding Partner 12voltvids:




Learn More Details in the Video:
(The language in the video is English)



Tested by ICStation's Outstanding Partner Maker Tutor:
