TDL-555 Touch Delay Switch LED Light DIY Kit Electronics Experimental DIY Electronic Soldering Practice

13185
5 9
$3.35 $2.35
Quantity10+30+50+
Price$2.20$1.99$1.75
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:
This is a DIY touch delay LED kit. You should solder it by yourself.

Install tools you need:
1>. Soldering iron
2>. Multimeter
3>. Solder wire
4>. Iron stand
5>. Diagonal cutting pliers
6>. The screwdriver
7>. Tweezers
8>. Long nose pliers
9>. Suction tin
10>. Cleaning sponge
11>. Screwdriver set

Parameters:

No. Product name Touch delay LED lights
1 Model TDL - 555
2 Standby current Less than 1mA
3 Standby indicator light With
4 Triggered Touch
5 Soldering difficulty Level Easy
6 Working voltage DC 5V
7 Working current Less than 90mA
8 Delay time Adjustable 3 seconds ~ 130 seconds.
9 Assembly instructions TOR format
10 Circuit board size 38mm*28.5mm(L*W)

Note: the power supply voltage is strictly forbidden. If you need to change the power supply voltage, please change R1.
The R1 resistance increases by 1 ohm each time the voltage is increased by 1 V.Maximum voltage 12V.
When wiring, the red line is the positive pole, black line is the negative pole.

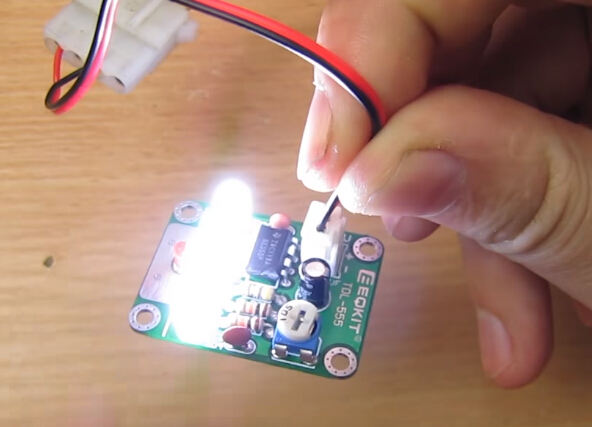

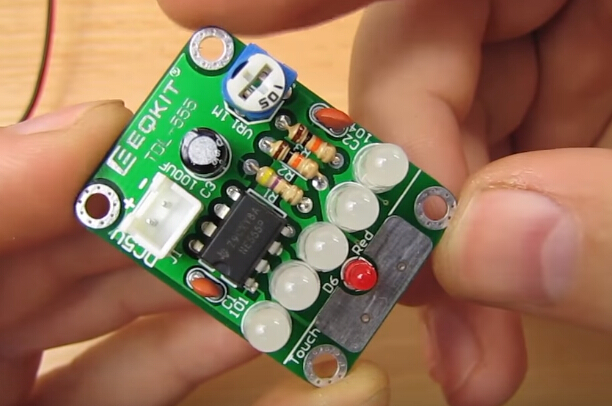

Finished Product Picture:
