Warm White Blue Flashing LED Music Butterfly Shaped Light DIY Kit LED Lighting Lamp Kit with Remote Controller

1.Description:

This kit is practical and interesting, a total of 178 elements, is the preferred material for learning electronic technology, electronic skill training, electronic assembly test.

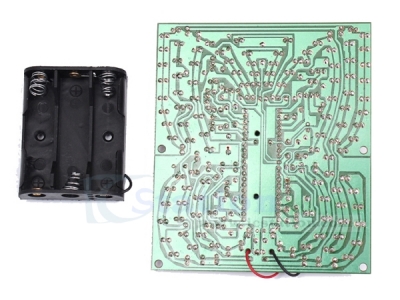

Circuit board design aesthetic science, pad large, thicker wire, all using in-line components, easy assembly, board size is about 11*9.5cm. The function is very powerful, remote control in hand, follow one's inclinations beautiful butterfly lamp easily control.

Suitable for Christmas, New Year's day, Spring Festival, valentine's day festival festival, sweet moment to express love gift!

For lighting can also be installed to the house, can change a variety of shapes and brightness by remote control. (up to 4 w lamp power, the actual feeling of brightness not less than 3 w LED bulbs, the light is warm color, completely can use as a lamp, if you want to be more bright, can reduce the current limiting resistor, the power can reach more than 8 w).

This paragraph kit comprising 118 super bright warm white LED (nominal brightness 2000-3000mcd), 7 blue LED and 8 Pink LED array is composed of a butterfly shaped pattern, by micro infrared remote controller control computer chip presents multi state lights shining in the daytime pattern, that is, the effect is still very obvious, and can conveniently control 13 music playing (monophonic Music), very dynamic, fun, absolutely is a very fashionable and attractive electronic works. This kit assembly production of relatively simple, programs are written into the MCU chip, installed can use.

Using 3.7-5 v dc power supply, current 0.8 A above (need to bring your own, such as 3 section 5, battery, 5 v direct filling head, lithium battery, etc.)

2.Remote operating instructions(default automatic playing automatic)
1>. Remote control of playing
After starting up, it will play 13 songs automatic.It also has 18 kinds of lighting effect accompany with the music rhythm.The “play”button on the remote control can also change this state at any time.
The number button on remote control “0-9” and “PRT” can choose a song about butterfly directly.
Press “pre”and “next”can control the play of 13 songs.All music has the lighting effect when playing.
2>. Other buttons
1). Power button:stop musics and all LEDs(In addition to the standby status indicator L126)
2). Mute button:stop music,LED all lights;
3). MODE button:The LED effect becomes small butterfly shape and large butterfly shape;
4). U/SD button:The lighting effect becomes automatically playing in large,middle and small butterfly shape;
5). EQ button:The lighting effect becomes small butterfly shape;
6). VOL- button:Change the lighting shape of butterfly (7 changes);
7). VOL- button:Change the lighting shape of butterfly (7 changes).

3.Assembly Notes:

1>. There are five short-circuit connctor on PCB which have been marked J1/J2/J3/J4/J5.User can weld them by pins that cut from resistor or LED at first.

2>. Assembly steps: All components should be installed followed by the small to big, and try to follow the principle of circuit board, the short cable can be replaced with excess pins of resistance.Pay attention to cut excess pin slightly and don’t pull the pin.The false operation will cause the circuit board copper foil broken easily,result of the the installation failure.It needs stable power supply,the working current is above 800mA.

3>. Non-remote kit isn’t equipped with remote receiver and remote controller,and the corresponding elements are not installed.

4>. Make sure the power supply is above 3.7-5.5V 0.8A,pay attention to the direction of positive and negative.There have mark in “+” “-“ of all LED,electrolytic capacitor,remember do not put is reverse.
