DC 3.3V 1.28inch IPS LCD Display Screen Round RGB 0.7mm 12Pin 240*240 GC9A01 Driver SPI Interface 240x240 Resolution

GY18317
5 9
$12.59 $8.81
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

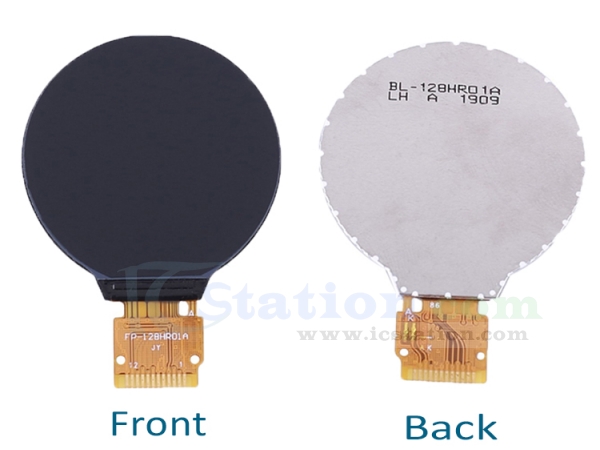

    It is a 1.28inch 240*240 IPS LCD Display Screen.It uses IPS color display screen and the display effect is more vivid than ordinary TFT LCD effect.

2.Features:
    1>.IPS color display screen
    2>.4Pin SPI communication
    3>.Adjustable display direction
    4>.Full viewing angle display

3.Parameters:
    1>.Product Name:1.28inch 240*240 IPS LCD Display Screen
    2>.Material:IPS color display screen
    3>.Resolution:240*240
    4>.Driver Chip:GC9A01
    5>.Display Size:1.28inch
    6>.Display area:D32.4mm
    7>.Panel size:35.6*38.1*1.5mm
    8>.Interface type:4-Pin SPI
    9>.Work voltage:3.3V
    10>.Pins:0.7mm 12Pin
    11>.View:Full viewing angle display
    12>.Working Temperature range:-20℃~70℃
    13>.Working Humidity Range:5%-95%RH

4.Pin definition:
    1>.Pin-1:GND.Power GND.
    2>.Pin-2:LEDK.Backlight GND.
    3>.Pin-3:LEDA.Backlight VCC.
    4>.Pin-4:VDD.Work Power VCC.
    5>.Pin-5:GND.Power GND.
    6>.Pin-6:GND.Power GND.
    7>.Pin-7:D/C.Data and Command select pin.
    8>.Pin-8:CS.Chip select pin. Low level is enable and High disable.
    9>.Pin-9:SCL.Data clock pin.
    10>.Pin-10:SDA.Data input/output pin.
    11>.Pin-11:RESET.Reset device.
    12>.Pin-12:GND.Power GND.

5.Application:
    1>.Instrument display
    2>.Mobile devices
    3>.Wearable display device
    4>.Real-time monitoring and display equipment

6.Package:
    1pcs 1.28inch 240*240 IPS LCD Display Screen
