1.77 Inch LCD Screen SPI Serial Port Module ST7735 Driver 128*160 Resolution TFT Display Module

GY19722
5 9
$11.99 $8.39
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
 It is a 1.77 inch LCD screen.It has a 1.77-inch LCD screen,which is compact and easy to carry.

2.Feature:
 1).It uses an LCD screen and has no electromagnetic radiation,which is safer for the human body.
 2).It uses standard technology,high product quality and safer to use.
 3).There is a layer of film on the product to better protect the screen.
 4).The screen resolution is 128*160 for clearer viewing.

3.Parameter:
 1).Product Name:1.77 Inch LCD Screen
 2).Product Size:1.77inch
 3).Resolution:128*160
 4).Viewing Direction:12 o'clock
 5).Driver Chip:ST7735S
 6).Interface Type:SPI
 7).Display Area:28x35.04mm
 8).Number of Headers:8pin
 9).Working Voltage:DC 3.3V
 10).Display Color:RGB
 11).Work Temperature:-20℃~70℃
 12).Work Humidity:5%~95%RH
 13).Size:56*35*3mm

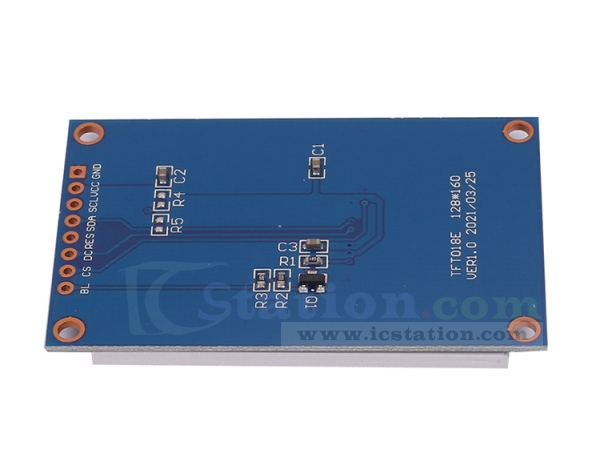

4.Pin Interface:
 1).GND:power ground
 2).VCC:power supply positive
 3).SCL:SPI clock input
 4).SDA:SPI data input
 5).RES:Reset
 6).DC:data/command selection
 7).CS:SPI chip select input
 8).BL:Backlight control input

5.Package:
  1pcs 1.77 Inch LCD Screen
