DC to DC Adjustable Step Up Boost Converter Power Supply Module Voltage Regulator DC 3-35V to DC 3.5-35V with Voltmeter Display

10525
5 1
$7.69 $5.38
Quantity5+10+30+
Price$5.25$5.10$4.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$9.75-6%Bundled Price:$9.17

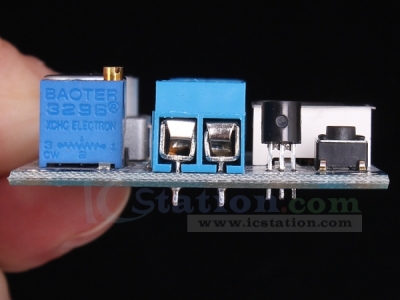

Product Introduction:
1>. Input Voltage Range: DC 3-35V (Note: the input voltage is less than 4V, voltmeter failure)
2>. Input Current: 7A
3>. Output Voltage Range: DC 3.5-35V (please ensure that the output voltage is above on the input voltage)
4>. Output Current: 6A (max)
5>. Output Power: 75W (when the input and output voltages greater than 16V up to 100W)
6>. Conversion Efficiency: 96% (max)
7>. Voltmeter Range: 4 to 40V
8>. Short Circuit Protection: yes(limit current 14A)
9>. Input Reverse Polarity Protection: none
10>. Size: 67*42*12mm(L*W*H)

Voltmeter Manual Calibration Method:
1>. Output Voltage Calibration Steps:
  Step 1: adjust the right button so that “OUT” LED lighted,the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and “OUT” LED flashes in synchronization so that you enter the output voltage calibration mode.

  Step 2: press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press.

  Step 3: press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save.

2>. Input Voltage Calibration Steps:
  Step 1: adjust the right button so that “IN” LED lighted, the voltmeter shows the value of input voltage; press the right button for more than 2 seconds, release, voltmeter and “IN” LED flashes in synchronization so that you enter the input voltage calibration mode.

  Steps 2 and 3: consistent with the output voltage calibration method.
Note: If you feel voltmeter accuracy to meet the requirements, then do not need to perform the following operations.

Connection Picture:

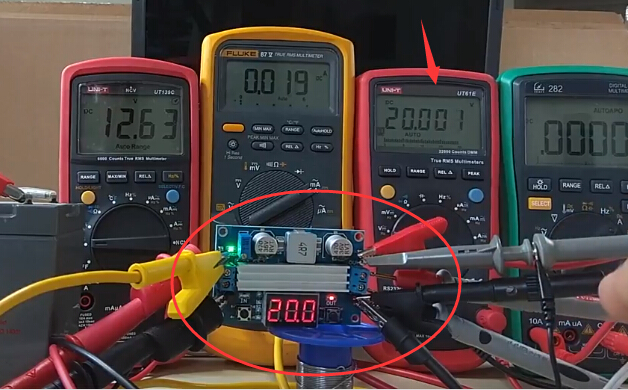

Tested as Below:

1) DC 7.6V to DC 19V, Conversion Efficiency is 91%

2) DC 12V to DC 19V, Conversion Efficiency is 93%

3) DC 18V to DC 32V, Conversion Efficiency is 95%


I. Tested by ICStation's Outstanding Partner RC Tractor Guy:

Learn More Details in the Video:
(The language in the video is English)



II. Tested by ICStation's Outstanding Partner bzoli5706:

Learn More Details in the Video:
(The language in the video is English)
