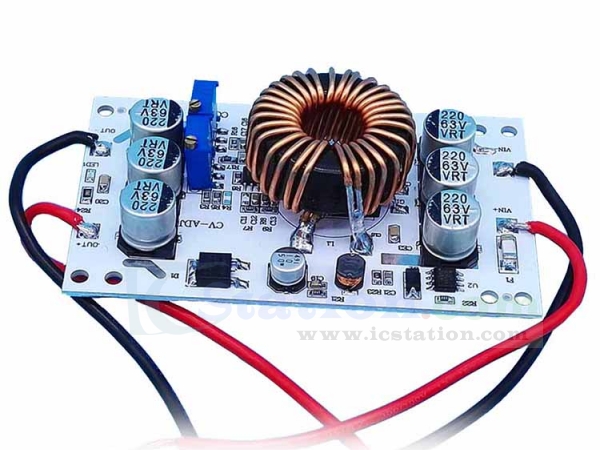

1.Description:
It is a 600W boost power module.It is a non-isolated boost module.It can convert DC 10V-60V to DC 12-60V.
2.Feature:
1).Its conversion efficiency is high.

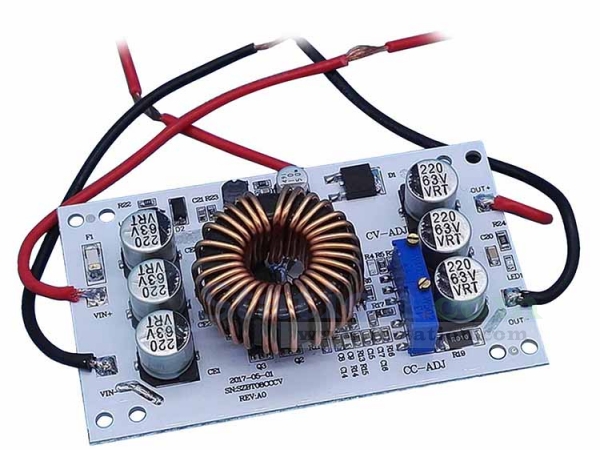

2).It has CV-ADJ potentiometer and CC-ADJ potentiometer,which can adjust the output voltage and current.
3).It has a wide range of applications.It can charge batteries,lithium batteries,etc.

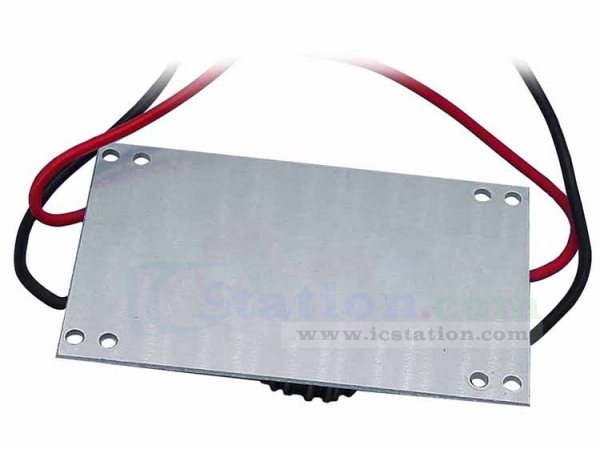

4).It uses a high thermal conductivity aluminum substrate design.
3.Parameter:
1).Product Name:600W Boost Power Module
2).Input Voltage:DC 10V~60V
3).Input Current:10A(Max)
4).Static Working Current:10mA
5).Output Voltage:DC 12V~60V
6).Output Current:10A
7).Constant Current Range:0.2A~10A
8).Working Frequency:150KHz
9).Conversion Efficiency:92%~96%
10).Work Temperature:-40℃~85℃
11).Work Humidity:5%~95%RH

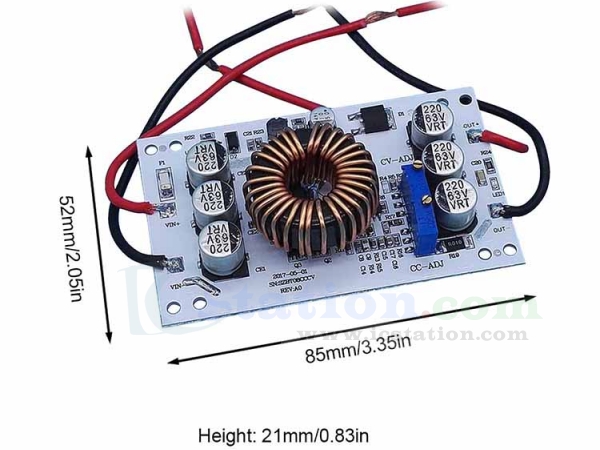

12).Size:85*52*21mm

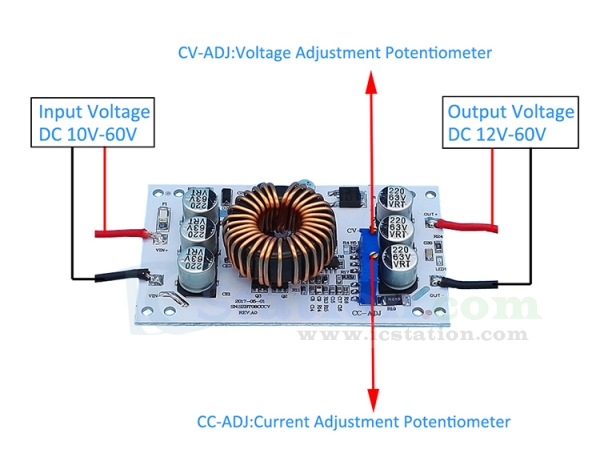

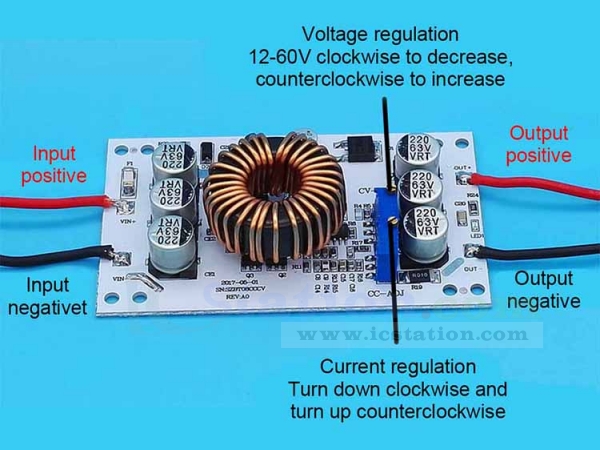

4.Output Voltage Adjustment:
1).Adjust the CV-ADJ potentiometer,according to your battery or LED,set the output voltage to the voltage value you need.
2).Turn the voltage down clockwise,and turn it up counterclockwise.
5.Output Current Adjustment:
1).Adjust the CC-ADJ potentiometer clockwise about 20 turns,set the output current to the minimum,connect the LED,and adjust the CC-ADJ potentiometer to the current you need.
2).For battery charging,after the battery is discharged,connect to the output and adjust the CC-ADJ to the current you need.(When charging,you must use the discharged battery to adjust,because the battery is left The more power,the lower the charging current.)
3).Please do not adjust the current in a short-circuit mode.The circuit structure of the booster module cannot be adjusted in a short-circuit mode.
6.Instructions for Use:
1).Constant voltage adjustable range:DC12-60V (clockwise to decrease,counterclockwise to increase)
2).Constant current adjustable range:0.2A-10A (clockwise to decrease,counterclockwise to increase)
3).When the input current exceeds 6A,heat dissipation needs to be strengthened (the aluminum substrate is attached to the flat metal part).
4).The input voltage cannot be lower than 10V and exceed 60V.
5).The maximum input current cannot exceed 10A,and the power cannot exceed 600W.
6).When using,it must be ensured that the input voltage is lower than the output voltage by more than 2V.
7).Before connecting the load,please adjust the required voltage and current when there is no load (the no-load voltage should be increased by 3-5V when the current is constant).
8).When using a switching power supply or other secondary power supply,please make sure that the power of the power supply should be more than twice the power of this module.
7.Note:
1).The input and output cannot be reversed.
2).The input voltage should not be lower than 10V.Too low input voltage will damage the power supply.(Be careful to prevent over-discharge of the battery when using the battery)
3).When working,the input and output voltage and current can not exceed the maximum value,so as not to damage the power supply.
4).Pay attention to ventilation and heat dissipation when working with full load for a long time to extend the service life of the power supply.
5).Pay attention to dust and moisture.
8.Application:
1).DIY a regulated power supply,input 12V,output can be adjusted from 12-50V.
2).To supply power to your electronic equipment,you can set the output value according to your system voltage.
3).As the vehicle power supply,it can supply power to your laptop and various digital products.
4).DIY a high-power notebook mobile power supply.
5).The solar panel stabilizes the voltage.
6).Charging batteries,lithium batteries,etc.
7).Drive high-power LED lights.
9.Package:
1pcs 600W Boost Power Module
