DIY Kit AT89C2051 Digital Temperature Controller Microcontroller Design Thermometer Electronic Soldering Kits

11746
5 9
$8.59
Contact us for wholesale price
- OR - - OR - Add to Wish List

Packing List:

Number Name Specification Quantity
R1,R2,R3,R4,R5,R6,R7 Resistor 470 ohm 7
R8,R9,R10,R11,R14 Resistor 4.7K ohm 5
R12 Resistor 10K ohm 1
R13 Resistor 1K ohm 1
C1,C3 Electrolytic Capacitor 10uF 2
C2 Ceramic Capacitor 0.1uF 1
C4,C5 Ceramic Capacitor 30pF 2
Q1,Q2,Q3,Q4 Triode 9012 4
Y1 Crystal Oscillator 12m 1
S1,S2,S3 Button Switch 6x6x10mm 3
IC1 MCU AT89C2051 1
  IC Socket 20P 1
IC2 Temperature Sensor DS18B20 1
DS1 Digital Tube 3-Bit Common Anode 1
X1,X2 Connector Socket 2P 2
LED1 LED 3mm Red 1
  PCB 50x55mm 1


Note:
1. Input power is 4.5V-5.5V.
2. "X1" is use for input. "X2" is used for output voltage when the measured temperature is higher than the set temperature.

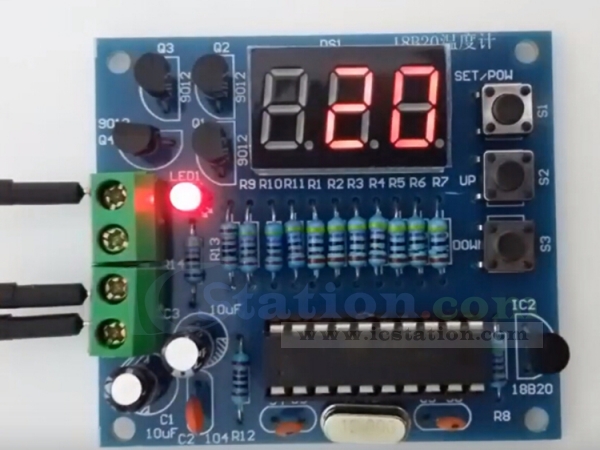

Finished Product Picture:

Circuit:



I. Tested by ICStation's Outstanding Partner The Unwanted Guy:

Learn More Details in the Video:
(The language in the video is English)



II. Tested by ICStation's Outstanding Partner arduinoLab:

Learn More Details in the Video:
(The language in the video is Russian)
