DC 12V Battery Charging Monitor Overcharge Controller Battery Voltage Protector

GY20586
5 9
$9.99 $6.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

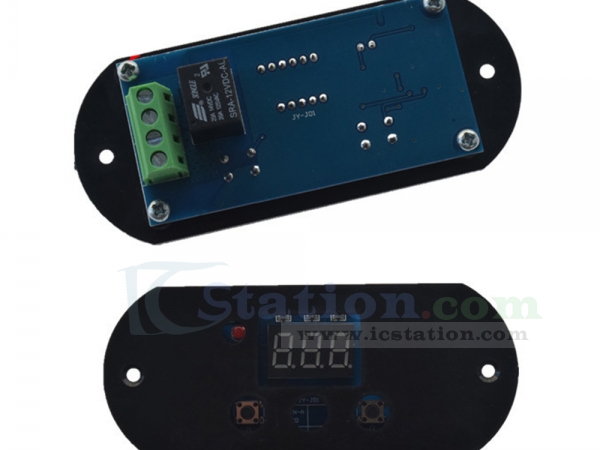

  It is a battery charging control board.When the battery voltage is lower than the set undervoltage value,the controller will automatically turn on the power supply to charge the battery;when the battery voltage is higher than the starting value,the module will automatically disconnect the power supply to charge the battery.

2.Feature:
  1).Its undervoltage and overvoltage values ??can be adjusted.
  2).It has a digital display that can show the voltage of the battery.
  3).It has a memory save function,which can remember the last set value.
  4).It has an input indicator.

3.Parameter:
  1).Product Name:Battery Charging Control Board
  2).Input Voltage:DC 10V-16V
  3).Load Power:20A relay

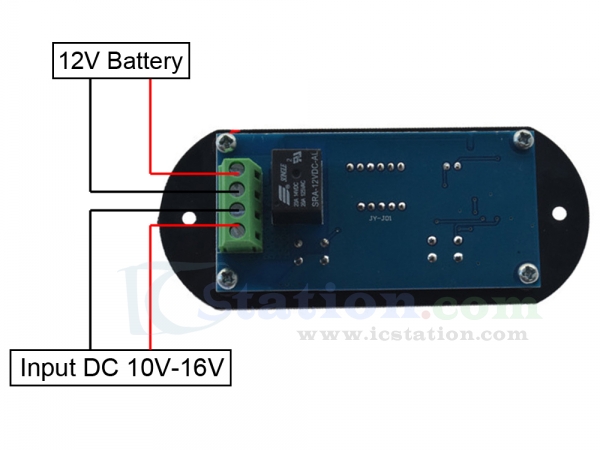

  4).Wiring Method:BAT is connected to the charger, OUT is connected to the load
  5).Answer Size:82*42mm
  6).Mounting Hole Diameter:3mm
  7).Work Temperature:-25℃~85℃
  8).Work Humidity:5%~95%RH
  9).Size:110*47*24mm

4.Setting instructions:
  1).Undervoltage value adjustment instructions:
    1.1).View the current parameters:Press the J1 button to display the currently set undervoltage parameter value (charging start value).
    1.2).Set the undervoltage parameter:Press and hold the J1 button until the digital tube flashes,and use J1 and J2 to adjust the undervoltage parameter value.
  2).Instructions for overvoltage adjustment:
    2.1).View the current parameters:Press the J2 button to display the currently set overvoltage parameter value (charging stop value).
    2.2).Set the overvoltage parameter:long press the J2 button until the digital tube flashes,and use J1 and J2 to adjust the overvoltage parameter value.

5.Installation steps:
  1).Align the circuit board with the panel and install 4 screws.
  2).Put the product into the device you have drilled and install 2 fixing screws.
  3).Paste the panel film.

6.Package:
  1).1pcs Battery Charging Control Board
  2).1pcs mounting panel
  3).1pcs panel film
  4).4pcs mounting screws
  5).2pcs fixing screw
  6).2pcs Nut
