Home > Power Module > Step Down Module > DM09 DC-DC Step Down Power Supply Module 3.3V 10A Voltage Conveter Buck Output DC 5V-28V to DC 3.3V

DM09 DC-DC Step Down Power Supply Module 3.3V 10A Voltage Conveter Buck Output DC 5V-28V to DC 3.3V

15094
5 9
$6.29 $4.40
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

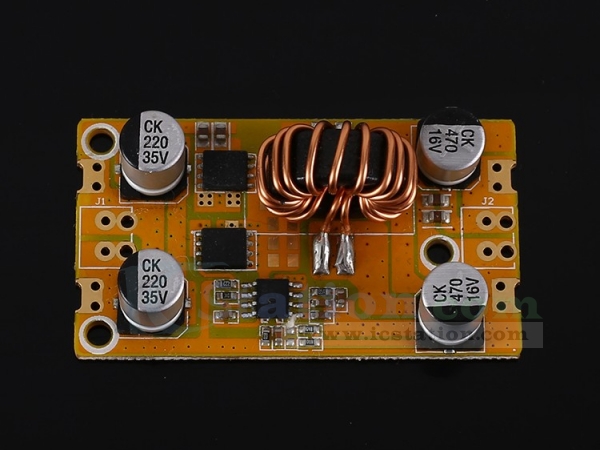

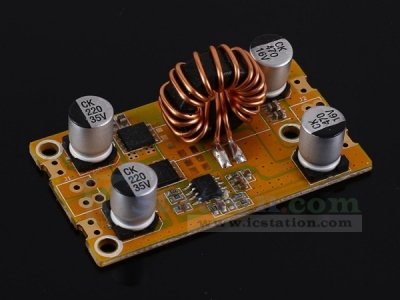

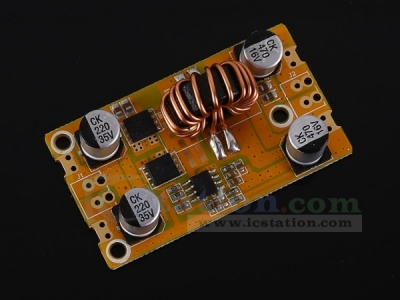

  It is a Step Down Power Supply Module with input DC 5V~28V and output DC 3.3V.It can provide a stable 3.3V output.

2.Feature:
  1>.Low ripple
  2>.High efficiency
  3>.Low power consumption
  4>.Ultra small volume
  5>.Fixed output voltage

3.Parameter:
  1>.Model:DM09
  2>.Input voltage:DC 5V~28V
  3>.Output voltage:DC 3.3V
  4>.Output current:10A(Max)
  5>.Conversion efficiency:>91%
  6>.Output ripple:<150mV
  7>.Work frequency:300KHz
  8>.Stand-by current:5mA
  9>.Operating Temperature:-20℃~85℃
  10>.Operating Humidity:5%~95%RH
  11>.PCB Size:55*31*20mm

4.Package:
  1pcs DC-DC 3.3V 10A Step Down Power Supply Module
