Dual Frequency RFID Reader Wireless Module 5cm 13.56MHz 125KHz ISO14443A EM4100

12448
5 9
$15.99 $11.19
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:

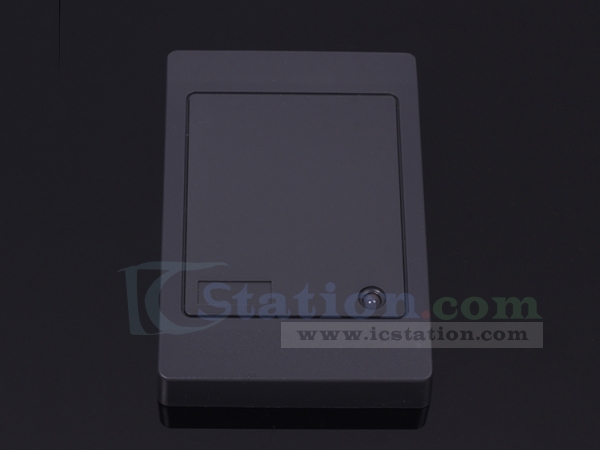

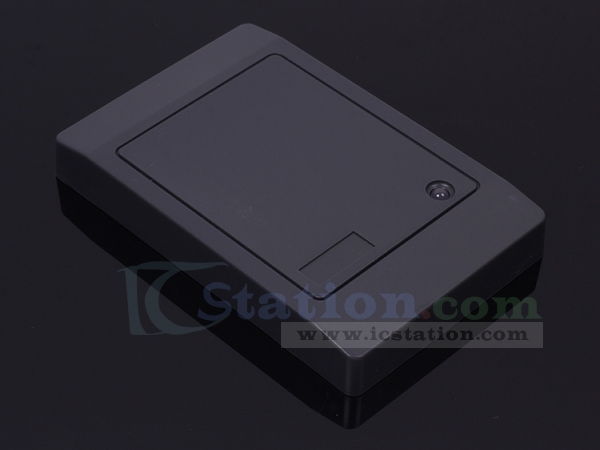

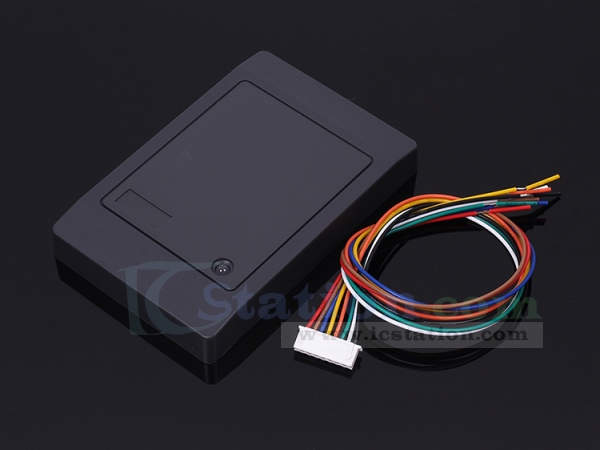

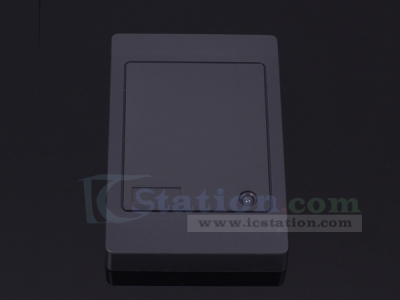

7304D entrance guard card reader, it has brief appearance. It built-in 13.56MHz and 125KHz dual frequency card reading function,
supports ISO14443A card and EM4100 card reading operation.

Features:
1>. Power: DC 5-15V
2>. Operating Current: max<100mA
3>. Operating Frequency: 13.56MHz+/-5KHz; 125KHz
4>. Support common ISO14443A protocol
5>. Support EM4100 and its compatible card
6>. Card Reading Distance: IC>5cm; ID>5cm
7>. 1 channel Wiegand data output port, support WG26, WG34 multiple format to choose
8>. Card sensor speed is lower than 100ms
9>. 1 channel LED control input
10>. 1 channel BUZ control input
11>. Size 74*115*16mm
12>. Operating Temperature: -20~60 Celsius
13>. Operating Humidity: 10%-95%

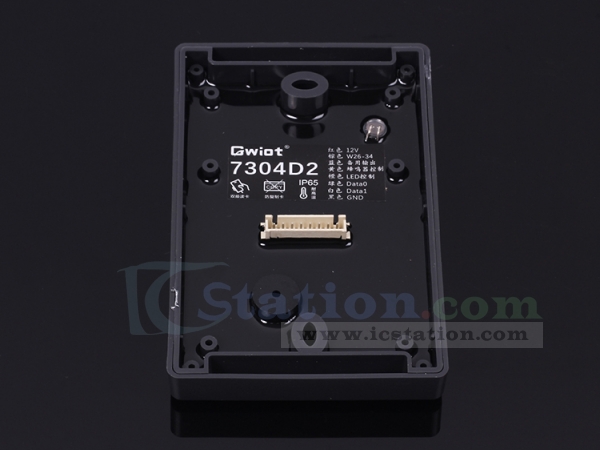

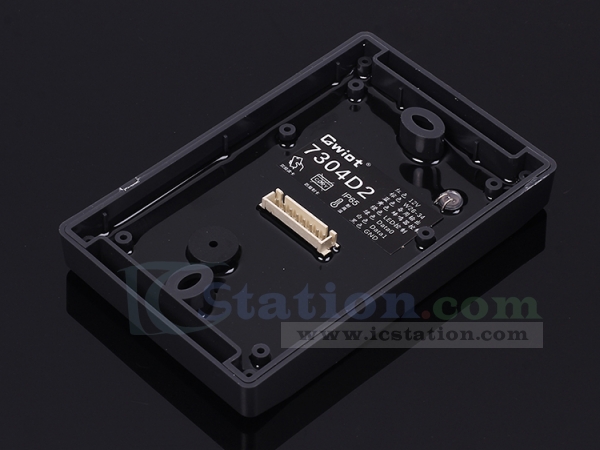

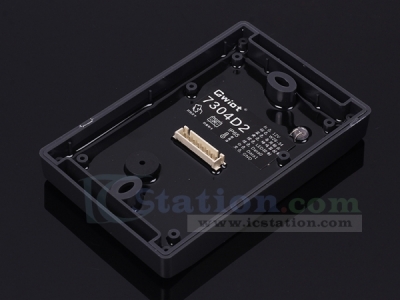

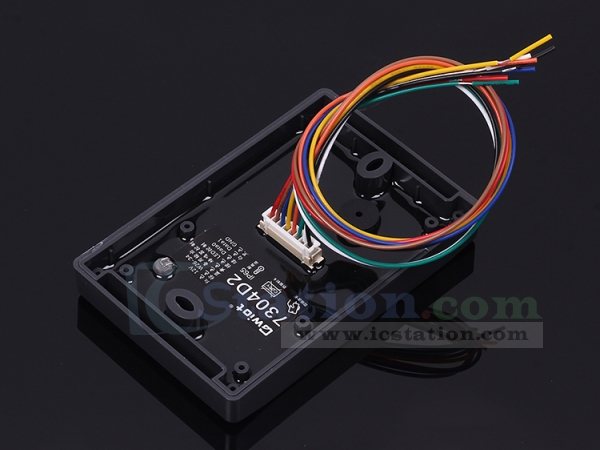

Connection Introduction:

No. Color Name Introduction
1 Red VCC Power Input Port
2 Brown FOR Wiegand Format Selection
3 Blue   Undefined
4 Yellow BUZ Buzzer Control
5 Orange LED LED Control
6 Green D1 Wiegand Output
7 White D0 Wiegand Output
8 Black GND Power Ground

Support Common Card List:

ISO14443 TYPE A 1.NXP_Mifare 1K
2.NXP_Mifare 4K
3.NXP_Mifare mini
4.Ultralight(C)
5.Mifare PlusX(S)
6.Desfire D21 D41 D81
7.NTAG203(F)
125KHZ 1.EM4100
2.EM4200
3.JT120

Data Output Format:
When it sensors the card, the serial number will be output via Data 0, Data 1 two data wire
Data 0 and Data 1 are high level when there is no data output
Logic Definition:
   Data Bit 0: it will generate 200us low level on Data 0 wire.
   Data Bit 1: it will generate 200us low level on Data 1 wire.
   Every data length is 2200us.
   Every Mifare card has a serial number with 4 bytes, users should output the last three bytes.
   Add the first 12-bit even check bit in the front and add the last 12-bit odd check bit in the back, 26-bit data in total.
For Example:
   Card number is 6B 3D 12 D6
   Output data is 3D 12 D6

Wiegand26 Encode:

0 00111101 00010010 11010110 1
Even Check 3D 12 D6 Odd Check

Notice:
1). Wiegand interface belongs to short distance transmission interface, its connection distance should be no longer than 100m.
    Under complex circumstances, please use shielded wire.
2). Card reader belongs to RF series product, please keep it away from interference source.
3). Please use it in safe conditions.

Applications:
1>.Attendance Fingerprint Read Write Module
2>.Entrance Guard Intercom Read Write Module
3>.Replicator
4>.Attendance fingerprint card reader module
5>.Entrance guard intercom card reader module
