Home > Function Module > PWM Module(new) > 4.5-35V 90W PWM DC Motor Speed Control Regulator Module 5A Switch Controller Regulator LED Dimmer Board 20KHz

4.5-35V 90W PWM DC Motor Speed Control Regulator Module 5A Switch Controller Regulator LED Dimmer Board 20KHz

12393
5 9
$2.89 $1.97
Quantity5+10+
Price$2.49$2.25
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Parameters:

No. Parameter Value
1 Operating Voltage DC 4.5-35V
2 Output Current 0-5A
3 Output Power 90W (max)
4 Quiescent Current 7uA (standby)
5 PWM Duty Cycle 1%-100%
6 PWM Frequency 20Khz
7 Size 30*26*14mm

Notice:
1>. DC motor speed regulator input should be DC power, and it cannot connect AC power (such as AC 20V), or it will be burnt.
2>. DC power positive and negative cannot be connected reversely, or the speed regulator will get damaged.
3>. There is no difference between positive and negative of the motor. When the operating direction does not correspond to your expectations, you can change the direction by adjusting  the wire sequence.
4>. Adjusting the rotary knob of the potentiometer can change the output duty cycle, and the rotating speed of the motor will be changed.

Size:

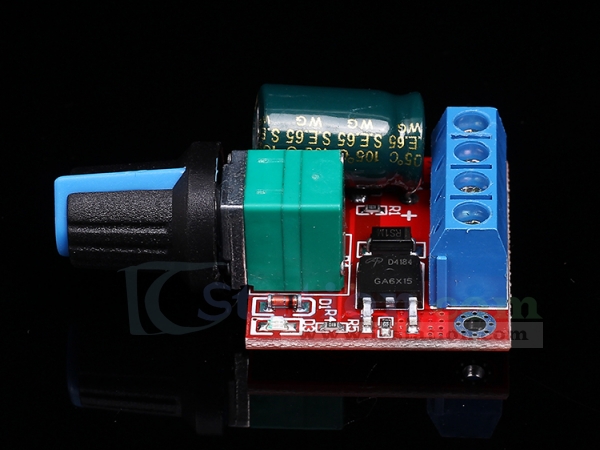

Product Picture:

Quantity5+10+
Price$2.49$2.25
