High-Power Stereo Digital Power Amplifier Board 12V 24V 30W+30W

13552
5 9
$4.39
Quantity100+
Price$3.00
Contact us for wholesale price
- OR - - OR - Add to Wish List
1.Description:

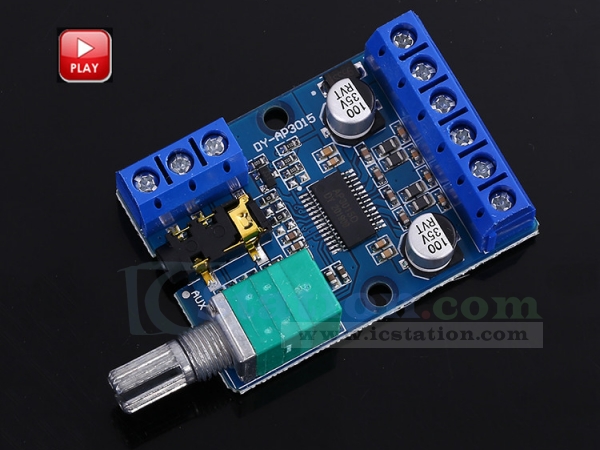

    DY-AP3015 is a high-power stereo audio module. Dual channels audio signal output.Built-in amplifier module therefore it can connect to loudspeaker directly.It is ideal for DIY speakers and transponders.

2.Features:
    1>.Width work voltage range
    2>.Applicable multiple type speakers
    3>.Knob adjustment
    4>.Support reverse connection protection
    5>.Support short circuit protection
    6>.Self-recovery overheat protection

3.Parameters:
    1>.Product name:DY-AP3015 Stereo Power Amplifier Module
    2>.Model:DY-AP3015
    3>.Work Voltage:DC 8V-24V
    4>.Work Mode:Class D(PWM)
    5>.Channel:Dual channel
    6>.Output Power:
        6.1>.Output power 18W*2 at 12V 4ohm
        6.2>.Output power 10W*2 at 12V 8ohm
        6.3>.Output power 15W*2 at 16V 8ohm
        6.4>.Output power 20W*2 at 20V 8ohm
        6.5>.Output power 30W*2 at 24V 8ohm(Need add extra heat sink!)
    7>.Match speaker(30W~150W):
        7.1>.4ohm at 8V~12V
        7.2>.8ohm at 8V~24V
    8>.Work Temperature:-40℃~85℃
    9>.Work Humidity:0%~95%RH
    10>.Module Size:59*32*14mm

4.Use steps:
    1>.Choose the right speaker and connect as shown in wiring diagram.
    2>.Connect to right power supply from input terminal.
    3>.Connect audio signal from 3.5mm socket or blue terminal.
    4>.Test and use.

5.Application:
    1>.Modified speaker
    2>.Amplifier equipment
    3>.Repair replacement

6.Note:
    1>.The power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference.
    2>.Recommended power supply voltage DC 8~24V.Module will be damaged if input voltage is more than 26V.
    3>.Input voltage can not more than 12V if connect 4ohm speaker.
    4>.Input voltage can not more than 24V if connect 8ohm speaker.
    5>.It is recommended to use a power supply of 2A or higher.
    6>.It need add extra heat sink if output power is more than 20W*2.
    7>.Please don’t use too long wires to avoid signal interference.
    8>.It is recommended to use a speaker above 30W to avoid speaker damage.
    9>.Please read use manual and description before use.
