Description:
NOTE: This LED cube is DIY Kit, user need some electronic basis and soldering knowledge to assemble it.
Parameters
1>. Power Supply Voltage: 4.5~5.5V
2>. PCB Size: 11.1x12.7CM (LxW)

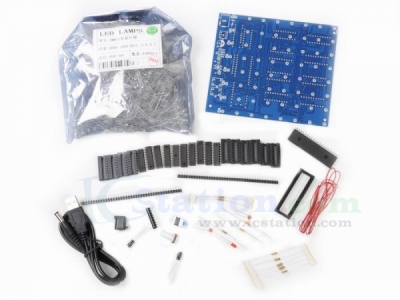

Packing List:
| NO. | Component Name | QTY |
| 1 | PCB | 1 |
| 2 | 3mm white blue LED | 512 |
| 3 | XH2.54-40P round female pin | 2 |
| 4 | 20P IC socket | 9 |
| 5 | 74HC573 DIP | 9 |
| 6 | USB to DC005 cable | 1 |
| 7 | DC005 power socket | 1 |
| 8 | 18P IC socket | 1 |
| 9 | ULN2803 DIP | 1 |
| 10 | 40P IC socket | 1 |
| 11 | STC12C5A60S2 (with code) | 1 |
| 12 | A09-103 Resistor | 1 |
| 13 | 8*8 Self-locking switch | 1 |
| 14 | 10uf 25V electrolytic capacitor | 2 |
| 15 | 12MHz crystal | 1 |
| 16 | 22pf ceramic capacitor | 2 |
| 17 | 470ohm resistor | 8 |
| 18 | 4.7K ohm resistor | 2 |
| 19 | LED 3mm | 1 |
| 20 | 0.8mm cable | 1 |
Download Installation Manual:
https://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/3531.zip
Tested by ICStation's Outstanding Partner SinKi:
Learn More Details in the Video:
Tested by ICStation:
| Quantity | 3+ | 5+ |
| Price | $16.60 | $16.10 |
