ICStation DIY Kits Infrared Wireless Module WIFI IR Sound Voice Infrared Transmission Module

5026
5 2
$4.99 $3.49
Quantity10+50+100+
Price$2.85$2.60$2.35
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$8.18-6%Bundled Price:$7.69

Description:

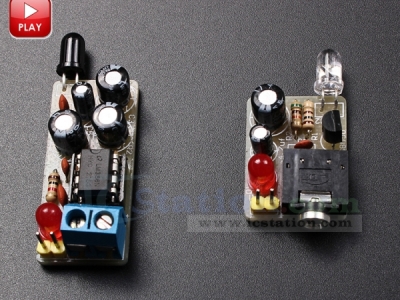

The basic principle of using the Red Rumble Kit is the sound caused by infrared (laser) vibration, which then receives an infrared vibration signal at the infrared receiver diode of the receiver circuit, and the signal is demodulated to achieve sound attenuation.
Transmission distance can reach one meter, which can be used to make short-range wireless speakers.


Parameter:
Infrared transmitter
Operating voltage: 12V
PCB size: 19 * 25mm

Infrared receiving end
Operating voltage: 4 ~ 12V
Driver Speaker: 0.5W-10W Speaker 1
PCB size: 17 * 39mm


Circuit Theory:
The transmitting end: the headset port, the audio signal input through the transistor Fat S8050, an infrared transmitter to drive the tube, and the audio signal is transmitted in the form of infrared.

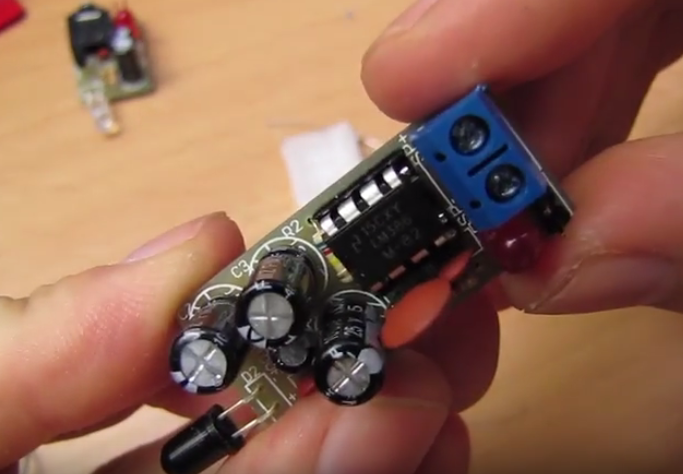

The receiving end: the infrared receiving tube for receiving the infrared signal transmitter, converted into an audio signal through the LM386 audio amplifier chip, and the audio output signal can be amplified

The Transmitter Schematics:

The Receiver Schematic
