4-layer 3D Light Flashing LED Cylinder Soldering Project Kits, DIY Blue LED Lamp for Christmas Decoration

GY18151
5 9
$7.59 $5.31
Quantity3+5+10+
Price$5.10$4.99$4.70
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Introduction:
It is an easy make four-layer round led dimensional cylinder kit. All are DIP components.
It has more than 23 kinds of special led gradient effect. Some kinds of the effect is star-flashing and lightning effect.
It also has many spin move effect and led breathing effect. All of the effects is gradual change light up instead of directly light up that makes the led animation looks more gentle.
User can hang it up on the Christmas tree to simulate the star flashing effect.
Soldering grids of each led layer by hand would look terrible, so it has a dual application round acrylic that can as a template to hold the led in place that help you to solder each layer of the led grids more accurate and the same level.
It also use as a case to reinforce the bottom.This acrylic template is important for quality soldering and it makes the led cylinder easier and more precise.


2.Feature:
    1>.28pcs highlight 5mm LED
    2>.23 kinds display effects
    3>.More than 10 random display modes
    4>.Toggle Switch control flashing mode

3.Parameter:
    1>.Work Voltage:DC 4.5V~5.5V
    2>.Work Current:500mA
    3>.Work Module:Switch Control
    4>.Work Temperature:-40℃~85℃
    5>.Work Humidity:0%~95%RH
    6>.Size(Installed):44*44*108mm

4.Set Method:
    Switch button to change display mode.

5.Installation Tips:
    1>.User needs to prepare the welding tool at first.
    2>.Please be patient until the installation is complete.
    3>.The package is DIY kit.It need finish install by user.
    4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
    5>.Pay attention to the positive and negative of the components.
    6>.Strictly prohibit short circuit.
    7>.This DIY installation is more difficult to be installed, please be patient until the installation is complete!!!
    8>.User must install the LED according to the specified rules.Otherwise some LED will not light.
    9>.Install complex components preferentially.
    10>.Make sure all components are in right direction and right place.
    11>.Check that all of the LED can be illuminated.
    12>.It is strongly recommended to read the installation manual before starting installation.
    13>.The default code inside the chip, the function is more abundant,So please do not update the code inside arbitrarily.

6.Installation Steps(Please be patient):
    1>.Step 1: Install 3pcs Copper pillars and M3 Screw on Acrylic Welding Template.
    2>.Step 2: Process 24pcs LED(Not all LED!!!).Curved LED’s shorter pin(negative pole) and form a right angle.Please be careful not to damage the LED.

    3>.Step 3: Install the LED ring.Put the already processed LED on acrylic template.Longer pin(Positive pole) outward. Shorter pin(Negative pole) interconnection.
    4>.Step 4: Use a soldering iron to fix LED the negative pole(Shorter pin).The soldering iron cannot touch the LED pins for a long time, otherwise it will damage the LED.

    5>.Step 5: Cut off excess pins.Just cut shorter pin!!!
    6>.Step 6: Install others 2pcs LED rings as the same method.

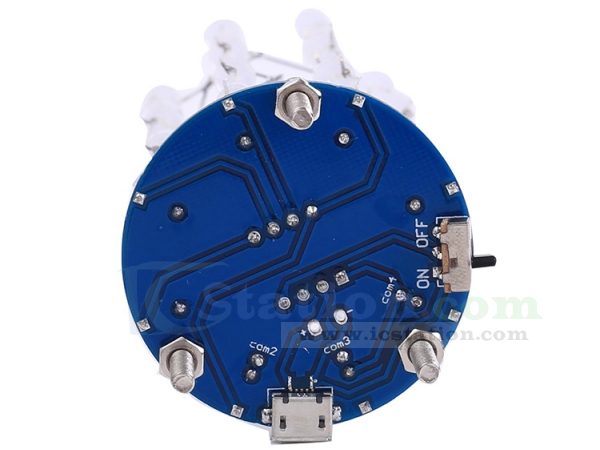

    7>.Step 7: Install 1pcs MINI USB Female Socket at J1.
    8>.Step 8: Install 1pcs Toggle Switch at S1.

    9>.Step 9: Install 1pcs DIP-8 STC15F104W at U1.There is a dot on one corner of the IC and there is a mark on PCB where the IC can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC.
    10>.Step 10: Install and fix the first layer LED ring.Note that the pins of these LED are not bent.

    11>.Step 11: Put some tin on the root of positive pole in order to fix next layer LED.
    12>.Step 12: Bend the next layer LED pins slightly in order to connect the 1st layer.

    13>.Step 13: Connect LED layer.Please be patient when connecting each layer.
    14>.Step 14:Connect the negative pole of the 2nd layer to COM2 by white wire. this layer of LED will flash normally if the power is turned on.

    15>.Step 15: Install the 3rd layer of LED on the PCB and this layer connect to COM3 by white wire.
    16>.Step 16: Install the 4th layer of LED on the PCB and this layer connect to COM4 by white wire.

    17>.Step 17: Connect to power supply and enjoy the effect.
