DIY Kit Music Audio Spectrum Indicator AUX MIC Peak Hold Voice Control Level Light LM3914 Electronic Soldering Practice Kits

GY21012-1
5 1
$9.99 $6.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$19.94-8%Bundled Price:$18.35

1.Introduction:
FED-301K is a Audio Spectrum Indicator DIY Kit. It can display in Red/Green according to the input audio signal from microphone or AUX audio socket.It can be used to display the intensity of audio.The number of LED displayed changes according to the intensity of the audio.


2.Feature:
1>.40pcs highlight red green dual color LED
2>.Mono dual LED light bar display
3>.Audio peak hold display
4>.Automatically switch between AUX and MIC audio inputs
5>.Adjustable LED flashing sensitivity
6>.Perfect simple circuit
7>.Automatic flashing
8>.DIY hand soldering

3.Parameter:
1>.Product Name:FED-301K Audio Spectrum Indicator DIY Kit
2>.Product Number:FED-301K
3>.Work Voltage:DC 5V or 6V-24V
4>.Work Current:75mA(Max)
5>.Power Type:3.5mm Power Socket or XH2.54-2P Socket
6>.Color:Red/Green LED
7>.Work Temperature:-40℃~85℃
8>.Work Humidity:5%~85%RH

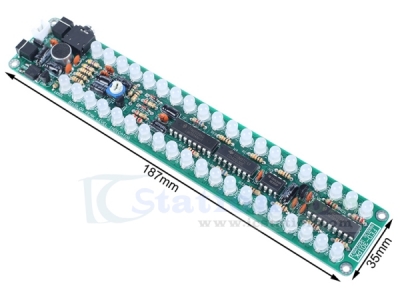

9>.Size(Installed):187*35*12mm

4.Parameter:

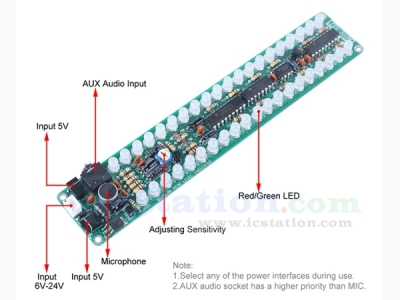

1>.There are three work power supply input terminals: two DC3.5mm socket and one XH2.54-2P white socket. User can use any one of them. Note: DC3.5mm socket need connect 5V and white socket need connect to DC 6V-24V.
2>.It can start working after connected power. The LED will start working when playing music into the microphone.
3>.Rotating potentiometer can be used to adjust the sensitivity of LED.
4>.AUX audio socket also can input audio signal and then LED will flashing with input audio signal.
5>.AUX audio socket has a higher priority than MIC, so it work with AUX audio if both AUX audio and MIC get signal.

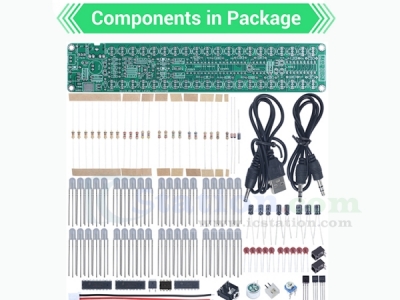

5.Component List & Diagram:


6. Installation Manual
