Photosensitive Sensor Module Photosensitive Resistor Light Detection Light Control Switch Module

Photosensitive Sensor Module Photosensitive Resistor Light Detection Light Control Switch Module

Item ID: GY18947

5 9

Price: ~~$9.99~~ $6.99

Time Remaining:

Quantity: - OR - - OR - Add to Wish List

Prev: Grayscale Sensor Photosensitive Color Recognizer Tracking Module for Smart Car Control
Next: Laser Receiver Sensor Module Non-modulator Tube Laser Sensor Module

1>.Description:

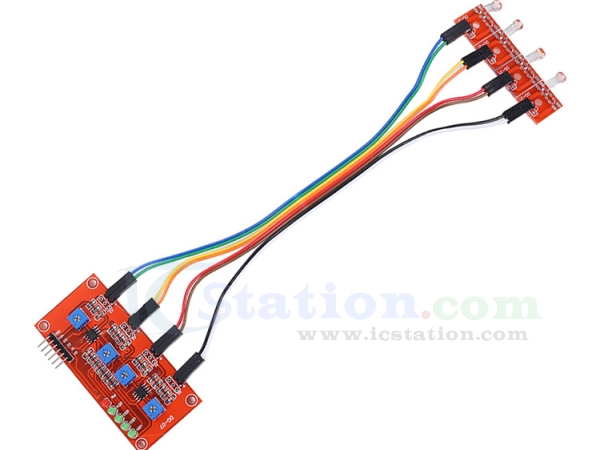

It is a photosensitive sensor module.It can be used for various light brightness detection,4-channel detection,and 4-channel simultaneous control.

2>.Feature:

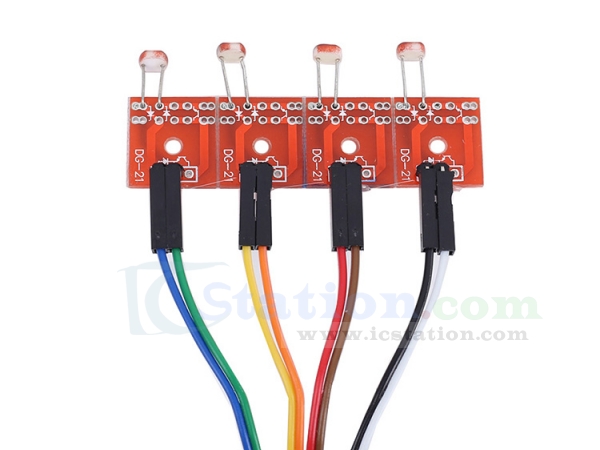

1.It uses a photosensitive resistance sensor.

2.Comparator output,clean signal,good waveform,strong driving ability,more than 15mA.

3.It is equipped with a potentiometer to adjust the sensitivity.

4.It uses wide voltage LM393 comparator.

3>.Parameter:

1.Product Name:Photosensitive Sensor Module

2.Working Voltage:DC 3.3V~12V

3.Output Form:Digital switch output (0 and 1)

4.Output Voltage:15mA(Min)

5.Work Temperature:-25℃~85℃

6.Work Humidity:5%~95%RH

7.Size:76*36*9mm

4>.Interface Description:

1.DO:1 way small board digital output interface (0 and 1)

2.D1:2-channel small board digital output interface (0 and 1)

3.D2:3-channel small board digital output interface (0 and 1)

4.D3:4-channel small board digital output interface (0 and 1)

5.VCC:External 3.3V-5V voltage

6.GND:external ground

5>.Instructions for Use:

1.The photoresistor module is most sensitive to ambient light and is generally used to detect the brightness of the ambient light.

2.The module outputs a high level when the ambient light brightness does not reach the set threshold,and when the ambient light brightness exceeds the set threshold,the module outputs a low level.

3.The output terminal can be directly connected with the single-chip microcomputer,and the high and low level can be detected by the single-chip microcomputer,thereby detecting the change of the light brightness of the environment.

4.The output terminal can directly drive our relay module,which can form a light control switch.

6>.Package:

1pcs Photosensitive Sensor Module
