60S Rotary Electronic Clock DIY Kit 4 Digits Digital Clock Colorful Flashing LED Light DIY Kits with Remote Control

4999
5 9
$11.95 $8.37
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$11.79-6%Bundled Price:$11.08

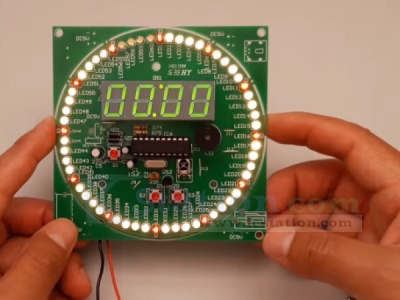

Function.
    1>. It is DIY kit. User need to weld it.
    2>. Clock display. Display hour and minutes minute under normal circumstances on 4-Bit digital tube.
    3>. Display seconds on LEDs.
    4>. Hour,minute and second can be adjusted independently.
    5>. Timekeeping function.
    6>. 2-Channel independent alarm.
    7>.  Seconds composed of 60 LED , the number of liters can be accurately synchronized with the number of seconds (this is the circuit is different from other rotating electronic clock's biggest feature), of which 48 white LED at the local White warm white bright light tube, sweet is the colorful night light.
          Each light-emitting diode is independent of the current limiting resistor to ensure long-term stable operation.

Size: 50mm×19mm

NOTE:
    1>. There are 13 short circuit pad marked J1 to J13. User can weld it by pin from other components such as metal film resistors or LEDs.
    2>. DC2 on PCB is standby power.
    3>. Input power is 4.5V-5.5V. If users don’t use standby power ,you don’t need weld VD1-2(1N5819) on PCB but need to weld pad which has marked “A”.

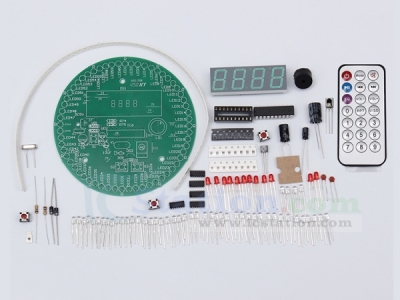

Component List:

Component

Number

Parameter

Quantity

Electrolytic capacitor

C1

10uF

1

Ceramic capacitor

C2,C3

30pF

2

0805 Capacitor

C4,C6-C12

104

8

Electrolytic capacitor

C5

220uF

1

Electrolytic capacitor

C13

100uF

1

1*2P Male pin

DC5V

2.54mm

1

4Bit digital tube

DS1



1

74HC595

IC1-IC5

SOP-16

5

20P IC Socket

IC6



1

STC11F04



DIP-20

1

3mm LED

LED5,LED10,LED15,LED20,

LED25,LED30,LED35,LED40,

LED45,LED50,LED55,LED60

Red

12

3mm LED



White

48

Buzzer

LS1



1

S8550

Q1-Q7

SOT-23

7

0805 Resistor

R1-R68 R80

470ohm

69

0805 Resistor

R69-R73,R76,R76,R77,R79

10K

8

Metal film Resistor

R74,R75

10K

2

0805 Resistor

R78

5.1K

1

6*6*5 Button

S1,S2,S3



3

HC-49S Crystal

Y1

12MHz

1

1N5819

VD1-2



1

PCB





1

DS18B20

DS2

TO-92

1

IR receiver

H1

HX1838

1

Infrared remote control





1



Button Debugging Instructions:
    Button S1: Reset button.
    Button S2: Mode selection button
    Button S3: Function control buttons


Mode(Display on first 2 Bits)

Function

Debug(Display on 2Bits from right)

Instruction

01

Display and Correction seconds

Correction seconds

It can be used as a stopwatch

02

Display and Correction minutes

Correction minutes



03

Display and Correction hours

Correction hours



04

Hourly timekeeping

0:Timekeeping at 00:00-23:00

1:Timekeeping at 7:00-22:00

2:Close Timekeeping



05

Adjust the time speed

0-99 Position. Default 50

The higher the number, the faster time



06

1-Channel Alarm Clock minutes adjustment

Display and adjustment



07

1-Channel Alarm Clock hours adjustment

Display and adjustment



08

2-Channel Alarm Clock minutes adjustment

Display and adjustment



09

2-Channel Alarm Clock hours adjustment

Display and adjustment





Infrared remote control instructions:
    1>. Button “0” :Display status 0. 60pcs LEDs display overlay.
    2>. Button “1”: Display status 1. 60pcs LEDs flash display.
    3>. Button “2”: Display status 2. 60pcs LEDs water lights display.
    4>. Button “U/SD”: Open/Close display 12 Hourly time LED(Red LED).
    5>. Button “Power”:Close all display.
    6>. Button “Mute”: Close all timekeeping function.
    7>. Button “EQ”:Display current temperature.
    8>. Button “Mode”:Enter debug status.

Infrared remote control debug instructions:
    1>. Button “0-9”: Enter status 0-9(Reference “Button Debugging Instructions”).
    2>. Button “Pre” and “Next”:Status plus 1 or minus 1. (Display on first 2 Bits)
    3>. Button “VOL-” and “VOL+”: Debug(Display on 2Bits from right)
    4>. Quit status and normal display.

1. Tested by ICStation's Outstanding Partner Muy Fácil De Hacer:








Learn More Details in the Video:

2. Tested by ICStation's Outstanding Partner Onlykit:


Learn More Details in the Video:

(The language is Russian)
