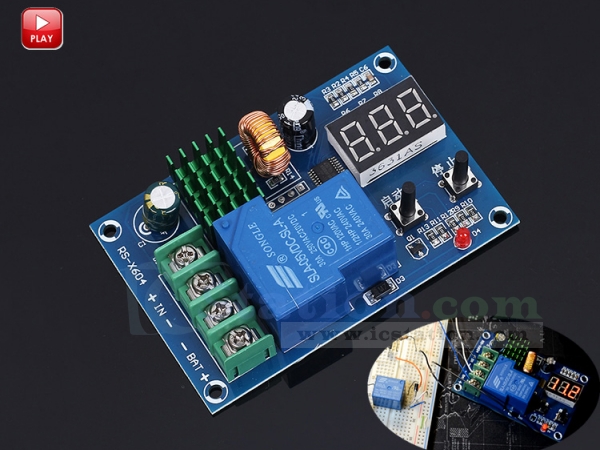

Undervoltage Control Module Over-discharge Protection Switch Battery Charge Controller Module for 6V-60V Battery

13148
5 9
$9.75 $6.83 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Parameters:

No. Parameter Value
1 Product name NC battery charging control module
2 Product model RX-X604
3 Input voltage DC 6-60V
4 Voltage error ± 0.1V
5 Display precision 0.1V
6 Control precision 0.1V
7 Scope of application 6-60V storage battery
8 Product size About (L)81mm* (W)54mm* (H)22mm
9 Product weight 58g
10 Product packaging Antistatic bag


Application:
1>. The new energy battery of solar photovoltaic cells.
2>. Battery and electric car battery.
3>. Lead-acid batteries, nickel-hydrogen batteries, nickel lithium batteries, lithium ion batteries, polymer batteries, etc.
4>. All kinds of generators to charge the battery.

Application Example:
1>. Generator:



The generator charge to the battery, and when the battery voltage reaches the stop setting value, the relay will disconnect and stop charging.

2>. Photovoltaic:



The control board acts as a circuit breaker, which control charging start and stop. Extending battery life.

Setting Instruction:


In the setting of numerical normality (digital tube flicker), start button to boost the voltage, stop the button to reduce the voltage.
1>. Set start voltage
Under normal display voltage, press the start button to display the starting charging voltage. Long press the start button to stop digital tube flickering. Set the start charging voltage value by start and stop button.
2>. Set stop voltage
Under normal display voltage, press the stop button to display the stop charging voltage. Long press the stop button to stop digital tube flickering. Set the stop charging voltage value by start and stop button.
3>. Restoration of original plant Settings:
Under normal power, hold the start and stop buttons at the same time, and the digital tube displays 888, that is to restore the original factory setting success.
Note:
The remark“启动”of the board means start; “停止”means stop.


Working Priciple:

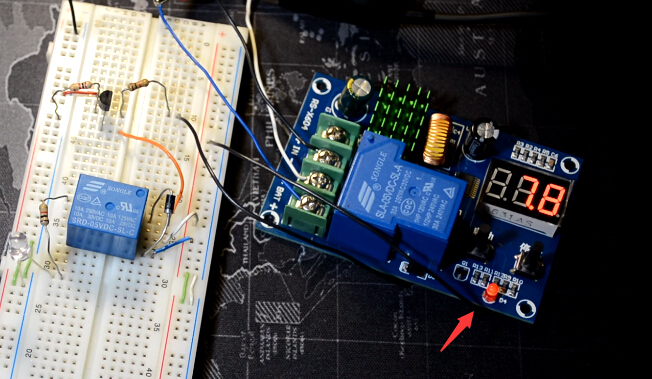

Tested by ICStation's Outstanding Partner ElectroTodos:
