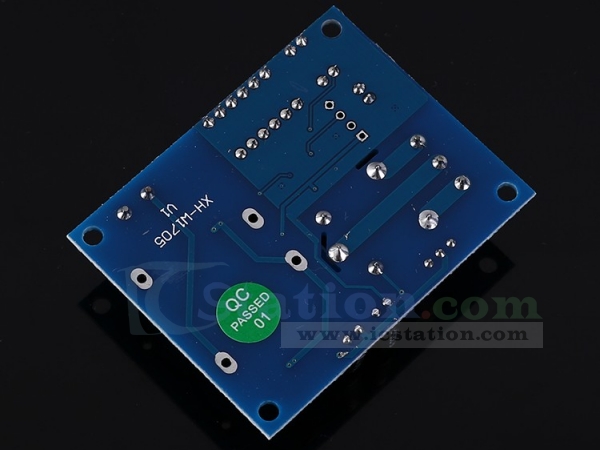

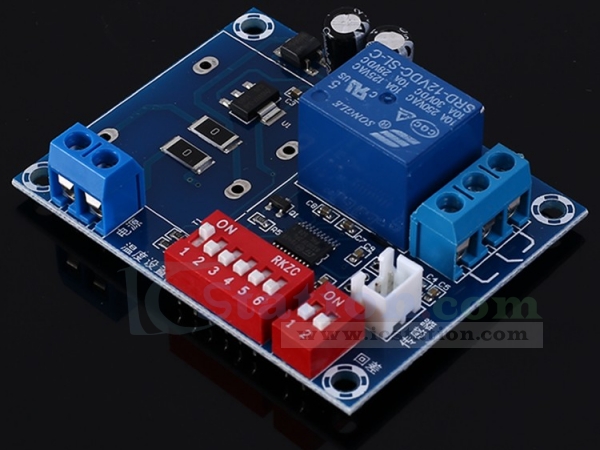

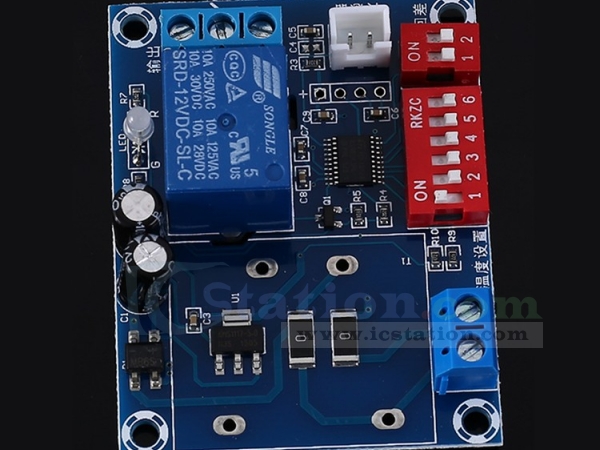

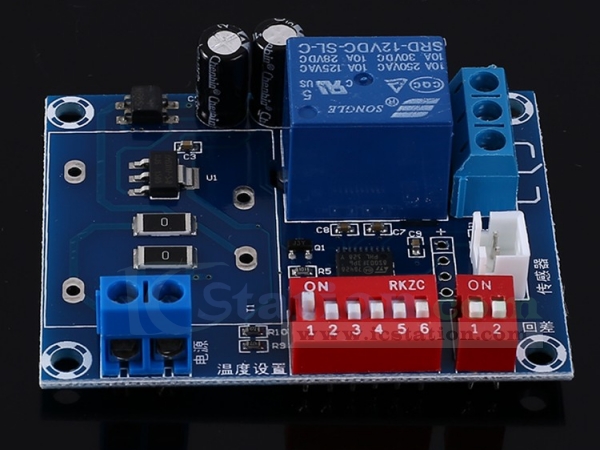

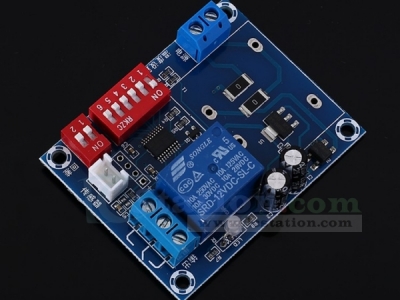

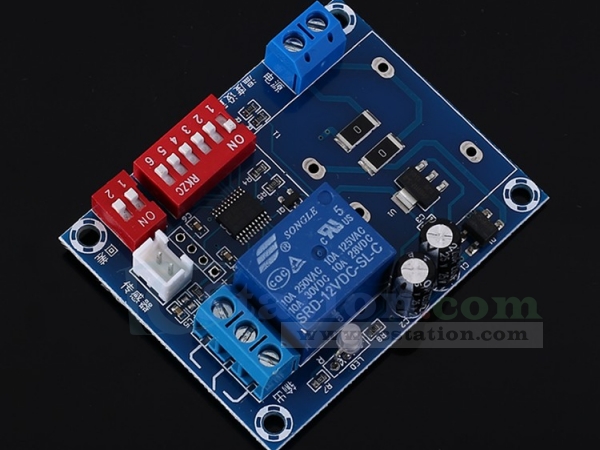

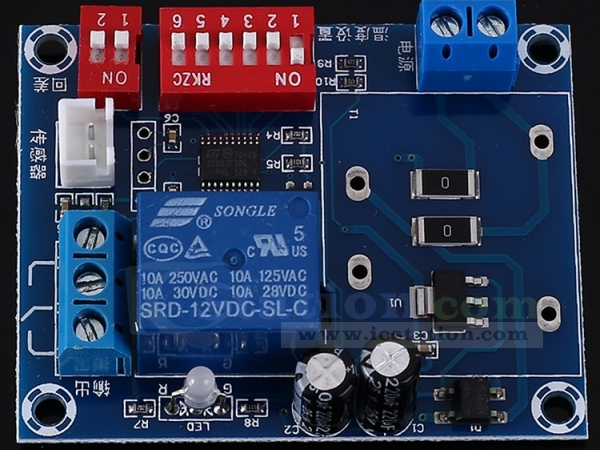

XH-W1705 Adjustable Temperature Controller DC 12V NTC 10K Sensor -25-100℃ Switch Control

14290
5 9
$7.99 $5.59
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Parameter:
  1>.Model:XH-W1705
  2>.Work voltage:DC 12V
  3>.Temperature range:-26℃~100℃
  4>.Precision:2℃
  5>.Sensor:NTC 10K B3950
  6>.Output type:Relay(Can not output voltage)
  7>.Load voltage:AC 250V / DC 30V (Max)
  8>.Operating Temperature:-20℃~85℃
  9>.Operating Humidity:5%~95%RH
  10>.Module Size:60*47*19mm

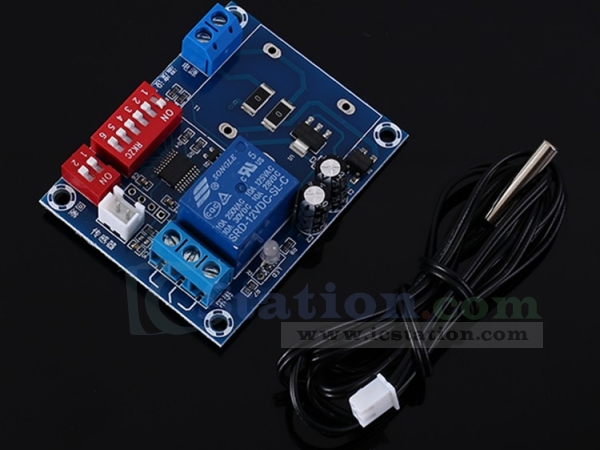

  11>.Sensor length:1meter

Parameter Setting:
  1>.It can work in heating mode and cooling mode.
  2>.The work mode can not be set.It is selected by wiring diagram as showning.
  3>.Heating mode:Connect device between NO and COM terminal.
  4>.Cooling mode:Connect device between NC and COM terminal.
  5>.It needs set two parameter:Minimum Temperature and Return Temperature.
  6>.Minimum Temperature:Minimum temperature value in the temperature range.
  7>.Minimum Temperature Value:The temperature range is -26℃~100℃.The minimum setting value is 2℃ each time.It set by six toggle switches at left.
  8>.Return Temperature:The value between the highest temperature and the lowest temperature.
  9>.Return Temperature Value:It just can select four value:2℃/5℃/10℃/15℃.It set by two toggle switches at right.

Example:
  1>.Heating mode:Control the water temperature.Stop heating when the temperature reaches 80℃; Start heating when the temperature drops to 70℃.
    1.1>.The temperature range is 70℃~80℃.So the Minimum Temperature Value is 70℃ and Return Temperature Value is 10℃
    1.2>.Set Minimum Temperature Value by left toggle switches.Refer to the correspondence table and set toggle switches as 110000.
    1.3>.Set Return Temperature Value by right toggle switches.Refer to the correspondence table and set toggle switches as 10.

2>.Cooling mode:Control room temperature.Stop cooling when the temperature drops to 20℃; Start cooling when the temperature reach to 30℃.
    2.1>.The temperature range is 20℃~30℃.So the Minimum Temperature Value is 20℃ and Return Temperature Value is 10℃
    2.2>.Set Minimum Temperature Value by left toggle switches.Refer to the correspondence table and set toggle switches as 010111.
    2.3>.Set Return Temperature Value by right toggle switches.Refer to the correspondence table and set toggle switches as 10.
