DIY Kit FM MW SW Wireless Radio Receiver DC 3.7V Clock Alarm 2W Stereo Dual Channel Radio Kit with Acrylic Case

GY20923-1
5 9
$36.99 $25.89
Quantity3+5+10+
Price$25.50$25.10$24.70
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
  It is a FM MW SW Wireless Radio Receiver Module with built-in Mono dual channel 4ohm 5W Amplifier so that it can connect speaker directly, user just need connect work voltage and speaker or headset.

  It is also a high-sensitivity digital clock controlled radio set that integrates FM, AM and SW three bands. It adopts a modular structure of splicing installation, which is very suitable for radio electronics enthusiasts, electronic DIY enthusiasts, beginners, primary and secondary school students to exercise their hands-on ability.

  The installation process can be completed only by preparing a screwdriver and referring to the installation manual. It Doesn't Require Soldering. A high sensitivity digital radio can be assembled without using an electric soldering iron.  If you are looking for the radio electronic kits, just take it, no need to worry whether you will mess it up even you are a beginner.

Installation Manual:



2.Features:
 【
FM/MW/SW Frequency: It is a radio set integrating FM, MW, SW within different frequency ranges. FM is 87-108MHz, MW is 522-1620KHz, SW is 4.75-21.85MHz. Note: MW adopts AM mode. Search and automatically save stations. Continue to play the last radio station when turn ON again.

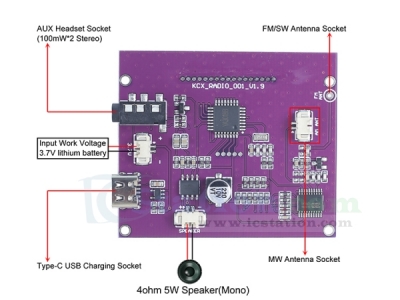

Mono 5W Amplifier: Built-in power amplifier which can drive mono 4ohm 5W speakers directly and the sound is very clear. User also can connect headset from AUX audio output socket.

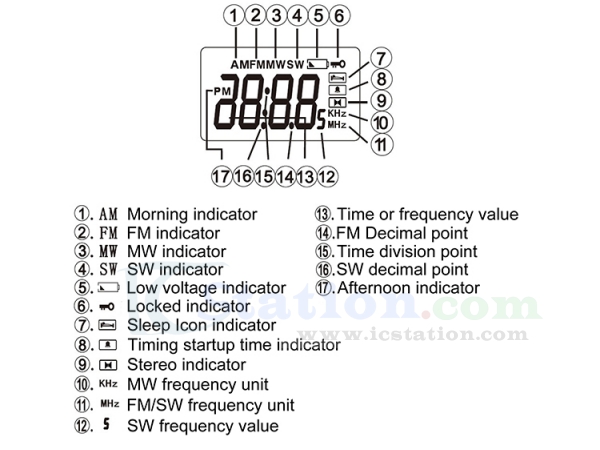

Time/Automatic Startup: Clock and radio functions can be switched. The time can be calibrated and the timing boot time can be set.

Rechargeable: It is powered by 3.7v polymer lithium battery (included) which can be used as outdoor mobile speaker. Built-in charging module is also more convenient for battery charging. At the same time, the power indicator shows the battery capacity in real time.Backlight enters power-saving mode after 10 seconds. (Please note: batteries need to be removed when shipped to Europe due to the current shipping company's policy. We will add a little gift in the order as instead.)

3.Parameters:
1>.Product name:FM MW SW Wireless Radio Receiver DIY Kit
2>.Model:KCX_RADIO
3>.Work Voltage:DC 3.7V
4>.Work Current:<500mA
5>.Standby current: <20uA
6>.Display Backlight:Amber
7>.FM Frequency Range:87MHz-108MHz(Accuracy 0.1MHz)
8>.MW Frequency Range:522KHz-1620KHz(Accuracy 9KHz)
9>.SW Frequency Range:4.75MHz-21.85MHz(Accuracy 0.5MHz)
10>.FM Noise limiting sensitivity:30dB =< 8dBu
11>.MW Noise limiting sensitivity:26dB =< 60dBu
12>.SW Noise limiting sensitivity:26dB =< 32dB
13>.FM SNR:98MHz >= 50dB
14>.MW SNR:1000KHz >= 40dB
15>.Output power(Speaker):4ohm 5W
16>.Output power(Headset):100mW*2
17>.Maximum output distortion:<10%
18>.Size(Installed):108x65x30mm
